Product Details

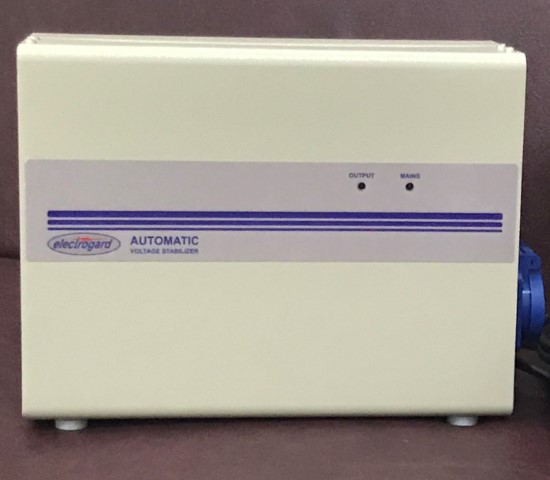

Product name
WHT-230ER
IMD-PQS Code
E007-007
Status
Prequalified
Date of acceptance
26 Apr 2022
Appliance type
E007
Product description
Single Phase Voltage Stabiliser - Extended Range
Manufacturer
SAGAR ELECTRICALS
Manufacturer Reference
WHT-230ER
Country of Manufacture
India
Address
14A Industrial Estate, Jagadhri Road, Ambala Cantt, Haryana 133001, India
India
India
Telephone
+91 171 2699445
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Additional
Nominal Input Frequency (Hz)
50.00
Nominal Input Voltage (V)
230.00
Nominal Output Frequency (Hz)
50.00
Nominal Output Voltage (V)
230.00
Input frequency regulation range (Hz)
50-60
Input Voltage Regulation Range (V)
110-274
Output Current (A)
4.40
Short Circuit Protection Type
MCB Type C
Overload Protection Type
CT actuated electronic shut-down with auto reset after 3-6 minutes
Overvoltage Endurance Electrical Withstand (V)
415.00
Impulsive Transient Protection (kA)
8.00
Maximum Rated Ambient Temp (°C)
43.00
Minimum Rated Ambient Temp (°C)
-5.00
External dimensions height (mm)
129.00
External dimensions length (mm)
325.00
External dimensions width (mm)
238.00
Power Lead Length (m)
1.50
Mode of operation
Other
Mode of operation (Other)
Servo-Induction Mechanical tap-changing
Control Panel Display
Indicators for Mains Present :RED & Output Present: Green
Display medium
LED
CE marking
Yes
Efficiency Percentage (%)
0.90
Price and shipping
Shipping weight (kg)
9.50
Quality standard
Specification Reference
Applicable PQS specification: E007/VS01.5
Applicable PQS VP(s): E007/VS01-VP.5
Applicable PQS VP(s): E007/VS01-VP.5
Product Sites
SAGAR ELECTRICALS
14A Industrial Estate, Jagadhri Road, Ambala Cantt, Haryana 133001, India
India
Document Details
Input_voltage_regulation_range_v: 110-274 V
Output_voltage_accuracy_pct: 230V +10% or -15%
