E007-001

SF - Immunization Devices
Download file
Product Details
Product name

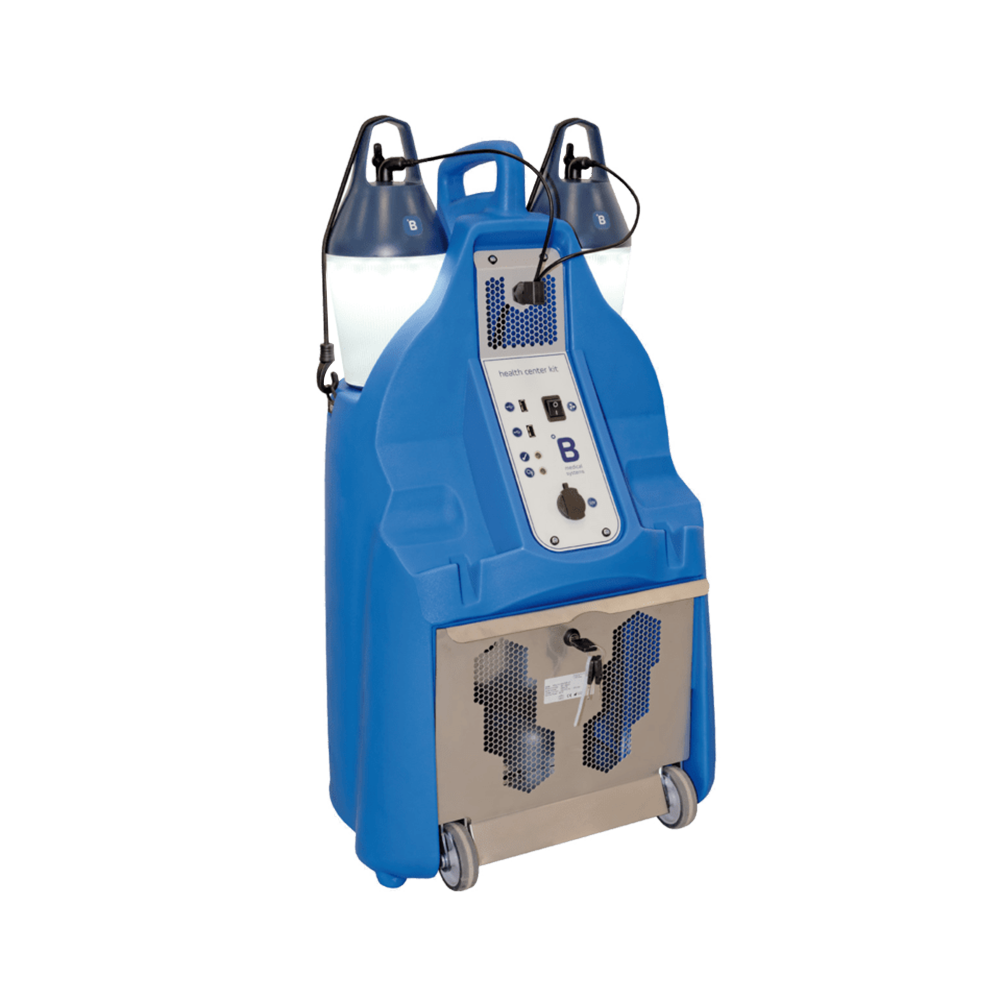

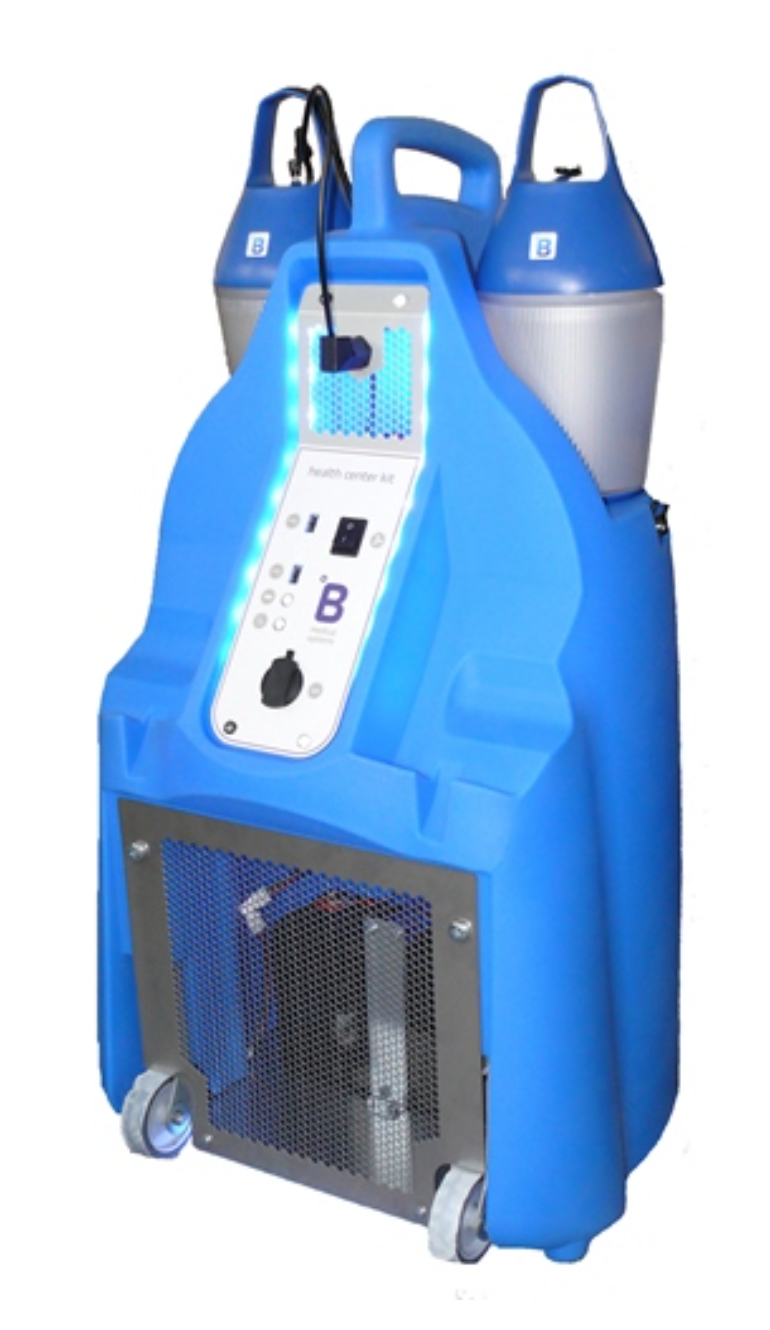

Health Centre Kit
IMD-PQS Code
E007-001
Status
Prequalified
Date of acceptance
13 Jun 2018
Appliance type
E007
Product description
Energy Harvest Control
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
Health Centre Kit
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Website address
Valid until
31 May 2026
Specifications

Product specifications - Main

Climate zone
Hot
Nominal Power (W)
55.00
Solar radiation ref period (kWh/m2/day)
3.50
Min Average Daily Energy (Wh)
450.00
Max Energy on Battery (Wh)
120.00

Product specifications - Power outlets

Cooling Appliance Max (V)
47.00
Cooling Appliance Nominal (V)
47.00
Cooling Appliance Number of Port
1.00
USB Ports Max (A)
1.00
USB Ports Nominal (A)
1.00
USB ports Number of ports
2.00
Car Socket Maximum (V)
14.70
Car socket Nominal (V)
12.60
Car socket ports Number of ports
1.00
Fan Connector
Included in load
Fan Connector Max (V)
14.70
Fan Connector Nominal (V)
12.60
Fan connector ports Number of ports
1.00
LED lights portable
Included in load
Harvesting LED Lights Max (V)
18.00
Harvesting LED Lights Nominal (V)
17.00
Harvesting LED Lights Number of ports
2.00
Mode of operation
Other

Product specifications - Available energy harvest

Connected load 1
2 xLED + fan
Run Time At Night 1 (hours)
4.00
Run Time per Day 1 (hours)
16.00
Comments
Solar panel voltage: 47 V Max

Harvesting_LED_lights_nominal: yes
Dust_and_Water_Ingress_Protection: 54
Input voltage regulation range V: 0
Input frequency regulation range (Hz): 0
Mode of operation: Servo-Induction Mechanical tap-changing

Price and shipping

Shipping volume (m3)
0.433
Shipping weight (kg)
44.00
Price
> 100 units 1281 Euros
Year of base price
2025
Incoterms
EXW

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
CE marking; ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: EHC01.1
Applicable PQS VP(s): EHC01-VP.1

Verification

Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO 17-003
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
