SF - Immunization Devices
Download file
Product Details
Product name

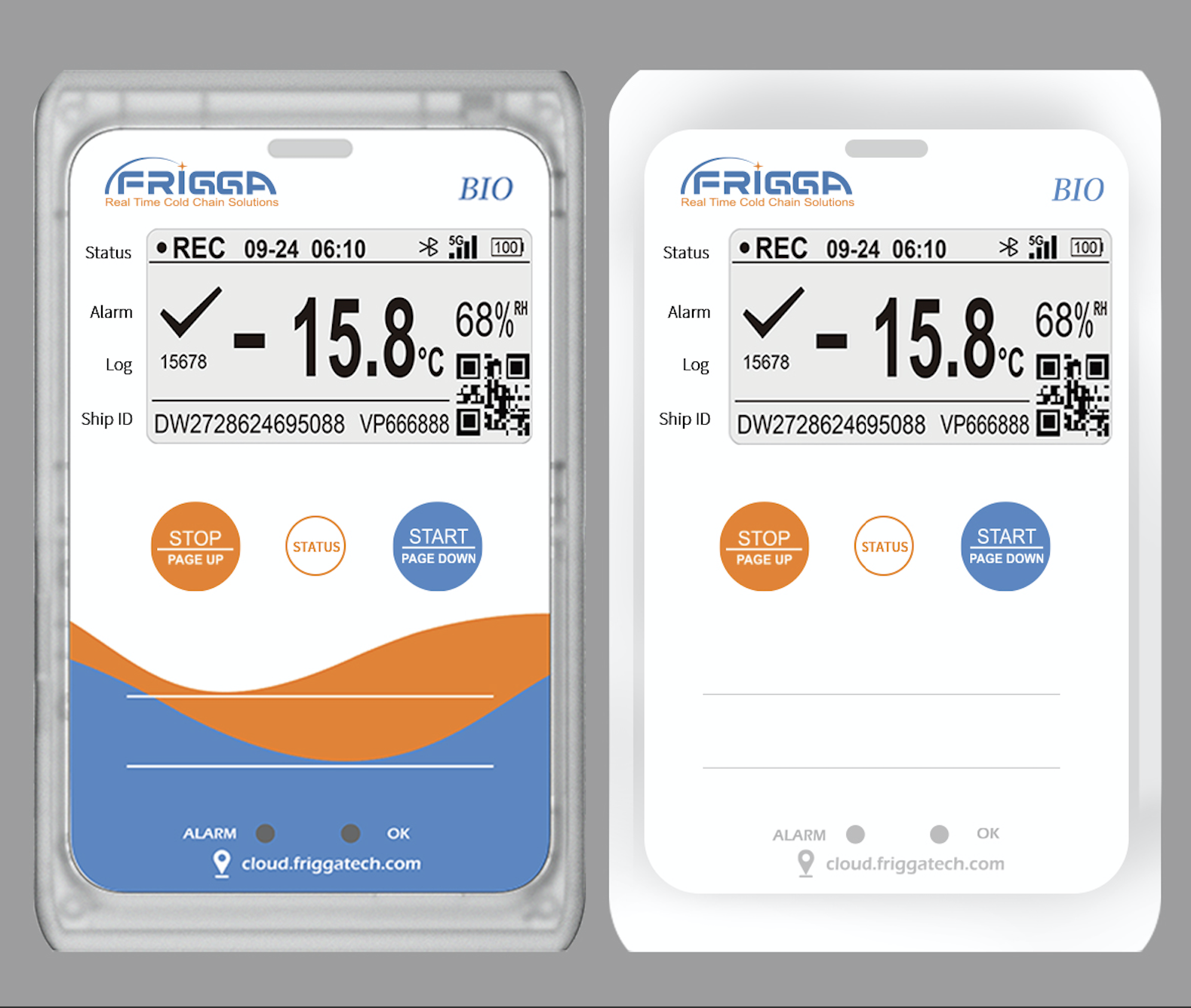

Frigga V5 Plus
IMD-PQS Code
E006-103
Status
Prequalified
Date of acceptance
16 Dec 2025
Appliance type
E003
Product description
30 day electronic temperature logger
Manufacturer
Shanghai Dewav IoT Technology Co. , Ltd.
Manufacturer Reference
Frigga V5 Plus
Country of Manufacture
China
Address
No.3 Building, Lane 739 of Kangwei Road, Pudong New Area
Shanghai
Shanghai
China
Shanghai
Shanghai
China
Telephone
+86 21 58820022
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum logging intervals (mins)
60.00
Maximum recording time (days)
120.00
Sensor type(s)
Built-in sensor
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
7.00
External dimensions height (mm)
105.00
External dimensions length (mm)
65.00
External dimensions width (mm)
169.00
Activation mechanism
Automatic/Manual Start
VVM Type
Global
Material
Transparent Polycarbonate with USB plug
and water-proof membrane
and water-proof membrane
Fixing mechanism
Plastic
Associated system components
Metal dome, PET front cover, Polycarbonate back cover
CE marking
Yes
Time to endpoint at 55°C (days)
9.00
Time to endpoint at 45°C (days)
9.00
Time to endpoint at 37°C (days)
9.00
Time to endpoint at 25°C (days)
9.00
Time to endpoint at 5°C (days)
9.00
Minimum working temperature (°C)
-30.00
Maximum working temperature (°C)
70.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
Rechargeable Li-ion & Non-Li Battery
Battery shelf life (year)
1
Activated battery life
2-3 years
Alarm function(s)
Yes
Alarm type
Visual;Other
Alarm Type (Other)
Real time alerts via platform, device, and APP.
Memory size (Mb)
64.0000000000
Memory capacity (readings)
28800.00
Programmability
Other
Programmability (Other)
Factory programmed, user programmability supported
User interface
LCD display
Display medium
E Ink screen
Recording medium
Cyclic recording
Price and shipping
Shipping weight per carton(kg)
10,55
Shipping volume (m3)
0.03
Weight per Package (Kg)
15.0000
Units per package
10.00
Weight per Unit (Kg)
130.0000
Minimum order
1.00
Incoterms
DAP
Price 1
1~10 units：219 USD
Price 2
10~100 Units: 199 USD
Price 3
＞100 units : on request to manufacturer
Year of base price
2025
Quality standard
Quality Standard
ISO 9001: 2000;ISO 17025;Other
Quality standard (Other)
FCC, CE, RTCA/DO-160G, UN38.3, RoHS, WEEE
Specification Reference
Applicable PQS specification: E006/TR06.4
Applicable PQS VP(s): E006/TR06-VP.4
Applicable PQS VP(s): E006/TR06-VP.4
Verification
Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-25-0012
Product Sites
Shanghai Dewav IoT Technology Co. , Ltd.
No.3 Building, Lane 739 of Kangwei Road, Pudong New Area
Shanghai,
Shanghai
201315
China
-Full visibility of Temp, Humidity, Light, Acceleration (Shock), Tilt. Location, Motion
-Real time alerts for fast intervention
-16.9mm slim design with 24/7 always-on LCD
-5 mode positioning for <10m location accuracy
-Rechargeable non-replaceable battery
Verification laboratory: China Testing & Inspection Institute for Household Electric Appliances
Maximum sensor lead length (metres): Not Applicable, sensor is internal
Maximum number of sensor channels: Temp., Humidity, Light, Acceleration (Shock), Tilt, Location, Motion
Accuracy (+/- °C): ±0.5°C (-20°C to +20°C); ±1°C for other range
Incoterms: DAP & DDP
