Product Details
Product name

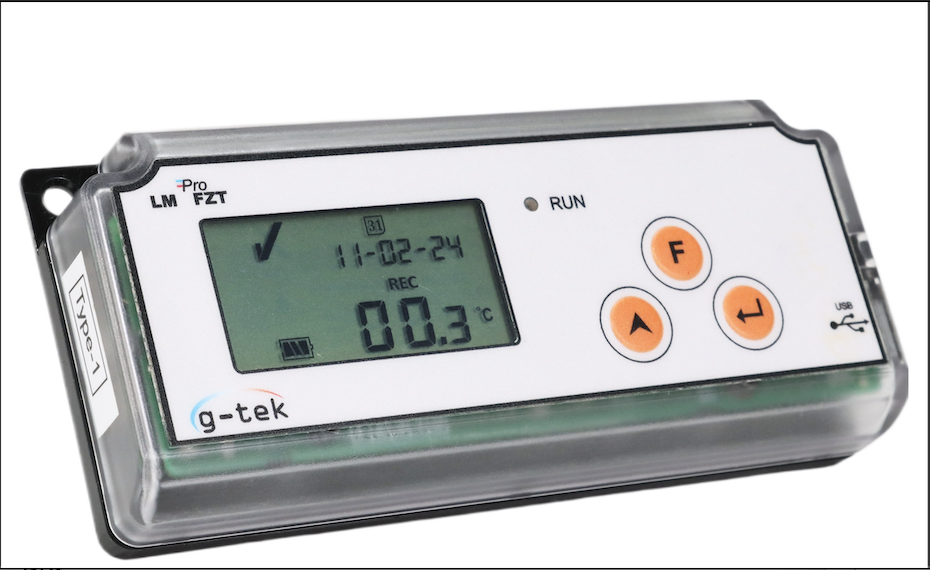

LMPro FZT (Type-1)
IMD-PQS Code
E006-101
Status
Prequalified
Date of acceptance
28 Mar 2025
Manufacturer
G-Tek Corporation Private Limited
Manufacturer Reference
LMPro FZT (Type-1)
Country of Manufacture
India
Address
Gunaji House”, Plot No. 25/1, Besides Status Bungalow, Padra Road,
Vadodara
Gujarat
India
Vadodara
Gujarat
India
Telephone
+91 98 245 22295
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum logging intervals (mins)
4.00
Maximum recording time (days)
60.00
Sensor type(s)
Integrated Thermistor 10K NTC
Maximum number of sensor channels
1.00
External dimensions height (mm)
2.20
External dimensions length (mm)
12.80
External dimensions width (mm)
6.00
Activation mechanism
Device activation by long press of “Up” key for about 2 seconds. Please refer to the operating manual for more details.
Material
Polycarbonate plastic; non-breakable, non- corrodible housing
Fixing mechanism
Screw mounted (2 holes (M4 screw) provided on enclosure)
Associated system components
USB cable and Device calibration certificate
CE marking
Compliant
Minimum working temperature (°C)
-30.00
Maximum working temperature (°C)
60.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
3.0 V 950 mAH; CR2477 Panasonic (or Equivalent) Lithium Coin Cell Battery
Battery shelf life (year)
5
Activated battery life
5
Alarm function(s)
Visual:
In case of high/low breach, flashing temperature reading on display along with ▲or ▼ arrow for high or low alarm with bell symbol.
Alarm day markers for last 30 days on LCD display.
In case of high/low breach, flashing temperature reading on display along with ▲or ▼ arrow for high or low alarm with bell symbol.
Alarm day markers for last 30 days on LCD display.
Alarm type
Visual
Memory capacity (readings)
17280.00
Programmability
Factory Programmed
User interface
Keyboard interface
Display medium
LCD display
Recording medium
Flash Memory
Price and shipping
Shipping volume (m3)
0.049
Weight per Package (Kg)
9.0000
Units per package
40.00
Weight per Unit (Kg)
0.1000
Minimum order
1.00
Incoterms
EXW
Price 1
For 1-100 units US$65 per unit
Price 2
For 101-250 units: Consult Factory
Price 3
For more than 250 units: Consult Factory
Year of base price
2025
Quality standard
Quality Standard
Other
Quality standard (Other)
IS0 9001:2015; ISO 14001:2015
Specification Reference
E006/TR06.4
Verification
Verification Laboratory
0013X00004Ml8OlQAJ
Verification Report Reference
PQS verification protocol E006/TR06.VP.4
Lisaline Lifescience Technologies Pvt. Ltd., PQS report no.: LLTPL/TL/2024-08/01 (Issued date: 30th August 2024)
Lisaline Lifescience Technologies Pvt. Ltd., PQS report no.: LLTPL/TL/2024-08/01 (Issued date: 30th August 2024)
Document Details
1. Manual Start, by pressing “Up” key for about 2 seconds.
2. Start delay of 30 minutes
3. Once started device cannot be stopped
4. Device can be PAUSED to exclude data from alarm, min/max statistics for 15 minutes while recording will continues, auto resume from PAUSE after 15 minutes
5. Direct PDF/CSV Summary Report of maximum 60 days can be generated by connecting the device with PC using USB2.0 Type C data cable
6. User can view last 30 days of history data on the device display using keyboard
7. Total of 60 days of storage
8. Memory Roll-over after 60 days of storage
9. Multi digit, character LCD display to indicate various functions, parameters and values
10. Display dimension: 22 x 42 mm; 0.35” HTN Reflective
11. Display Auto-off; after 20 seconds of non-access of Keyboard
12. LED status indicator for RUN mode
13. Three front panel keys to perform various functions
For more details refer to the operating manual and quick start guide
Additional product information:
Accuracy: ± 0.5 °C for the range -30 °C to + 30 °C ± 0.7 °C otherwise.
Memory size: 30 days overview on the display/ PDF report up to 60 days at store interval of 5 minutes.
