Product Details
Product name
VaxTag +
IMD-PQS Code
E006-099
Status
Prequalified
Date of acceptance
07 Oct 2024
Product description
30 day temperature logger
Manufacturer
LogTag North America Inc.
Manufacturer Reference
VaxTag +
Country of Manufacture
Vietnam
Address
Unit 10, 10 Millpond Drive
Lafayette
New Jersey
United States of America
Lafayette
New Jersey
United States of America
Telephone
+64 9 448 2311
Website address
Valid until
31 May 2025
Specifications
Product specifications - Main
Mode of operation
Electronic
Maximum logging intervals (mins)
1.00
External dimensions height (mm)
10.70
External dimensions length (mm)
8.60
External dimensions width (mm)
54.50
Material
Polycarbonate
Minimum working temperature (°C)
-30.00
Maximum working temperature (°C)
65.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
Lithium Button Cell
Battery shelf life (year)
4
Activated battery life
24
Alarm type
Visual
Memory capacity (readings)
16129.00
Programmability
Factory Programmed
User interface
Push button operation
Display medium
Built-in LCD
Price and shipping
Shipping volume (m3)
0.0051
Units per package
50.00
Minimum order
20.00
Incoterms
EXW
Price 1
20- 99 unit:40.80 USD
Price 2
> 100 unit:on request to manufacturer
Year of base price
2024
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Verification
Verification Laboratory
0013X00004Ml8OaQAJ
Verification Report Reference
A66604, Issue1
Document Details

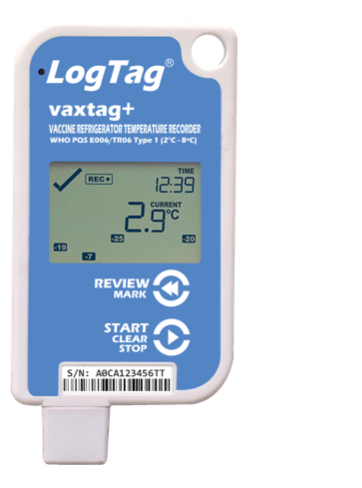

LogTag® vaxtag+ is an advanced temperature monitoring device specifically designed for the safe
storage of vaccines in healthcare facilities and intermediate storage areas. Fully compliant with World Health Organization (WHO) standards under PQS specification E006/TR06.4, the vaxtag+ monitors storage conditions to safeguard vaccine integrity. The vaxtag+ stores up to 16,129 temperature readings to ensure the continuous monitoring for up to 67 days using the 6 minute logging interval.
Default configuration is Type 1 (as per TR06.4); other configurations are also possible.
Users can easily inspect violation history directly on the display or view charts and statistics, downloading the on-board PDF via the built-in USB connector. The data is compatible with the free LogTag Analyzer software, which allows users to visualize data in various formats, facilitating effective data management and archiving. The LCD display provides a clear view of current and historical temperature readings, including a 30-day summary of the highest and lowest temperatures.
The vaxtag+ is also supported by LogTag Online, LogTag's 21CFRPart11 compliant data management system. Trust the reliability of the LogTag® vaxtag+ to maintain the safety and efficacy of your vaccination programs.
