Product Details
Product name
LM Pro IN031
IMD-PQS Code
E006-092
Status
Prequalified
Date of acceptance
15 May 2023
Appliance type
E006
Product description

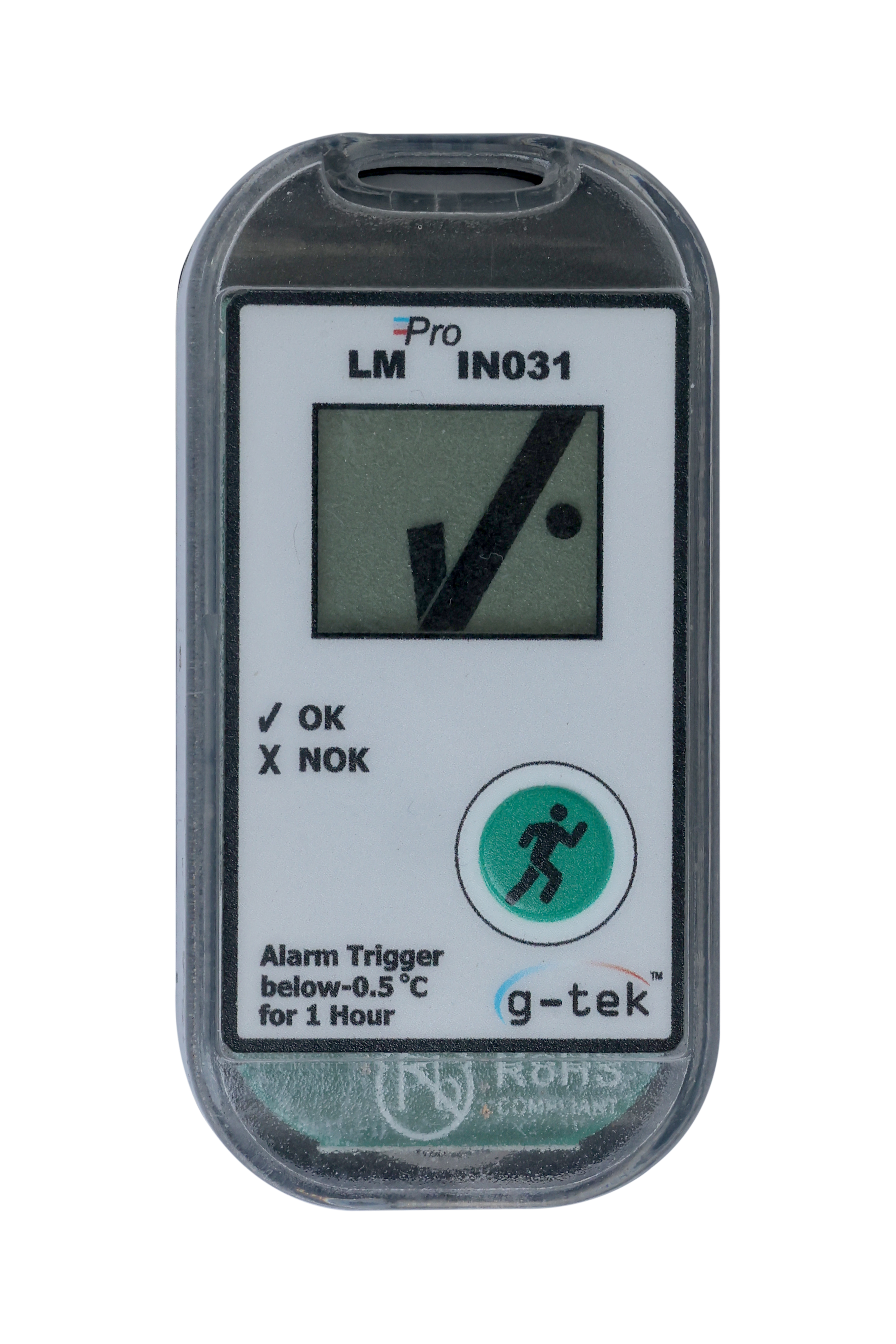

Irreversible Freeze Indicator
Manufacturer
G-Tek Corporation Private Limited
Manufacturer Reference
LM Pro IN031
Country of Manufacture
India
Address
Gunaji House”, Plot No. 25/1, Besides Status Bungalow, Padra Road,
Vadodara
Gujarat
India
Vadodara
Gujarat
India
Telephone
+91 98 245 22295
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
External dimensions height (mm)
13.00
External dimensions length (mm)
70.00
External dimensions width (mm)
35.00
Material
Polycarbonate plastic
Fixing mechanism
None
CE marking
Yes
Minimum working temperature (°C)
-20.00
Maximum working temperature (°C)
50.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
Lithium Coin Cell Battery
Battery shelf life (year)
3
Activated battery life
42 months
Alarm type
NA
Memory capacity (readings)
38000.00
User interface
LCD
Display medium
LCD
Recording medium
Electronic
Price and shipping
Shipping volume (m3)
0.0072
Weight per Package (Kg)
0.0300
Weight per Unit (Kg)
5.0000
Minimum order
100.00
Incoterms
EXW
Price 1
$6 for 100 units
Year of base price
2023
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Product Sites
G-Tek Corporation Private Limited
Gunaji House”, Plot No. 25/1, Besides Status Bungalow, Padra Road,
Vadodara,
Gujarat
391410
India
Document Details
(2) Activate the device by long press of key for 10 seconds.
(3) Ensure the display Shows a check mark/tick mark before placing it with vaccine
(4) If the device is exposed to temperature of -0.5 °C, ± 0.5 °C for 60 minutes ± 5 minutes (or
as specified for the TYPE A/B/C), alarm is activated and display shows "X". This is
irreversible.
(5) For more details refer to the Quick start guide.
Memory size: 38,000 data points
