Product Details
Product name

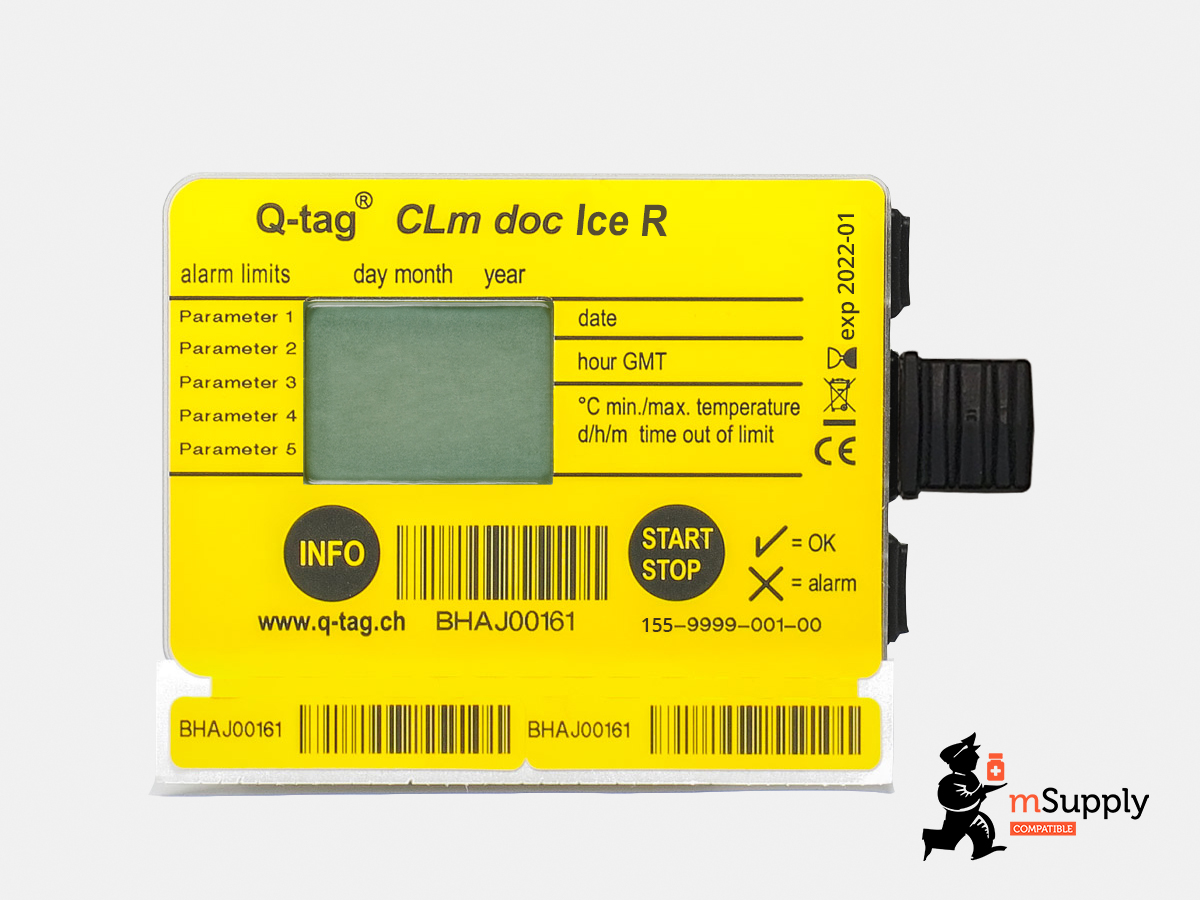

Q-tag CLm doc Ice R
IMD-PQS Code
E006-090
Status
Prequalified
Date of acceptance
17 Feb 2023
Appliance type
E006
Product description
Electronic Shipping Indicator
Manufacturer
Berlinger & Co. AG
Manufacturer Reference
Q-tag CLm doc Ice R
Country of Manufacture
Switzerland
Address
Mitteldorfstrasse 2,
Ganterschwil
Sankt Gallen
Switzerland
Ganterschwil
Sankt Gallen
Switzerland
Telephone
+41 (71) 982 88 11
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum logging intervals (mins)
99.00
Maximum recording time (days)
40.00
Sensor type(s)
electronic
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
0.00
External dimensions height (mm)
20.00
External dimensions length (mm)
94.00
External dimensions width (mm)
54.00
Activation mechanism
Button activated
Material
plastic housing
Fixing mechanism
None
CE marking
Yes
Minimum working temperature (°C)
-40.00
Maximum working temperature (°C)
60.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.80
Power source
Non-replaceable battery
Battery shelf life (year)
1 1/2 year
Activated battery life
1.3 months
Alarm type
Visual
Memory capacity (readings)
38000.00
Programmability
Factory Programmed
User interface
LCD DISPLAY
Display medium
LCD Display
Recording medium
Not applicable
Price and shipping
Shipping volume (m3)
0.0045
Weight per Package (Kg)
0.0540
Units per package
25.00
Weight per Unit (Kg)
1.6800
Minimum order
20.00
Incoterms
EXW
Price 1
122.4
Year of base price
2023
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
0013X00004Ml8OmQAJ
Verification Report Reference
VA15-00564
Product Sites
Berlinger & Co. AG
Mitteldorfstrasse 2,
Ganterschwil,
Sankt Gallen
CH-9608
Switzerland
Document Details
For reoccuring shipments between –40°C to +60°C with a large memory capacity of 38,000 measurements (reusable). When connected to a computer, it automatically creates a PDF and ASCII file with all measured temperatures and time data.
Accessories:
- Data management with Berlinger Smartview
- Data verification with Berlinger Verifier
Calibration traceable to ILAC recognised international standard (e.g. SAS, NIST) upon request
Open mSupply compatible (validated)
Discounts apply for large orders
Accuracy: +/- 0.8°C from –40°C to +60°C
