Product Details
Product name
SmartMonitor SITE L
IMD-PQS Code
E006-087
Status
Prequalified
Date of acceptance
29 Jan 2023
Appliance type
E006
Product description
Remote Temperature Monitoring Device
Manufacturer
Berlinger & Co. AG
Manufacturer Reference
SmartMonitor SITE L
Country of Manufacture
Sri Lanka
Address
Mitteldorfstrasse 2,
Ganterschwil
Sankt Gallen
Switzerland
Ganterschwil
Sankt Gallen
Switzerland
Telephone
+41 (71) 982 88 11
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
5.00
Maximum logging intervals (mins)
240.00
Maximum recording time (days)
7.00
Sensor type(s)
electronic
Maximum sensor lead length (metres)
2.00
Maximum number of sensor channels
4.00
External dimensions height (mm)
20.00
External dimensions length (mm)
72.00
External dimensions width (mm)
125.00
Activation mechanism
Display & cloud interface
Material
plastic housing
Fixing mechanism
Adhesive
CE marking
Yes
Minimum working temperature (°C)
-40.00
Maximum working temperature (°C)
75.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Mains+Battery
Battery type
Ni-MH battery pack
Battery shelf life (year)
0
Activated battery life
7 days
Alarm type
Aucostic
Memory capacity (readings)
1000.00
Programmability
User Programed
User interface
USB & cloud
Display medium
Liquid Crystal
Recording medium
Non-volatile EEPROM memory
Price and shipping
Shipping volume (m3)
0.023
Weight per Package (Kg)
0.1800
Units per package
10.00
Weight per Unit (Kg)
2.0000
Minimum order
10.00
Incoterms
FCA
Price 1
USD 325
Year of base price
2023
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Product Sites
Berlinger & Co. AG
Mitteldorfstrasse 2,
Ganterschwil,
Sankt Gallen
CH-9608
Switzerland
Document Details

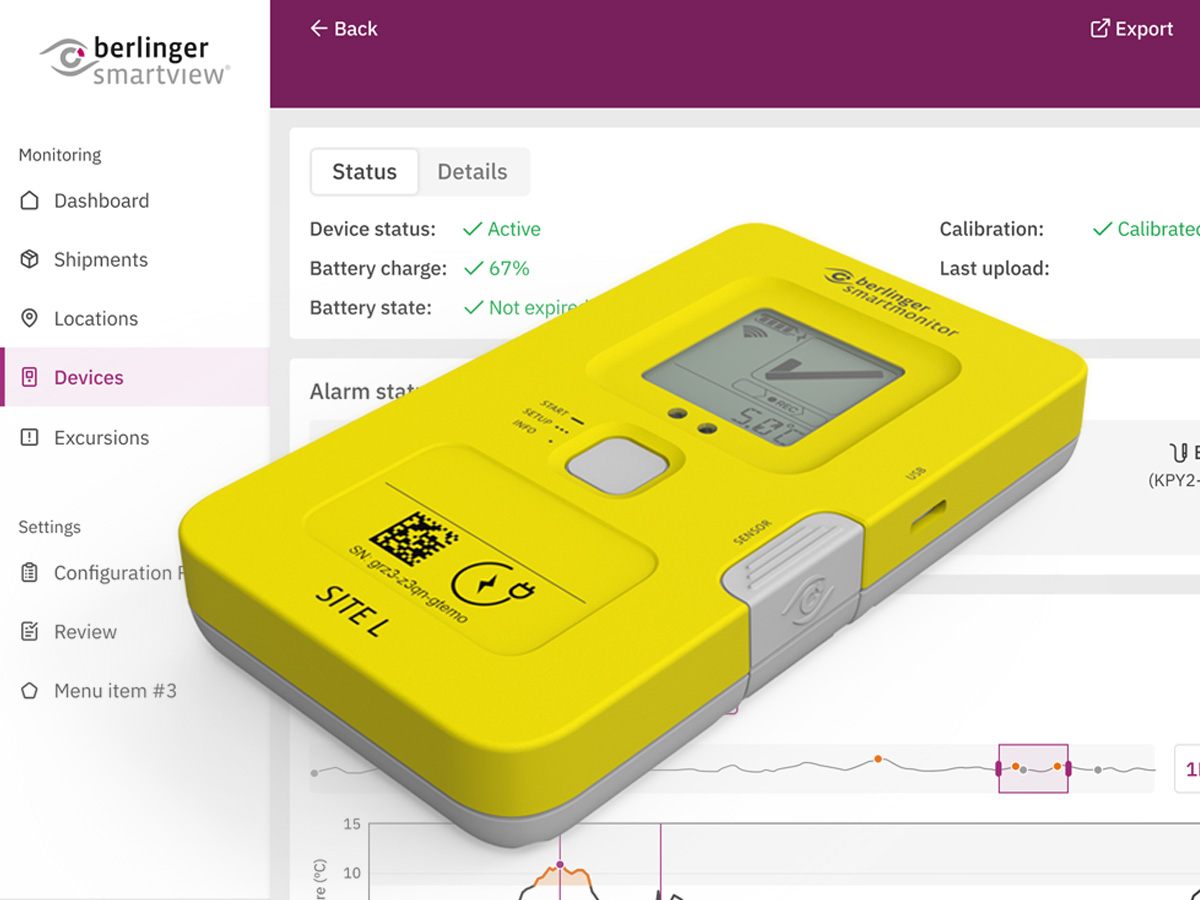

Simultaneously, the monitoring status is shown in the central dashboard platform SmartView, which displays all measurement data, trends and alarms. SmartView is web-based and can be used without installing additional software. Multiple users can have access.
Alarm notifications are sent to users’ cell phones or emails. In addition, users can receive warnings when the temperature is on the trajectory towards a breach. This powerful warning enables corrective action before an alarm occurs. The temperature ranges from -200°C to +75°C is covered, with up to 24 individually programmable alarm rules for temperature and humidity. The open-door detection provides an additional check to avoid temperature excursions.
SmartSystem includes: SmartView dashboard software, SmartMonitor SITE L, global mobile network coverage (cellular). The communication technologies included are Cellular LTE Cat M1 (4G/5G), NB–IoT, 2G; WiFi; GNSS. Easy integration of data between SmartView and other systems via an API.
Accessories:
- SmartCradle for secure mounting of the SmartMonitor SITE L
- SmartSensor extension cable for efficient and reliable installation (1m).
More information: https://www.berlinger.com/temperature-monitoring/services/smartsystem-user-support
Accuracy: +/- 0.5°C in the range of [-10°C, +45°C]
Memory size: 1000 data points
