E006-085

SF - Immunization Devices
Download file
Product Details
Product name

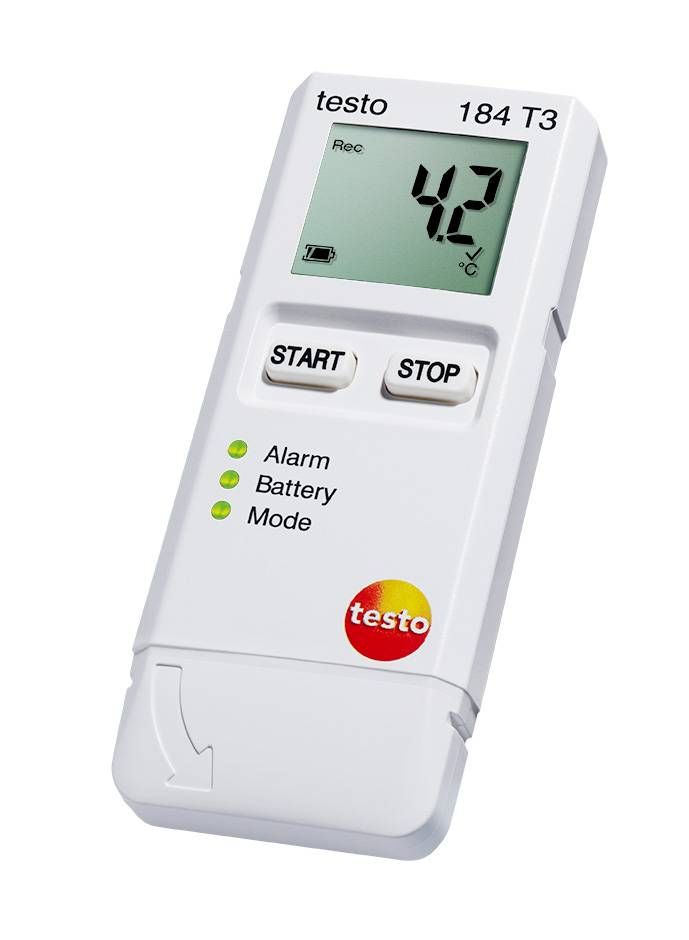

testo 184 T3
IMD-PQS Code
E006-085
Status
Prequalified
Date of acceptance
07 Jan 2022
Appliance type
E006
Product description
User programmable data logger
Manufacturer
Testo SE & Co. KGaA
Manufacturer Reference
testo 184 T3
Country of Manufacture
China
Address
Celsiusstr. 2
Titisee-Neustadt
Baden-Württemberg
Germany
Telephone
+49 7653 681-0
Website address
Valid until
31 May 2026
Specifications

Product specifications - Main

Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum logging intervals (mins)
1440.00
Maximum recording time (days)
500.00
Sensor type(s)
NTC
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
1.00
External dimensions height (mm)
40.00
External dimensions length (mm)
97.00
External dimensions width (mm)
12.00
Activation mechanism
Start button; Start Date/Time; Software
Material
ABS
Fixing mechanism
None
CE marking
Yes
Minimum working temperature (°C)
-35.00
Maximum working temperature (°C)
70.00

Mechanical and electronic devices only

Accuracy (+/- °C)
0.50
Power source
Replaceable battery
Battery type
CR2450 3V
Battery shelf life (year)
10 years
Activated battery life
3 months
Alarm type
NA
Memory capacity (readings)
40000.00
Programmability
User Programed
User interface
2 buttons, 3 LED, 1 display
Display medium
LCD Display
Recording medium
Not applicable
Ingress protection rating IP
IP67
Comments
With the temperature data loggers testo 184 T3, you monitor the transport of sensitive goods such as pharmaceuticals, foods or electronics, over an unlimited period. More info on applications.
At their destination, a glance at the display or the LEDs tells you whether the configured limit values have been adhered to. In order to obtain detailed information, it is sufficient to connect the logger to a PC – a PDF report is immediately generated with all relevant data. In order for you to be able to work even more efficiently and conveniently with the data loggers, all required files and information are stored directly and securely in the testo 184 T3: Configuration file, acceptance test certificate 3.1 according to DIN ISO 10204, instruction manual and PDF report of your recorded data.
The measurement value store of the temperature data logger testo 184 T3 has a capacity of 40000 measurement values. The measurement rate is freely selectable from 1 min to 24 h. The battery has a life of 500 days. The temperature data logger testo 184 T3 is supplied by a standard battery which can be exchanged by the user.
testo 184 T3 is compliant with GxP, 21 CFR Part 11, HACCP and EN 12830. Testo is an ISO 9001-certified company, and ensures the adherence to the norms through internal audits as well as accredited external audits.

Memory size: 16000 data points

Price and shipping

Weight per Package (Kg)
0.0450
Price 1
108 euros
Year of base price
2022

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification: E006/TR05.1
Applicable PQS VP(s):
Product Sites
Testo SE & Co. KGaA
Celsiusstr. 2
Titisee-Neustadt,
Baden-Württemberg
79822
Germany
