Product Details
Product name

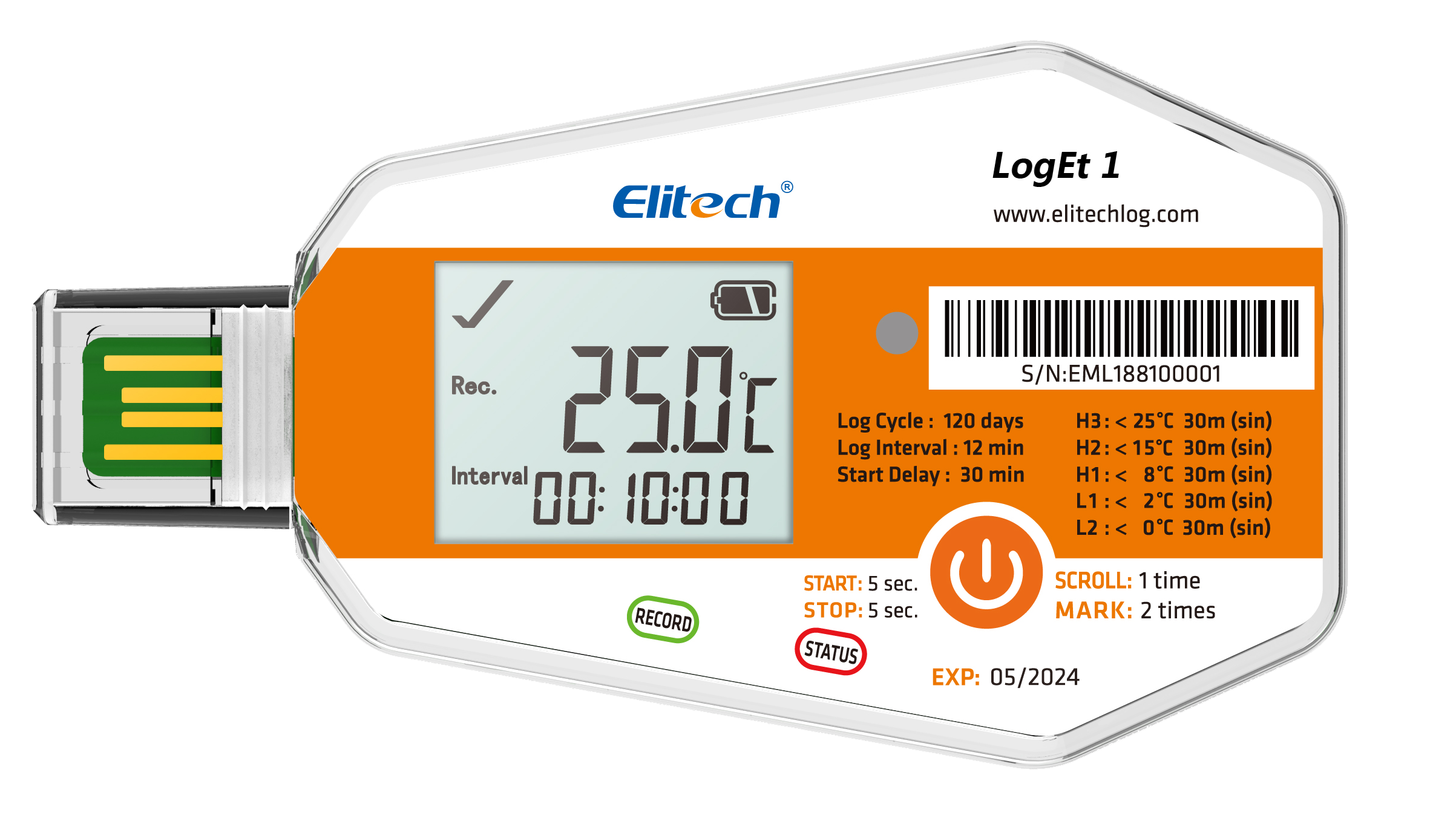

LogEt 1
IMD-PQS Code
E006-083
Status
Prequalified
Date of acceptance
06 Feb 2022
Appliance type
E006
Product description
User programmable data logger
Manufacturer
Jiangsu Jingchuang Electronics Co.,Ltd
Manufacturer Reference
LogEt 1
Country of Manufacture
China
Address
No,21 East Zhujiang Rd, Tongshan EconomicDevelopment Zone,
Xuzhou
Jiangsu
China
Xuzhou
Jiangsu
China
Telephone
0086 0516 18796337208
Email
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
0.00
Maximum logging intervals (mins)
1440.00
Maximum recording time (days)
180.00
Sensor type(s)
digital sensor
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
0.00
External dimensions height (mm)
80.00
External dimensions length (mm)
97.00
External dimensions width (mm)
53.00
Activation mechanism
button
Material
Polycarbonate
Fixing mechanism
Adhesive
CE marking
Yes
Minimum working temperature (°C)
-30.00
Maximum working temperature (°C)
70.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
Coin Cell Battery 3V
Battery shelf life (year)
2 years
Activated battery life
6 months
Alarm type
Visual
Memory capacity (readings)
300000.00
Programmability
User Programed
User interface
LCD DISPLAY
Display medium
LCD
Recording medium
Electronic
Price and shipping
Shipping volume (m3)
0.0043
Weight per Package (Kg)
0.0650
Units per package
30.00
Weight per Unit (Kg)
1.8000
Minimum order
30.00
Incoterms
EXW
Price 1
30-100 units: 18.50 USD
Price 2
100-500 units:17.50 USD
Price 3
>500 units: on request to manufacturer
Year of base price
2022
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Report Reference
TUV E8A 114320 0001 Rev. 00
Product Sites
Elitech Technology Inc.
2528 Qume Dr. Ste 2, San Jose, CA 95131
China
Document Details
*Easy to use. Create PDF reports without software or cable, The PDF Report is available at any time without stopping the Logger.
*Damage control. Up to 5 levels of limit values can be set.
*Light Intensity/Illuminance (Lux). Detect whether a parcel has been opened or not during a shipment.
*Back up shadow log, prevent data from being lost
*Password protection, protect data safety and prevent misuse.
*Humidity sensor is optional
