Product Details

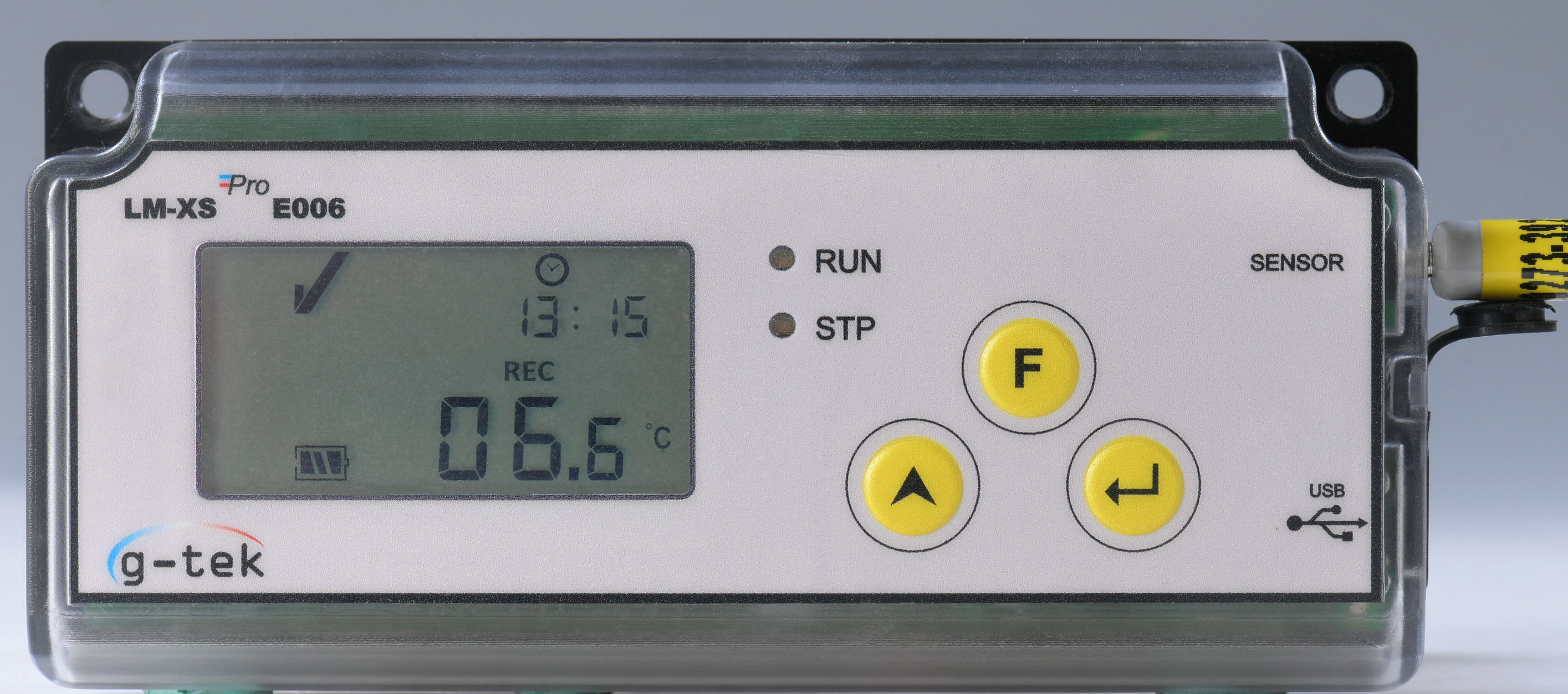

Product name
LM-XS Pro E006
IMD-PQS Code
E006-081
Status
Prequalified
Date of acceptance
26 Apr 2022
Appliance type
E006
Product description
30 Day Temperature Logger
Manufacturer
G-Tek Corporation Private Limited
Manufacturer Reference
LM-XS Pro E006
Country of Manufacture
India
Address
Gunaji House”, Plot No. 25/1, Besides Status Bungalow, Padra Road,
Vadodara
Gujarat
India
Vadodara
Gujarat
India
Telephone
+91 98 245 22295
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum logging intervals (mins)
540.00
Maximum recording time (days)
120.00
Sensor type(s)
External Thermistor 10K NTC
Maximum sensor lead length (metres)
3.00
Maximum number of sensor channels
1.00
External dimensions height (mm)
20.00
External dimensions length (mm)
128.00
External dimensions width (mm)
60.00
Activation mechanism
by long press of “UP” key for more than 10 seconds
Material
Polycarbonate plastic; non-breakable, non-corrodible
Fixing mechanism
Screws
CE marking
Yes
Minimum working temperature (°C)
-40.00
Maximum working temperature (°C)
60.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
"Non-Replaceable 3.0 V 950mAH; CR2477 Panasonic
Battery shelf life (year)
5
Activated battery life
60 months
Alarm type
Visual
Memory capacity (readings)
17280.00
Programmability
Factory Programmed
User interface
LCD
Display medium
LCD Display
Recording medium
Flash Memory
Price and shipping
Shipping volume (m3)
0.038
Weight per Package (Kg)
0.1000
Units per package
30.00
Weight per Unit (Kg)
8.0000
Minimum order
1.00
Incoterms
EXW
Price 1
1-100 units: US$75 per unit
Price 2
101-250 units: US$55 per unit
Price 3
> 250 units :Consult Factory
Year of base price
2022
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification: PQS-E006-TR07.4
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
0013X00004Ml8OaQAJ
Verification Report Reference
LLTPL/TL/2025-02/01
Product Sites
G-Tek Corporation Private Limited
Gunaji House”, Plot No. 25/1, Besides Status Bungalow, Padra Road,
Vadodara,
Gujarat
391410
India
Document Details
configurations. Direct PDF/CSV Summary Report of maximum 60 days can be generated by connecting the
device with PC. For the detailed data analysis and report, windows based software application is available.
It displays “Tick mark” if the temperature has remained within the recommended limits. It displays “Cross
mark” if there are any heat or freeze temperature violations, for a period beyond recommended limits. It
gives a visual alarm for any violations of temperature. It stores the data up to 60 days and user can see
the history data up to last 30 days without downloading or connecting the device to the computer.
For more details, refer to the operating manual and quick start guide
(1) Manual Start, on long press of UP key
(2) Start delay of 10 minutes
(3) Once started device cannot be stopped.
(4) Device can be PAUSED to exclude data from alarm, min/max statistics for 15 min. But recording will continue.
(5) Auto resume from PAUSE after 15 mins.
(6) User can view last 30 days of history data on display using keyboard.
(7) Total of 120 days of storage.
(8) Memory Roll-over after 120 days of storage.
(9) Multi digit, character LCD display to indicate various functions, parameters and values
(10) Display dimension: 22 x 42 mm; 0.35” HTN Reflective;
(11) Display Auto-off; after 1min of non-access of Keyboard
(12) LED status indicator for RUN and STOP mode
(13) Three front panel keys to perform various functions
For more details refer to the operating manual and quick start guide.
