E006-076

SF - Immunization Devices
Download file
Product Details
Product name
UTRID-16
IMD-PQS Code
E006-076
Status
Prequalified
Date of acceptance
18 Mar 2021
Appliance type
E006
Product description
User programmable data logger
Manufacturer
LogTag North America Inc.
Manufacturer Reference
UTRID-16
Country of Manufacture
Vietnam
Address
TongFuYu Industrial Zone, Block NO.8, Jinghong Road, Shajing Town, Baoan 518117 ShenZhen, GuangDong
China
Telephone
+64 9 448 2311
Website address
Valid until
31 May 2025
Specifications

Product specifications - Main

Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum logging intervals (mins)
1080.00
Sensor type(s)
Electronic Thermistor
Maximum number of sensor channels
1.00
External dimensions height (mm)
8.60
External dimensions length (mm)
93.00
External dimensions width (mm)
54.50
Activation mechanism
Start button, or start at configured date and time
Material
Polycarbonate
Fixing mechanism
Screws
CE marking
Yes
Minimum working temperature (°C)
-30.00
Maximum working temperature (°C)
65.00

Mechanical and electronic devices only

Power source
Non-replaceable battery
Battery type
CR2450 3V Li-MnO2 UN38.3 approved coin cell
Battery shelf life (year)
12 months
Activated battery life
24 months
Alarm type
Visual
Memory size (Mb)
4.0000000000
Memory capacity (readings)
16129.00
User interface
USB / Display / Buttons
Display medium
LCD Display
Recording medium
EEPROM, non-volatile
Ingress protection rating IP
IP65
Comments

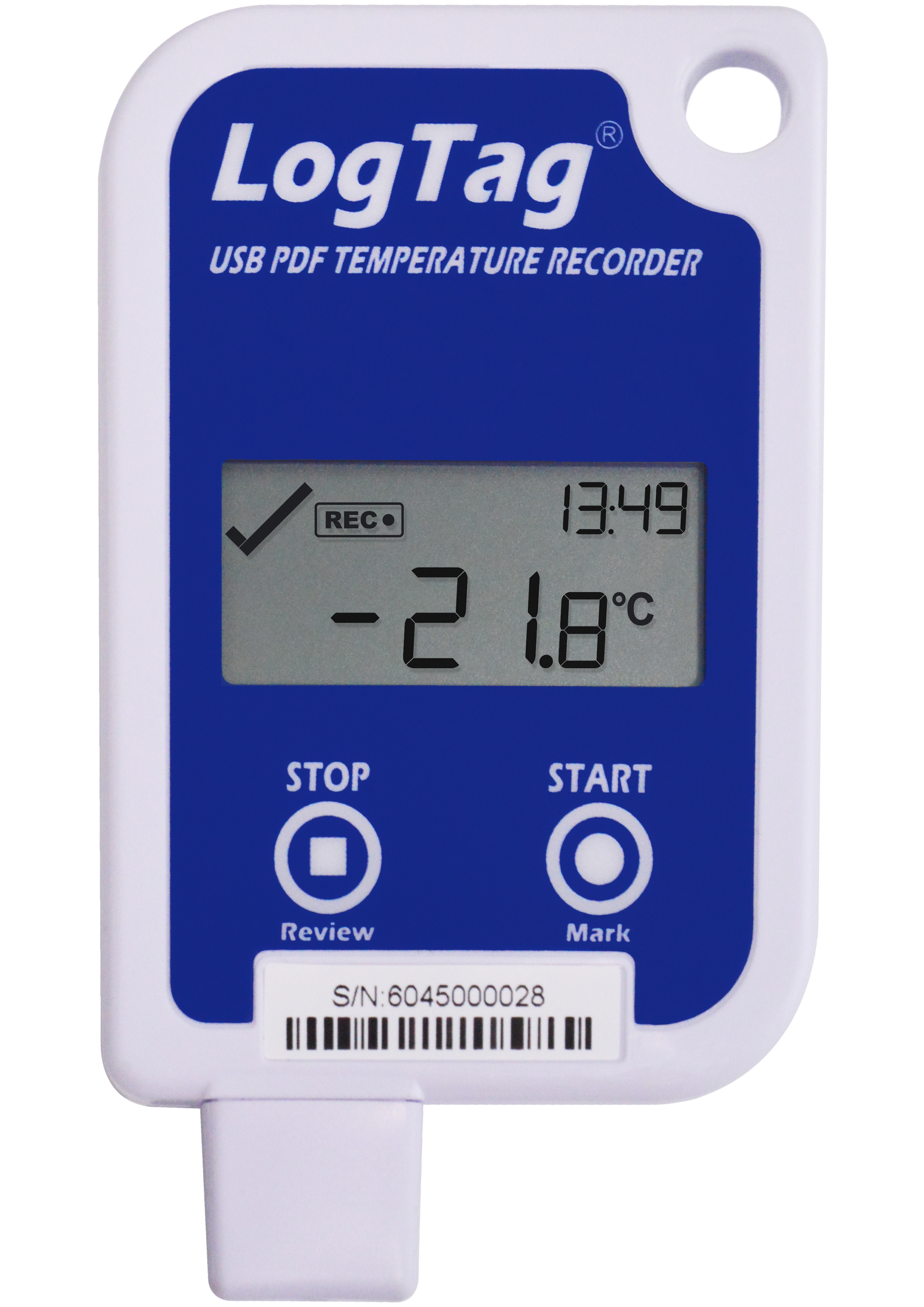

LogTag’s UTRID-16 is a fully configurable, multi-use USB PDF temperature recorder with a built-in display, that can create temperature reports without the need to install proprietary software or hardware at the destination. Select statistical data can be reviewed directly on the display without the need for a PC. The recorder can be configured using LogTag® Analyzer, and is then placed with the goods to be monitored. At the end of the trip, the UTRID-16 can be plugged straight into a computer’s USB port and generates a PDF file, which can be accessed using PDF software such as Acrobat Reader.

Accuracy: Better than ±0.5 °C for -20 °C to +40 °C, better than ±0.7 °C for -30 °C to -20 °C and +40 °C to +60

Price and shipping

Shipping volume (m3)
0.028
Weight per Package (Kg)
0.0390
Units per package
50.00
Weight per Unit (Kg)
2.3000
Minimum order
20.00
Incoterms
EXW
Price 1
48 USD
Year of base price
2021

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):

Verification

Verification Laboratory
0013X00004Ml8OeQAJ
Product Sites
LogTag North America Inc.
TongFuYu Industrial Zone, Block NO.8, Jinghong Road, Shajing Town, Baoan 518117 ShenZhen, GuangDong
China
