Product Details
Product name
U-COOL-LORA
IMD-PQS Code
E006-075
Status
Prequalified
Date of acceptance
02 Aug 2021
Appliance type
E006
Product description
Remote Temperature Monitoring Device
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
U-COOL-LORA
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum logging intervals (mins)
1440.00
Maximum recording time (days)
30.00
Sensor type(s)
temperature probe; Door On-off; Power Outage
Maximum number of sensor channels
1.00
External dimensions height (mm)
33.00
External dimensions length (mm)
160.00
External dimensions width (mm)
100.00
Activation mechanism
manual
Material
Gateway: Aluminium frame; Logger: ABS
Fixing mechanism
Adhesive
CE marking
Yes
Minimum working temperature (°C)
-40.00
Maximum working temperature (°C)
80.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Mains+Battery
Battery type
Lithium
Battery shelf life (year)
3 years
Activated battery life
36 months
Alarm type
Visual
User interface
LCD DISPLAY
Display medium
LCD Display
Recording medium
Electronic
Price and shipping
Shipping volume (m3)
0.023
Weight per Package (Kg)
0.6400
Units per package
1.00
Weight per Unit (Kg)
0.6400
Minimum order
1.00
Incoterms
FCA
Price 1
The software fee: 200 USD to 300 per year
Price 2
The hardware fee: 1350USD (1-50 units)
Price 3
The hardware fee: 1300USD (51-100 unit)
Year of base price
2021
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
Document Details

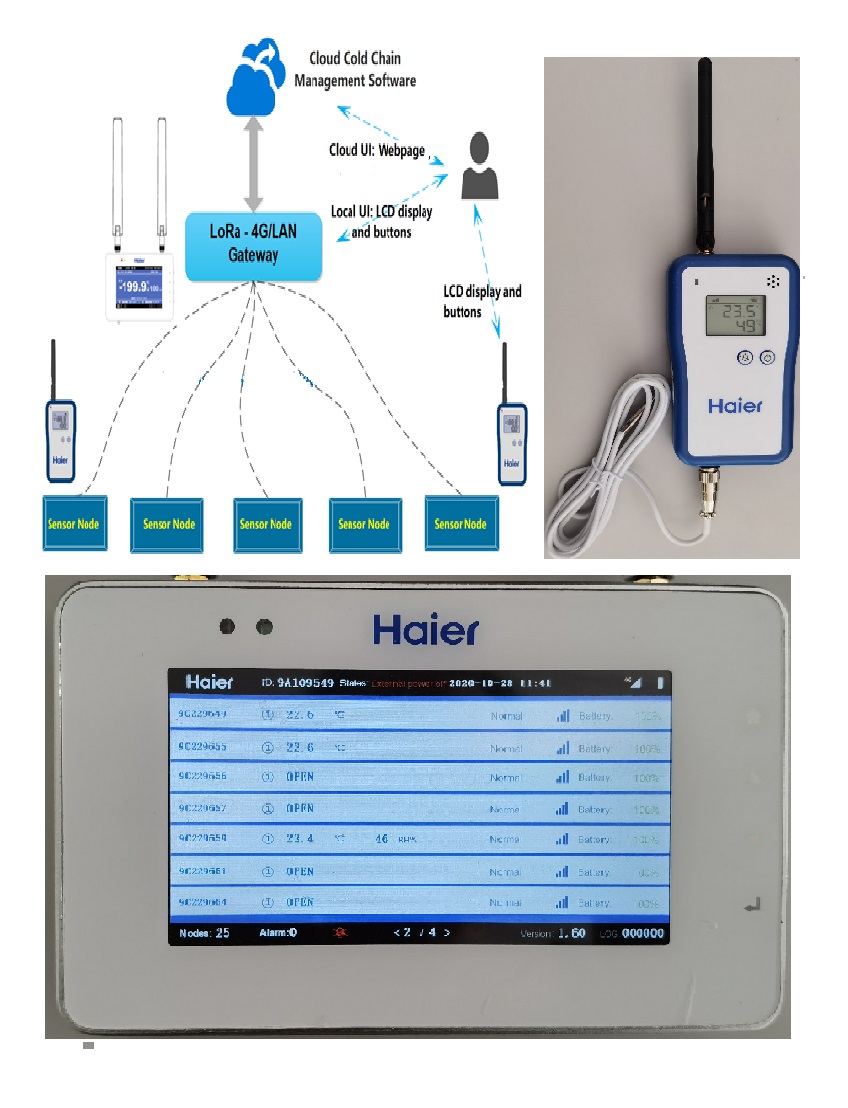

The whole system consists of repeaters and different collectors: Four Temperature collectors, One Power on-off collector, One Door open-close collector.
The software fee includes annual subscription fees, portal access fee, SIM card startup fee.
The collector sends the collected data to the repeater through LoRa(Long Range Radio) signal, and the repeater sends the data to the cloud platform through GPRS signal.
A repeater can be automatically connected with about 60 collectors. Users do not need any settings for the hardware devices, and can operate after starting up. Users only need to set the alarm threshold, user information and device name on the cloud platform.
Weight per package (Kg): 1X Gateway: 0.64Kg
