E006-047

SF - Immunization Devices
Download file
Product Details
Product name
DeltaTrak Model 40527
IMD-PQS Code
E006-047
Status
Prequalified
Date of acceptance
12 Aug 2017
Appliance type
E006
Product description
User programmable temperature data logger
Manufacturer
DeltaTrak Inc.
Manufacturer Reference
DeltaTrak Model 40527
Country of Manufacture
United States of America
Address
1236 Doker Drive 95351 Modesto
United States of America
Telephone
+1 925 2492250
Website address
Valid until
31 May 2026
Specifications

Product specifications - Main

Mode of operation
Electronic
Minimum logging intervals (mins)
0.00
Maximum logging intervals (mins)
1080.00
Sensor type(s)
Thermistor in 5 ml PETG* Sterile Bottle
Maximum sensor lead length (metres)
3.00
Maximum number of sensor channels
1.00
External dimensions height (mm)
24.00
External dimensions length (mm)
40.00
External dimensions width (mm)
93.00
Activation mechanism
Stop and Start button.
Material
ABS Plastic
Fixing mechanism
None
CE marking
Yes
Minimum working temperature (°C)
-50.00
Maximum working temperature (°C)
40.00

Mechanical and electronic devices only

Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
Two AAA lithium batteries,
Battery shelf life (year)
2 years
Activated battery life
24 months
Alarm type
Aucostic
Memory size (Mb)
0.0000320000
Memory capacity (readings)
32496.00
Programmability
Other
Programmability (Other)
Factory and user programmable
User interface
LCD + PC downloadable
Display medium
LCD
Recording medium
Electronic
Ingress protection rating IP
IP64
Comments

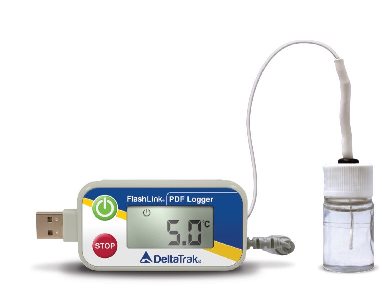

The FlashLink® Certified Vaccine USB PDF Data Logger is compatible with WHO and CDC guidelines for monitoring temperature conditions inside storage units where vaccines and other temperature sensitive liquid medicines are kept. This reusable data logger features a large, easy-to-read LCD and an external probe sealed in a 5ml glycol bottle. The glycol prevents false alarms by buffering the probe against sudden and expected temperature fluctuations during normal use, such as frequent door openings and cycling of the refrigerator or freezer. The glycol also emulates temperature changes experienced by most common fluids in storage, to give more accurate readings. The logger attaches to the outside of the storage door, while the sensor bottle is placed inside, allowing users to read current and minimum/maximum temperatures without opening the unit. A red LED alarm and low battery indicator are visible on the display, and the logger also features an audible alarm when out-of-range conditions occur. All loggers come standard with a glycol bottle, and are pre-configured to user requirements with alarms set either for refrigerator or freezer monitoring. DeltaTrak's in-house calibration laboratory is ISO 17025 accredited, and can provide a 2-year ISO 17025 Certificate of Calibration for an additional charge of $50 perfreezer monitoring. A 2-year ISO 17025 Certificate of Calibration is available for each unit. DeltaTrak’s in-house calibration laboratory is ISO 17025 accredited. unit.

Accuracy: (±0.5°C from -50°C to 25°C)

Price and shipping

Shipping volume (m3)
0.768
Weight per Package (Kg)
0.0907
Units per package
1.00
Weight per Unit (Kg)
0.0910
Minimum order
1.00
Incoterms
FOB
Price 1
pricing upon request
Year of base price
2017

Quality standard

Quality Standard
ISO 17025;Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E006/TR05.1
Applicable PQS VP(s): E006/TR05.VP.1
Product Sites
DeltaTrak Inc.
1236 Doker Drive 95351 Modesto
United States of America
