E006-043

SF - Immunization Devices
Download file
E006-043.pdf
E006-043.json
Product Details
Product name

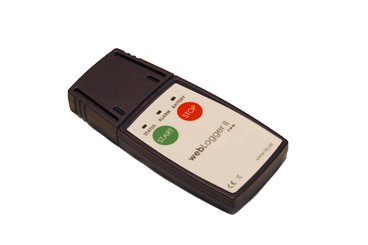

Weblogger II
IMD-PQS Code
E006-043
Status
Prequalified
Date of acceptance
03 Mar 2017
Appliance type
E006
Product description
User programmable temperature data logger
Manufacturer
Temperature Sensitive Solutions AB
Manufacturer Reference
Weblogger II
Country of Manufacture
Sweden
Address
Berzelius vag 25 171 65 Solna
Sweden
Telephone
+46790791229
Email
andras.kalmar@tss.se
Website address
http://www.tss.se
Valid until
31 May 2026
Specifications

Product specifications - Main

Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum logging intervals (mins)
5760.00
Sensor type(s)
Internal Electronic Sensor
External dimensions height (mm)
11.50
External dimensions length (mm)
90.00
External dimensions width (mm)
43.00
Activation mechanism
Button or web interface
Material
ABS
Fixing mechanism
None
CE marking
Yes
Minimum working temperature (°C)
-30.00
Maximum working temperature (°C)
70.00

Mechanical and electronic devices only

Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
CR Lithium
Battery shelf life (year)
1 year
Activated battery life
12 months
Alarm type
Visual
Memory size (Mb)
0.5120000000
Memory capacity (readings)
16000.00
Programmability
User Programed
User interface
USB for computer
Recording medium
flash memory
Ingress protection rating IP
IP 65
Comments
The WebLogger II is a RoHs, CE and IATA compliant electronic temperature data logger. The logger can be individually configured and programmed or ordered preconfigured. It offers unique management of mission data, e.g. Shipping #, Origin, Destination, Carrier, and Data-Logger Location in the CCIS cloud. When the logger is plugged into a computer USB port, an HTM file is created containing the data. Clicking the file will display the result on a web dashboard and secure the mission data in the CCIS private secure cloud.

Maximum Logging Intervals: 4 days

Price and shipping

Shipping volume (m3)
0.0104
Weight per Package (Kg)
0.0360
Units per package
100.00
Weight per Unit (Kg)
4.0000
Minimum order
100.00
Incoterms
FCA
Price 1
100-250: €39
Price 2
250+: €38
Price 3
1000+: on request to manufacturer
Year of base price
2017

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: PQS/E006/TR05.1
Applicable PQS VP(s): E006/TR05-VP.1
Product Sites
Temperature Sensitive Solutions AB
Berzelius vag 25 171 65 Solna
Sweden
