E006-040

SF - Immunization Devices
Download file
Product Details
Product name

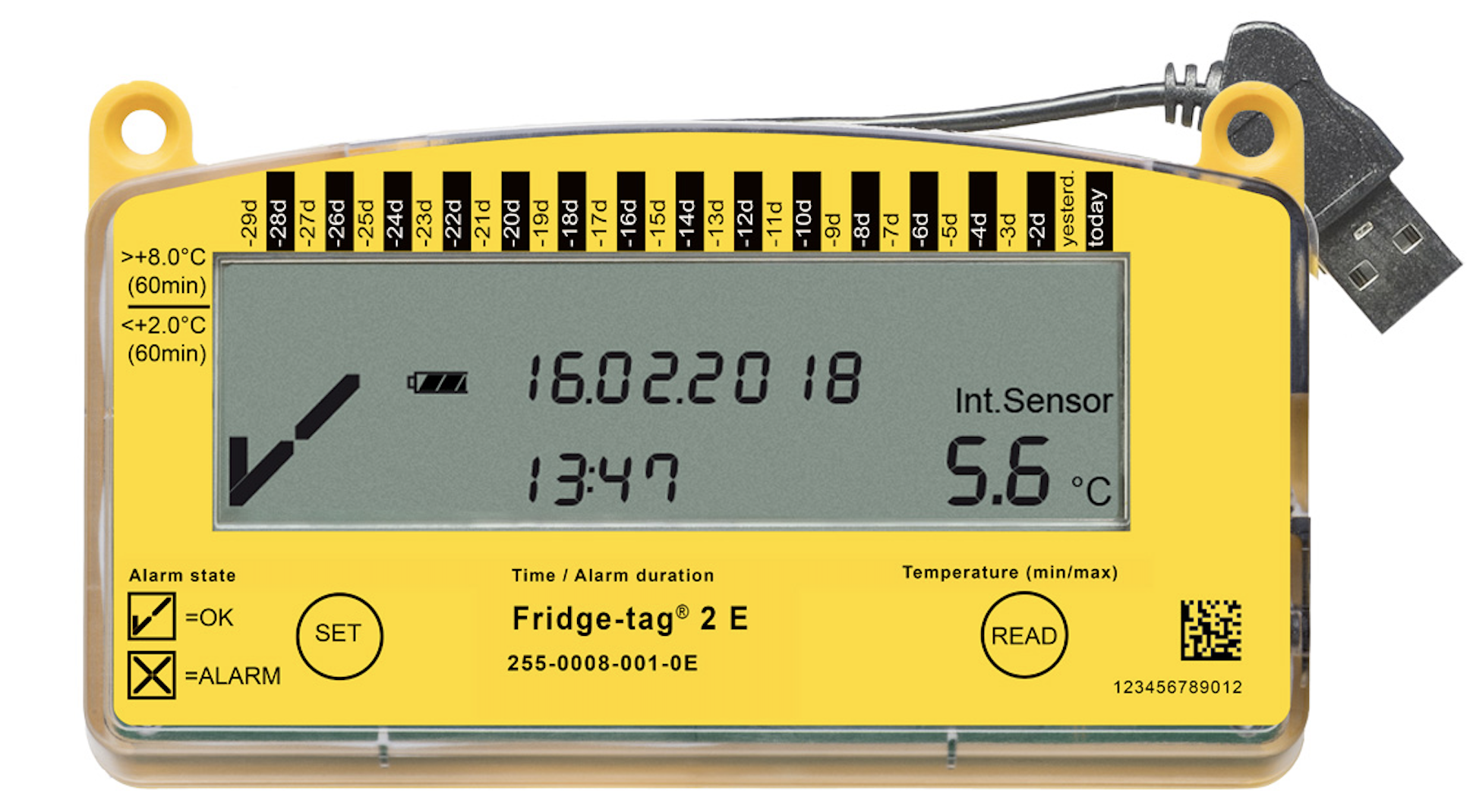

Fridge-tag 2 E
IMD-PQS Code
E006-040
Status
Prequalified
Date of acceptance
30 Oct 2016
Appliance type
E006
Product description
30-day electronic temperature logger
Manufacturer
Berlinger & Co. AG
Manufacturer Reference
Fridge-tag 2 E
Country of Manufacture
Switzerland
Address
Mitteldorfstrasse 2, CH-9608 Ganterschwil, Switzerland
Switzerland
Telephone
+41 (71) 982 88 11
Website address
Valid until
31 May 2026
Specifications

Product specifications - Main

Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum recording time (days)
60.00
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
1.00
External dimensions height (mm)
19.00
External dimensions length (mm)
128.00
External dimensions width (mm)
75.00
Activation mechanism
Button activated
Material
Non-corrodible plastic (ABS)
Fixing mechanism
Adhesive
CE marking
Yes
Minimum working temperature (°C)
-40.00
Maximum working temperature (°C)
60.00

Mechanical and electronic devices only

Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
Lithium coin cell
Battery shelf life (year)
66 months from the manufacturing date
Activated battery life
66 months from the manufacturing date
Alarm type
Visual
Programmability
Factory Programmed
User interface
LCD
Display medium
LCD
Recording medium
Electronic
Ingress protection rating IP
64
Comments
Fridge-tag 2 E, now with 5 years operating time, is the temperature monitor for medical refrigerators or freezers. It measures the
ambient temperature every minute and immediately issues an alert when your alarm limit is exceeded. The large OK / ALARM
indicator on the display enables immediate decisions to be made. Accurate temperature data from the last 60 days is presented
in a PDF, which is automatically generated when the device is connected to a PC/Mac, without additional software.
The Fridge-tag 2 E is also available with a removable external temperature sensor (measures up to –40°C / –40°F). Default
configurations are Type 1 and Type 2 (as per TR06.4); other configurations are also possible.
FREE Apps:
The Fridge Tag 2 has been verified to be compatible with the free Varo Android application <https://varo-app.org/>, which reads
out data from 30DTR loggers and sends it via email to user-defined recipients in a format that can be easily aggregated using a
separate free application called Pogo LT <https://pogo-lt.org>.
The Varo and Pogo LT apps are free. They are developed and maintained by a third party, not affiliated with Berlinger.
However, we consider both apps a complementary value-add to our Fridge-tags that come for free.
Discounts apply for large orders

Country of Manufacture: Switzerland/Malaysia

Price and shipping

Shipping volume (m3)
0.017
Weight per Package (Kg)
0.1120
Units per package
50.00
Weight per Unit (Kg)
8.0000
Minimum order
20.00
Incoterms
EXW
Price 1
For 20 units 78.50 USD per unit
Year of base price
2022

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification: PQS/E006/TR06.3
Applicable PQS VP(s): E006/TR06-VP.3

Verification

Verification Laboratory
Roth & CO AG
Address
asasas
Switzerland
Verification Report Reference
VA 16-01816
Product Sites
Berlinger & Co. AG
Mitteldorfstrasse 2, CH-9608 Ganterschwil, Switzerland
Switzerland
Document Details
