Product Details
Product name
TICT-iS0°Tag
IMD-PQS Code
E006-038
Status
Prequalified
Date of acceptance
25 Apr 2016
Appliance type
E006
Product description
Irreversible freeze indicator
Manufacturer
LogTag North America Inc.
Manufacturer Reference
TICT-iS0°Tag
Country of Manufacture
China
Address
TongFuYu Industrial Zone, Block NO.8, Jinghong Road, Shajing Town, Baoan 518117 ShenZhen, GuangDong
China
China
Telephone
+64 9 448 2311
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
5.00
Maximum logging intervals (mins)
5.00
Sensor type(s)
Electronic Thermistor
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
0.00
External dimensions height (mm)
8.60
External dimensions length (mm)
71.50
External dimensions width (mm)
33.00
Activation mechanism
manual
Material
Polycarbonate
Fixing mechanism
Adhesive
CE marking
Yes
Minimum working temperature (°C)
-25.00
Maximum working temperature (°C)
60.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
3V Lithium Li-Mg coin cell
Battery shelf life (year)
3 years
Activated battery life
3 years
Alarm type
Visual
Programmability
Factory Programmed
User interface
LCD screen
Display medium
Custom LCD display
Recording medium
Not applicable
Price and shipping
Shipping volume (m3)
0.017
Weight per Package (Kg)
0.0190
Units per package
200.00
Weight per Unit (Kg)
4.5000
Minimum order
50.00
Incoterms
EXW
Price 1
50-999 units: 6.5 $US
Price 2
more than 1000 units: POA
Year of base price
2016
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: PQS/E006/IN03.1
Applicable PQS VP(s): E006/IN03-VP.1
Applicable PQS VP(s): E006/IN03-VP.1
Verification
Verification Laboratory
0013X00004Ml8OeQAJ
Verification Report Reference
7191129301-EEC16/NCH
Product Sites
LogTag North America Inc.
TongFuYu Industrial Zone, Block NO.8, Jinghong Road, Shajing Town, Baoan 518117 ShenZhen, GuangDong
China
Document Details

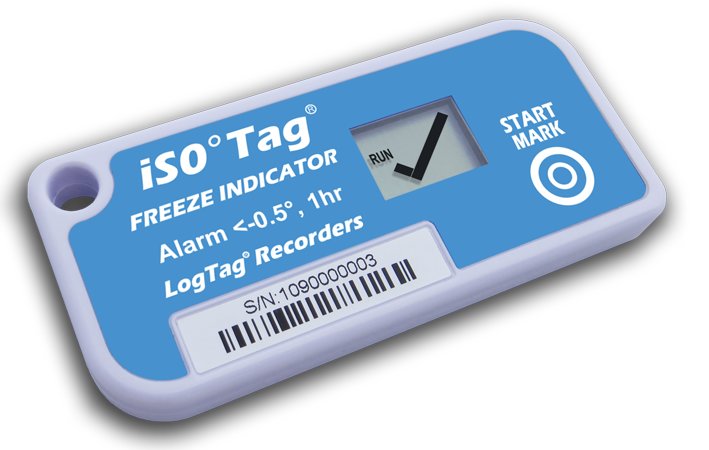

The product is made from durable polycarbonate plastic and features an LCD display and a START/MARK button.
The LogTag TICT iS0°Tag® can monitor and record statistics against a -0.5ºC temperature limit for up to 3 years, showing OK if environmental conditions remain at or above this limit. If, however, temperatures go below -0.5ºC for more than 60 minutes continuously, the LCD shows a REJECT symbol, indicating the goods require further checking. The indicator stops and cannot be reset, once an alarm has been generated.
Memory capacity: 1096 MIN/MAX events, 540 real time measurements
