SF - Immunization Devices
Product Details
WHO Product ID
E006-023
Status
Prequalified
Date of acceptance
Type
E006: Temperature monitoring devices
Product Desc
User programmable temperature data logger CS
Appliance Type
E006
Manufacturer
ELPRO-BUCHS AG
Langaulistrasse 45 9470 Buchs Suisse
Switzerland
Valid until
Specifications
Product identification
Manufacturers Reference
LIBERO CS
Country of Manufacture
Switzerland
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Material
ABS
External dimensions height (mm)
11.00
External dimensions length (mm)
96.00
External dimensions width (mm)
37.00
Minimum working temperature (°C)
-30.00
Maximum working temperature (°C)
70.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.30
Power source
Non-replaceable battery
Programmability
User Programed
Battery type
CR Lithium
Battery shelf life (year)
min 1 year (no activation)
User interface
USB for computer
Activated battery life
1 year
Display medium
LCD
Alarm type
Visual
Price and shipping
Price 1
40+ = 40.00USD; 120+ = 38.00USD
Shipping volume (m3)
0.003
Price 2
600+ = 36.00USD
Price 3
1000+ = on request to manufacturer
Units per package
40.00
Year of base price
2013
Minimum order
40.00
Incoterms
EXW
Quality standard
Quality Standard
ISO 17025;Other
Specification Reference
Applicable PQS specification: E006/TR05.1
Applicable PQS VP(s): E006/TR05-vp.1
Applicable PQS VP(s): E006/TR05-vp.1
Quality standard (Other)
ISO 9001:2015
Verification
Verification Report Reference
SAS SCS 122
Product Sites
ELPRO-BUCHS AG
Langaulistrasse 45 9470 Buchs Suisse
Switzerland
Document Details
* freeware
- liberoCONFIG - Configuration Software*
- LIBERO SmartStart - Quick Configuration Tool*
- liberoMANAGER - Online Cold Chain Database
- elproVIEWER - Analysis Software*
- elproASSISTANT - Task Manager

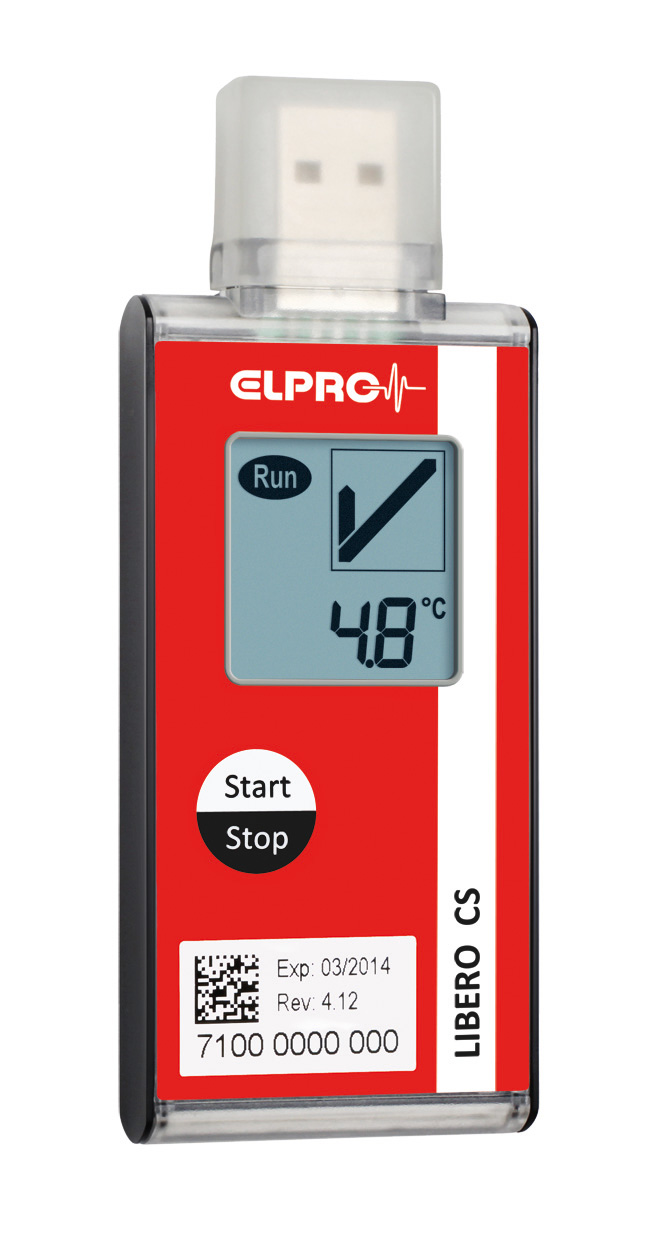

The LIBERO CS PDF Logger is a single use data logger with multiple alarm levels that automatically generates an evaluation report in PDF format upon connection to a USB port. No equipment and no software required to read out logger. Release products based on the OK or ALARM status on the display, retrieve the PDF report and forward it to the sender for further analysis or archive it locally.
Key features: - up to 8 temperature alarm levels with single or cumulative delays; Alarm on Mean Kinetic Temperature (MKT); Alarm on duration / logging time; Customizable text area for additional information (e.g. shipment information, instructions for recipient, etc.); Chart visualizing the temperature curve and alarm limits
