Product Details
Product name
Q-Tag Quad
IMD-PQS Code
E006-015
Status
Prequalified
Date of acceptance
29 Jun 2012
Appliance type
E006
Product description

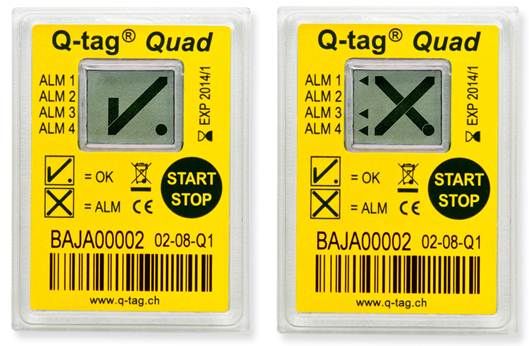

Electronic freeze indicator Q-Tag Quad
Manufacturer
Berlinger & Co. AG
Manufacturer Reference
Q-Tag Quad
Country of Manufacture
Switzerland
Address
Mitteldorfstrasse 2, CH-9608 Ganterschwil, Switzerland
Switzerland
Switzerland
Telephone
+41 (71) 982 88 11
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
1.00
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
0.00
External dimensions height (mm)
11.00
External dimensions length (mm)
53.00
External dimensions width (mm)
39.00
Activation mechanism
Start button (one hour delay)
Material
ABS
Fixing mechanism
Adhesive
CE marking
Yes
Minimum working temperature (°C)
-30.00
Maximum working temperature (°C)
55.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
Lithium coin cell
Battery shelf life (year)
60 mths from manufacture date
Activated battery life
60 mths from manufacture date
Alarm type
Visual
Programmability
Factory Programmed
User interface
LCD Start/Stop button
Display medium
LCD
Recording medium
Electronic
Price and shipping
Shipping volume (m3)
0.004
Weight per Package (Kg)
0.0160
Units per package
100.00
Weight per Unit (Kg)
1.7800
Minimum order
100.00
Incoterms
EXW
Price 1
Price at 100 units: 11.65 USD per unit
Year of base price
2022
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification: E006/IN03.1
Applicable PQS VP(s): E006/IN03-VP.1
Applicable PQS VP(s): E006/IN03-VP.1
Verification
Verification Laboratory
Roth & CO AG
Address
asasas
Switzerland
Switzerland
Verification Report Reference
VA11-02742 A
Product Sites
Berlinger & Co. AG
Mitteldorfstrasse 2, CH-9608 Ganterschwil, Switzerland
Switzerland
Document Details
alarm limits from –25°C to +50°C. Its simple OK / ALARM display enables easy and immediate decision-making, while its long
service life of up to 5 years is perfect for “last mile” use.
Function: This irreversible temperature indicator consists of an electronic temperature measuring circuit with associated LCDdisplay. If the indicator is exposed to temperature below - 0.5°C for more than 60min the display will change from the "good" status symbol into the "alarm” status symbol. A small blinking dot in the right hand corner of the LCD display indicates that the device is functioning.
Discounts apply for large orders
