E006-007

SF - Immunization Devices
Download file
E006-007.pdf
E006-007.json
Product Details
Product name
Freeze-tag
IMD-PQS Code
E006-007
Status
Prequalified
Date of acceptance
27 May 2008
Appliance type
E006
Product description
Electronic freeze indicator
Manufacturer
Berlinger & Co. AG
Manufacturer Reference
Freeze-tag
Country of Manufacture
Malaysia
Address
Mitteldorfstrasse 2, CH-9608 Ganterschwil, Switzerland
Switzerland
Telephone
+41 (71) 982 88 11
Email
info@berlinger.com
Website address
http://www.berlinger.com
Valid until
31 May 2026
Specifications

Product specifications - Main

Mode of operation
Electronic
Sensor type(s)
Electronic
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
0.00
External dimensions height (mm)
1.50
External dimensions length (mm)
50.00
External dimensions width (mm)
31.00
Activation mechanism
Always active
Material
ABS
Fixing mechanism
None
CE marking
Yes
Minimum working temperature (°C)
-20.00
Maximum working temperature (°C)
50.00

Mechanical and electronic devices only

Accuracy (+/- °C)
0.50
Power source
Non-replaceable battery
Battery type
Lithium coin cell
Battery shelf life (year)
60 months from manufacture date
Activated battery life
Device always active
Alarm type
Visual
Programmability
Factory Programmed
User interface
LCD screen
Display medium
LCD
Recording medium
Electronic
Ingress protection rating IP
67
Comments

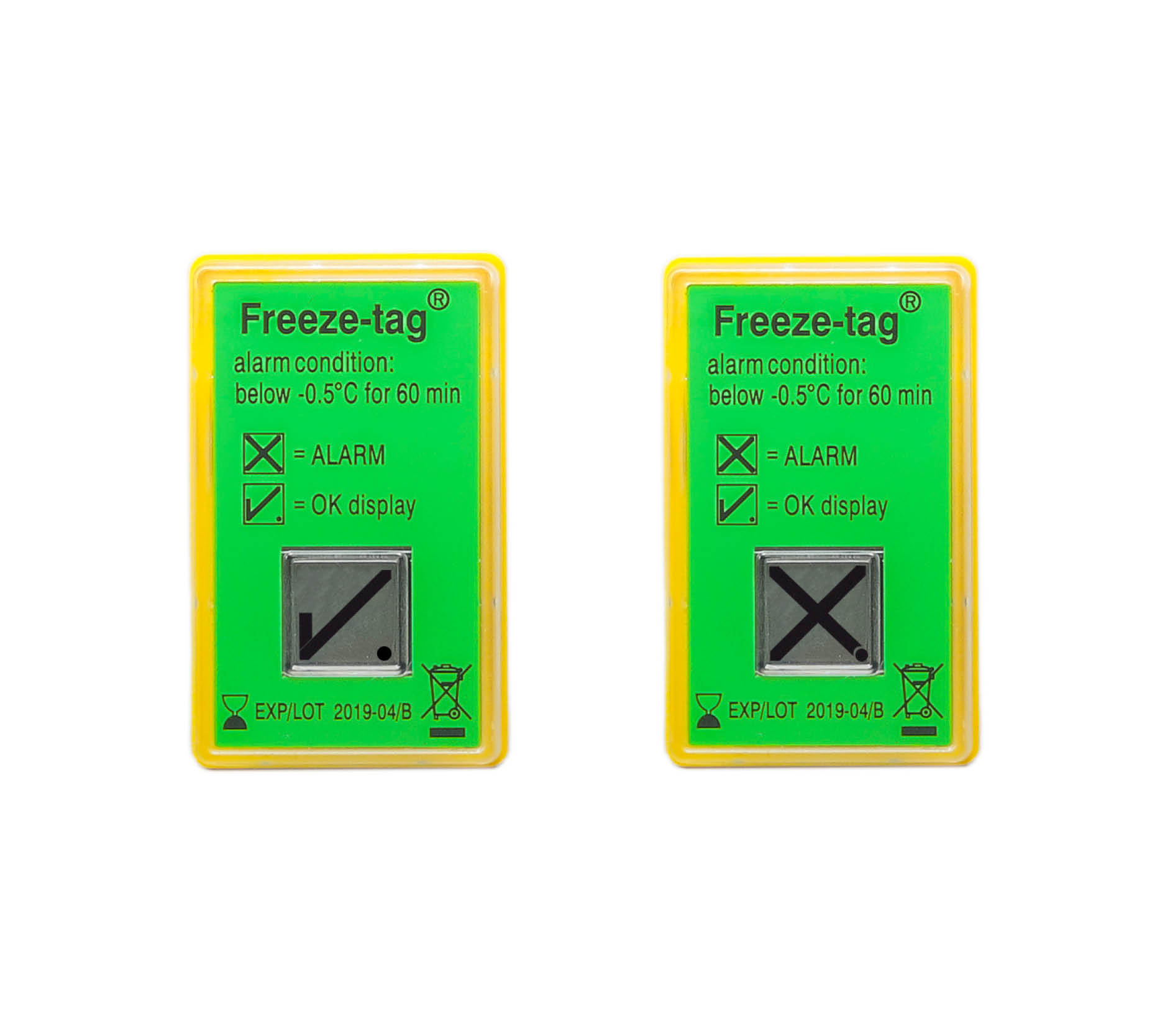

Freeze-Tag is an irreversible temperature indicator that shows if a product, such as vaccine has been exposed to freezing temperatures. It consists of an electronic temperature measuring circuit with associated LCD-display. If the indicator is exposed to a temperature below -0.5°C ±0.5°C for more then 60min ± 3min the display will change from the ? "OK" status symbol (?) into the "ALARM" status symbol (x). . A small blinking dot in the right hand corner of the LCD display indicates that the device is functioning.
Discounts apply for large orders

Price and shipping

Shipping volume (m3)
0.031
Weight per Package (Kg)
0.0140
Units per package
500.00
Weight per Unit (Kg)
7.5000
Minimum order
500.00
Incoterms
EXW
Price 1
8.90 USD per unit
Year of base price
2022

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification: E006/IN03.1
Applicable PQS VP(s): E006/IN03-VP.1

Verification

Verification Laboratory
METAS
Address
Lindenweg 50 CH-3003 Bern-Wabern
Switzerland
Email
anton.steiner@metas.ch
Verification Report Reference
151-04141
Product Sites
Berlinger & Co. AG
Mitteldorfstrasse 2, CH-9608 Ganterschwil, Switzerland
Switzerland
