SF - Immunization Devices
Download file
Product Details

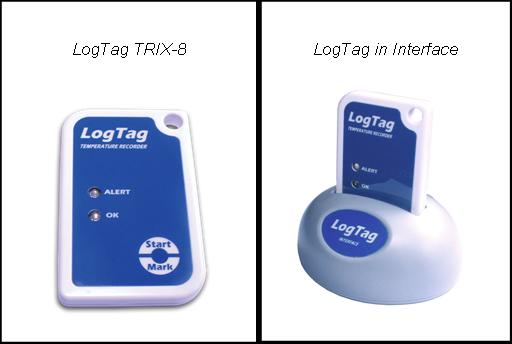

Product name
Logtag TRIX-8
IMD-PQS Code
E006-006
Status
Prequalified
Date of acceptance
22 Jan 2008
Appliance type
E006
Product description
User-programmable temperature data logger
Manufacturer
LogTag North America Inc.
Manufacturer Reference
Logtag TRIX-8
Country of Manufacture
China
Address
Unit 10, 10 Millpond Drive
Lafayette
New Jersey
United States of America
Lafayette
New Jersey
United States of America
Telephone
+64 9 448 2311
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Electronic
Minimum logging intervals (mins)
0.00
Sensor type(s)
Integrated in the case of the device
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
1.00
External dimensions height (mm)
85.00
External dimensions length (mm)
54.00
External dimensions width (mm)
8.50
Activation mechanism
On the device
Material
Polycarbonate
Fixing mechanism
None
CE marking
Yes
Minimum working temperature (°C)
-40.00
Maximum working temperature (°C)
85.00
Mechanical and electronic devices only
Accuracy (+/- °C)
0.50
Power source
Other
Power Source (Other)
Battery 3V
Battery type
Lithium 3V
Battery shelf life (year)
up to 10 years
Activated battery life
36 months
Alarm type
Visual
Memory size (Mb)
0.0160000000
Memory capacity (readings)
8000.00
Programmability
User Programed
User interface
Logtag interface + software
Display medium
LED
Recording medium
Electronic
Price and shipping
Shipping volume (m3)
0.0051
Weight per Package (Kg)
0.0350
Units per package
50.00
Weight per Unit (Kg)
1.9000
Minimum order
20.00
Incoterms
EXW
Price 1
20-99 units: 27.40 €
Price 2
100+ units: on request to manufacturer
Year of base price
2013
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E006/TR05.1
Applicable PQS VP(s): E006/TR05-VP.1
Applicable PQS VP(s): E006/TR05-VP.1
Verification
Verification Laboratory
TUV SUD PSB Pte Ltd
Address
15 International Business Park TÜV SÜD @ IBP Singapore 609937
Singapore
Singapore
Telephone
+6569736355
Email
Verification Report Reference
TUV 21123235_001
Product Sites
LogTag North America Inc.
Lot CN-01, Dong Van IV Industrial Zone, Dai Cuong Commune, Kim Bang District
Ha Nam Province,
Hà Nam
400000
Viet Nam
Document Details
Using the LogTag interface and LogTag ‘s free available companion software LogTag Analyser, it is easily set up for recording conditions including delayed start, sampling interval, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator.
Readings are downloaded using LogTag Analyser which provides facilities for chart, zoom, and listing data statistics and allows exporting the data to other applications such as Excel. The data downloading requires an external USB based docking station (Logtag interface) not included in the price.
Maximum Logging Intervals: several hours
