SF - Immunization Devices
Download file
Product Details
Product name
Vaccine cold chain monitor shipment record
IMD-PQS Code
E006-004
Status
Prequalified
Date of acceptance
30 Sep 2007
Appliance type
E006
Product description
Cold chain monitor
Manufacturer
Berlinger & Co. AG
Manufacturer Reference
Vaccine cold chain monitor shipment record
Country of Manufacture
Switzerland
Address
Mitteldorfstrasse 2, CH-9608 Ganterschwil, Switzerland
Switzerland
Switzerland
Telephone
+41 (71) 982 88 11
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Mode of operation
Chemical
Sensor type(s)
N/A
Maximum sensor lead length (metres)
0.00
Maximum number of sensor channels
0.00
External dimensions height (mm)
120.00
External dimensions width (mm)
150.00
Activation mechanism
Activation strip
Material
Card
Fixing mechanism
None
CE marking
Yes
Mechanical and electronic devices only
Power source
Passive device
Battery type
N/A
Battery shelf life (year)
N/A
Activated battery life
N/A
Alarm type
Visual
User interface
N/A
Display medium
---
Recording medium
Not applicable
Price and shipping
Shipping volume (m3)
0.01
Weight per Package (Kg)
0.0060
Units per package
250.00
Weight per Unit (Kg)
1.8400
Minimum order
500.00
Incoterms
EXW
Price 1
Price at 500 units: 7.10 USD per unit
Year of base price
2022
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification: E006/IN02.1
Applicable PQS VP(s): E006/IN02-VP.1
Applicable PQS VP(s): E006/IN02-VP.1
Product Sites
Berlinger & Co. AG
Mitteldorfstrasse 2, CH-9608 Ganterschwil, Switzerland
Switzerland
Document Details
temperature limits per indicator and are available for the following temperatures: -15 °C / -4 °C / 0 °C/ +5 °C / +10 °C / +10°C

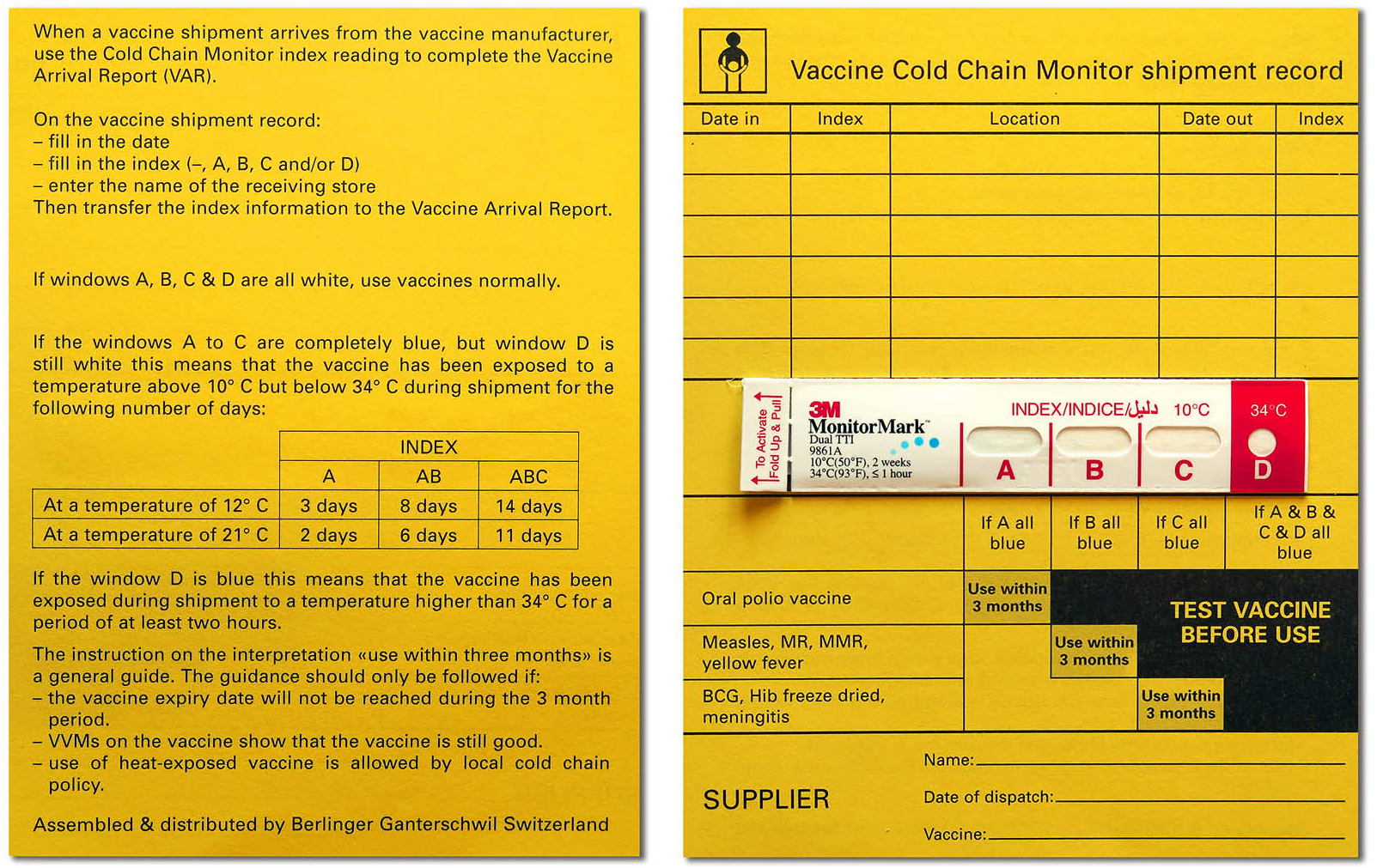

and +34 °C / +26 °C/ +31°C. The well-known VCCM card is equipped with the only indicator that can measure two temperatures (10 °C and +34 °C).
Discounts apply for large orders.
Testing laboratory: Wolff Laboratory (1988)
