SF - Immunization Devices
Product Details
WHO Product ID
E004-065
Status
Prequalified
Date of acceptance
Type
E004: Cold boxes and vaccine carriers
Product Desc

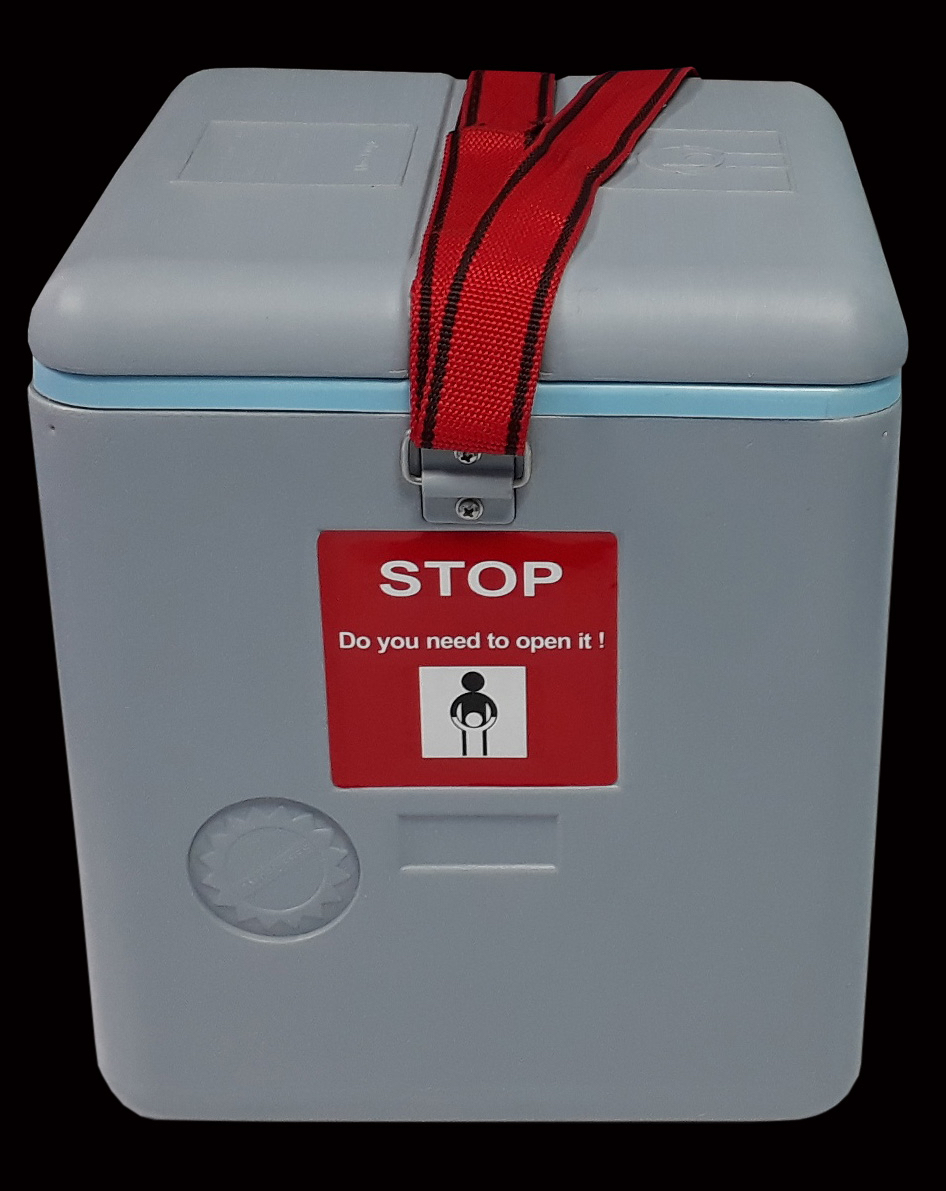

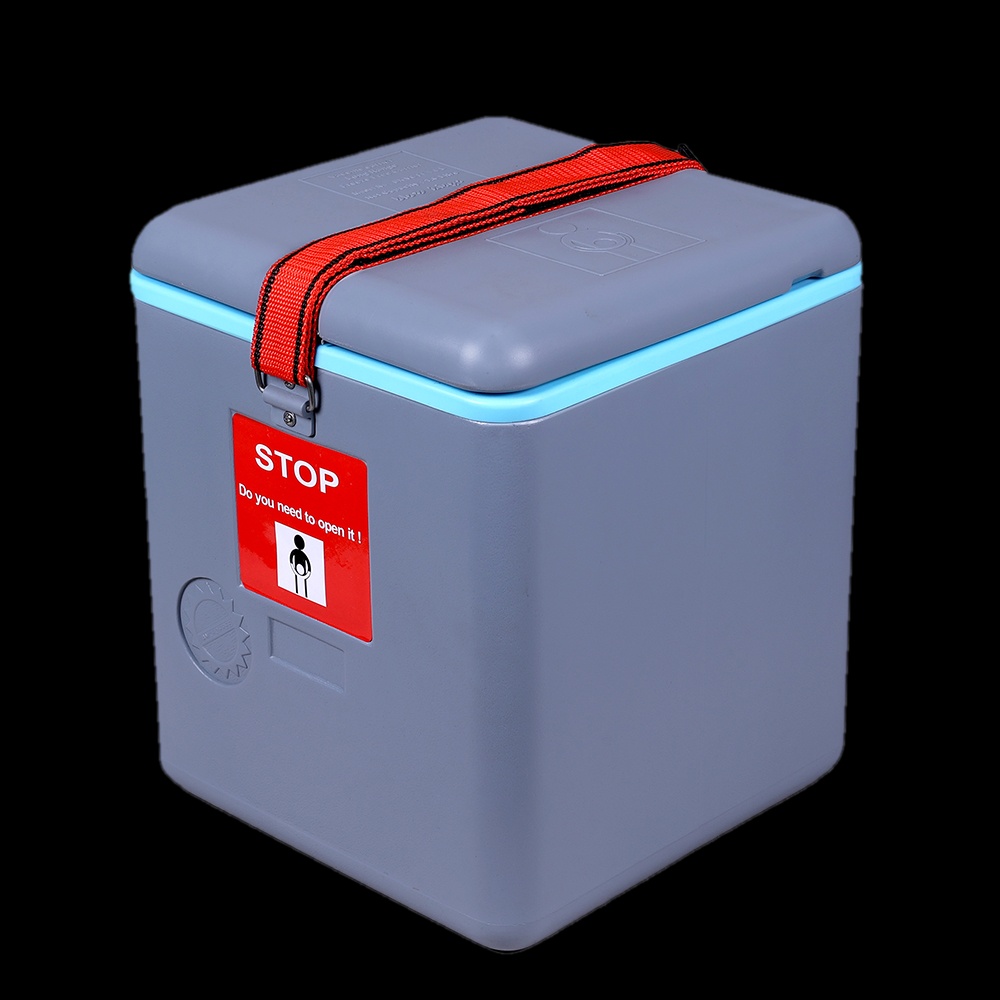

Freeze-Free Vaccne carrier long range
Appliance Type
E004
Manufacturer
Blowkings
53-C Mittal Court Nariman Point Mumbai 400021 India
India
Valid until
Specifications
Product identification
Manufacturers Reference
BK-VC-FF 2.4 L
Country of Manufacture
India
Product specifications - Main
Vaccine storage capacity (Litre)
2.40
Cold life at +43°C * (hrs:mn)
39:26
Warm life at - 20°C *(hrs:mn)
23:05
External dimensions length (mm)
325.00
External dimensions height (mm)
327.00
Weight empty(Kg)
3.50
External dimensions width (mm)
325.00
Weight fully loaded (Kg)
7.95
Internal dimensions (length, mm)
114.00
Minimum Rated Ambient Temp (°C)
15.00
Internal dimensions (height, mm)
182.00
Internal dimensions (width, mm)
115.00
Number coolant packs
4.00
Model coolant pack
0.6 L
Coolant packs supplied
Yes
Product specifications - Materials & construction
Insulation materials
Polyurethane
External materials
Polyethylene
Internal lining materials
Polyethylene
Price and shipping
Price 1
$55
Shipping weight per carton(kg)
18
Year of base price
2022
Minimum order
4.00
Incoterms
EXW
Quality standard
Quality Standard
Other
Specification Reference
Applicable PQS specification: E004/VC02.1
Applicable PQS VP(s): E004/VC02-VP.1
Applicable PQS VP(s): E004/VC02-VP.1
Quality standard (Other)
ISO 9001:2008
Subject to Field Validation
N/A
Date field validation
Verification
Verification Report Reference
CE-JOB-NDA-22-000873-001
Product Sites
Blowkings
53-C Mittal Court Nariman Point Mumbai 400021 India
India
Document Details
Range storage capacity: > 20 L
