SF - Immunization Devices
Download file
Product Details
Product name
2CPCPVC-001
IMD-PQS Code
E004-061
Status
Prequalified
Date of acceptance
29 Nov 2021
Appliance type
E004
Product description

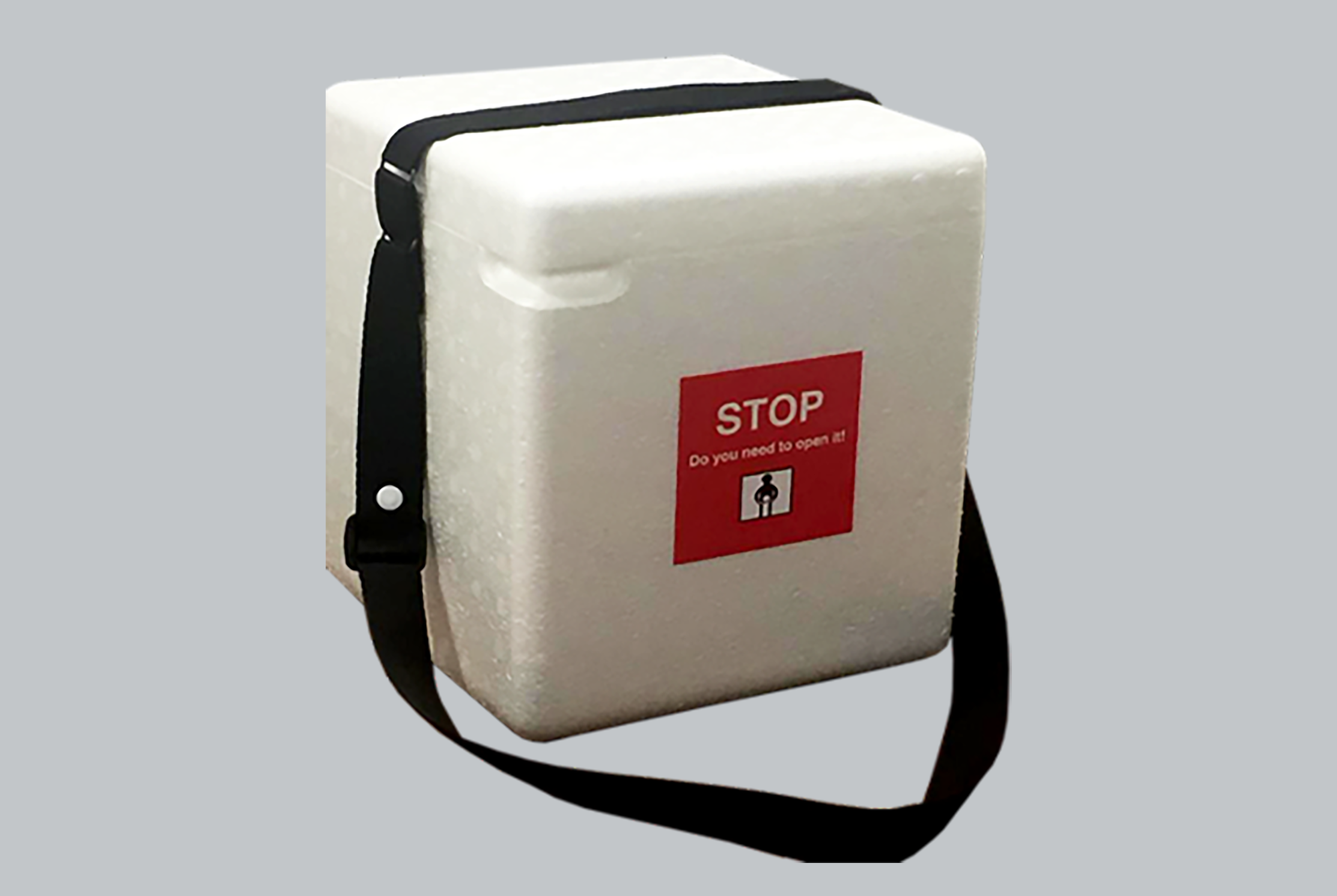

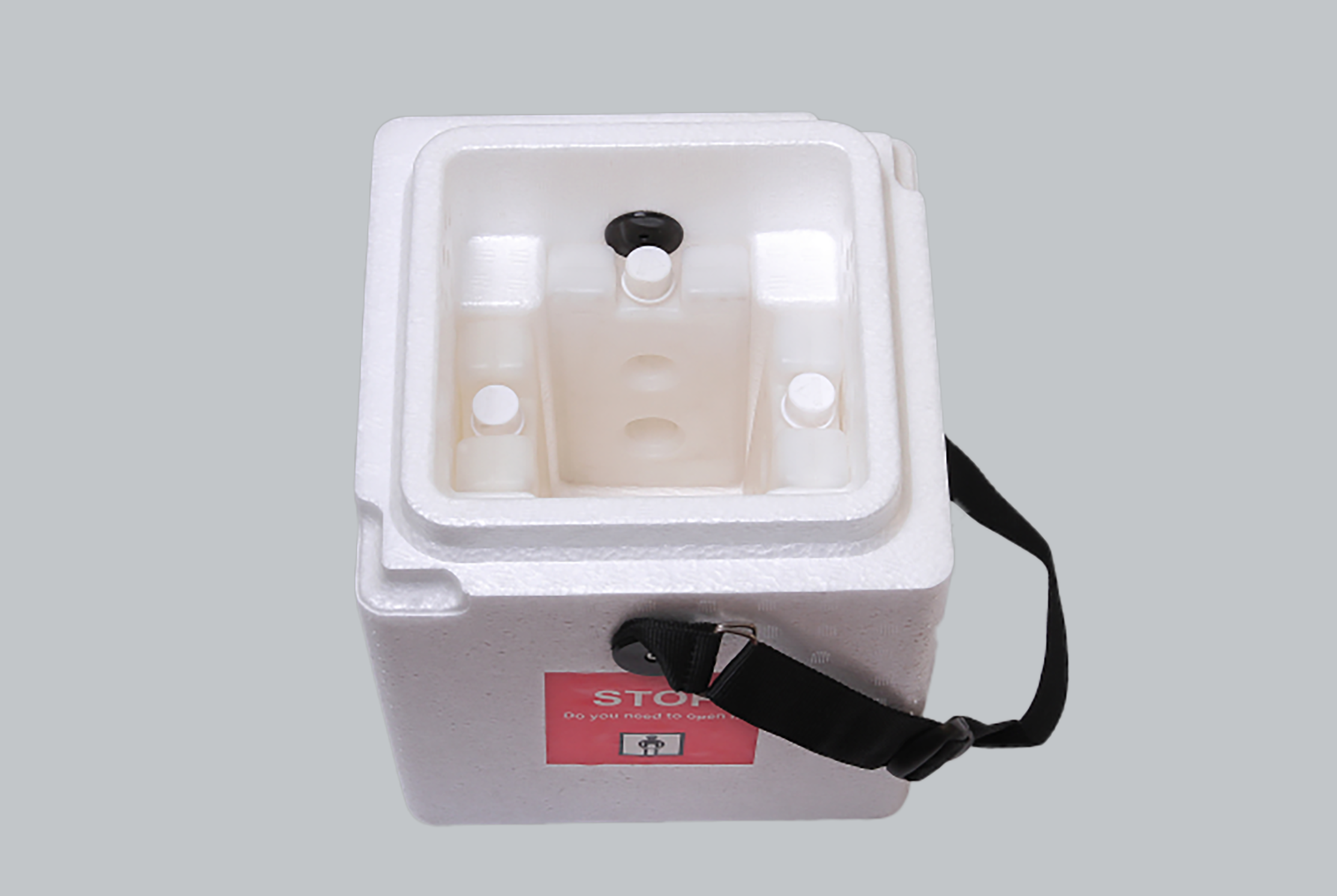

Vaccine Carrier (Short Range)
Manufacturer
PARACOAT PRODUCTS LTD
Manufacturer Reference
2CPCPVC-001
Country of Manufacture
India
Address
SALES & MARKETING - 201, Udyog Vihar, Phase-IV, Gurugram, Haryana, India, Pin-122016
India
India
Telephone
+91-124-4224115
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Vaccine storage capacity (Litre)
1.77
Gross storage volume (Litre)
4.0000
External dimensions length (mm)
246.00
External dimensions height (mm)
247.00
External dimensions width (mm)
305.00
Internal dimensions (length, mm)
181.00
Internal dimensions (height, mm)
179.00
Internal dimensions (width, mm)
174.00
Cold life at +43°C * (hrs:mn)
23:58
Warm life at - 20°C *(hrs:mn)
9:09
Cool life at +43°C *(hrs:mn)
6:33
Weight empty(Kg)
0.8200
Weight fully loaded (Kg)
2.95
Coolant packs
0.4 L
Number coolant packs
4.00
Type coolant packs
Water packs
Model coolant pack
AIIP-04
Coolant packs supplied
Yes
Product specifications - Materials & construction
Insulation materials
Other
Insulation thickness (mm)
30 mm
External materials
Expandable Polypropylene
Internal lining materials
Expandable Polypropylene
Lid type fixing
Removable lid
Comments
Vaccine storage dimensions (cm): 104 mm x 104 mm x 164 mm
Price and shipping
Shipping volume (m3)
8.2E-4
Shipping weight per carton(kg)
3.3
Pieces per package
4 per carton
Minimum order
8.00
Year of base price
2021
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E004/VC01.2
Applicable PQS VP(s):
Applicable PQS VP(s):
Subject to Field Validation
N/A
Verification
Verification Laboratory
0013X00004Ml8OaQAJ
Verification Report Reference
CE-JOB-NDA-21-000620-001
Product Sites
PARACOAT PRODUCTS LTD
SALES & MARKETING - 201, Udyog Vihar, Phase-IV, Gurugram, Haryana, India, Pin-122016
India
Document Details
