SF - Immunization Devices
Download file
Product Details
Product name
RCW1
IMD-PQS Code
E004-059
Status
Prequalified
Date of acceptance
30 Sep 2020
Appliance type
E004
Product description

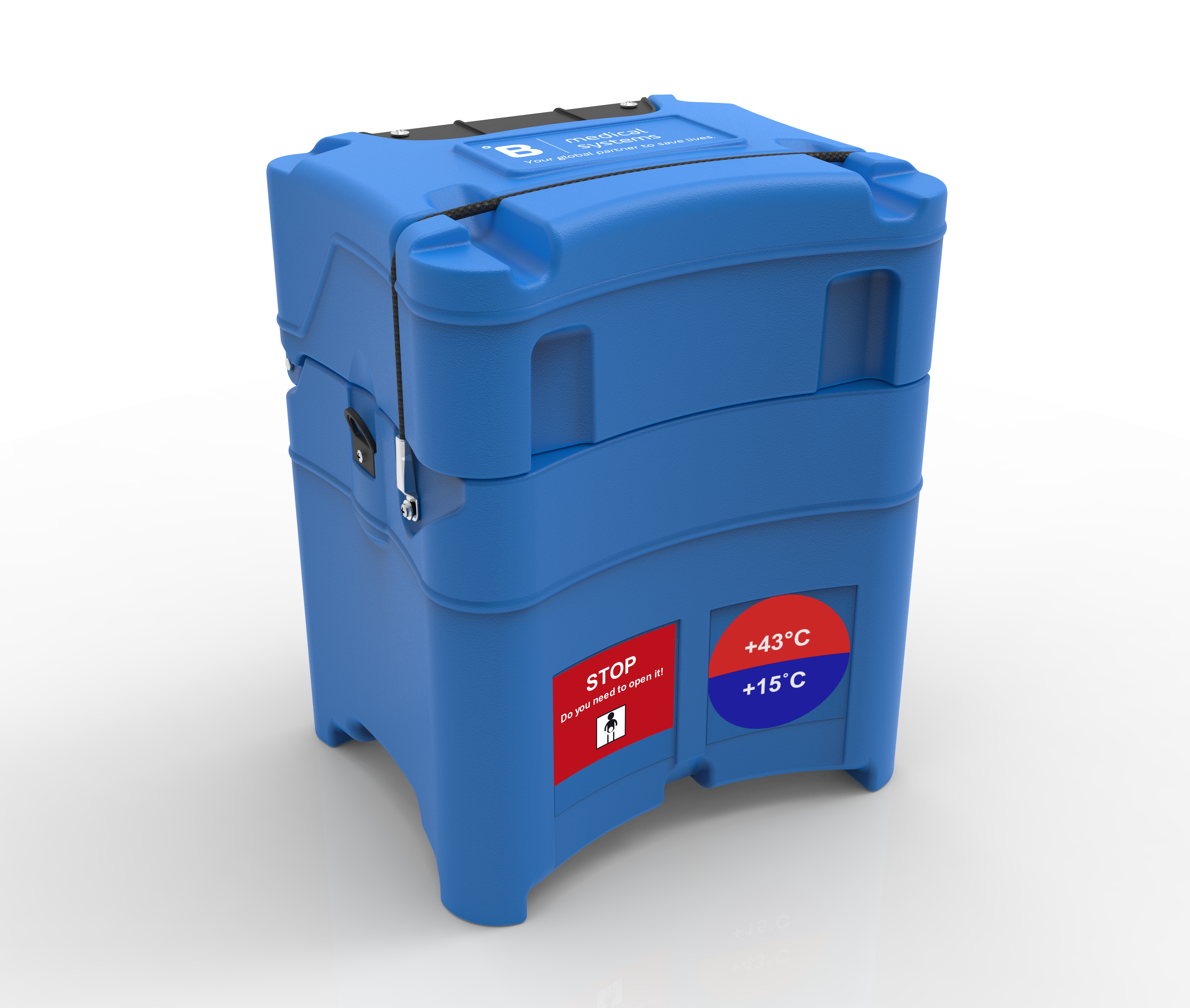

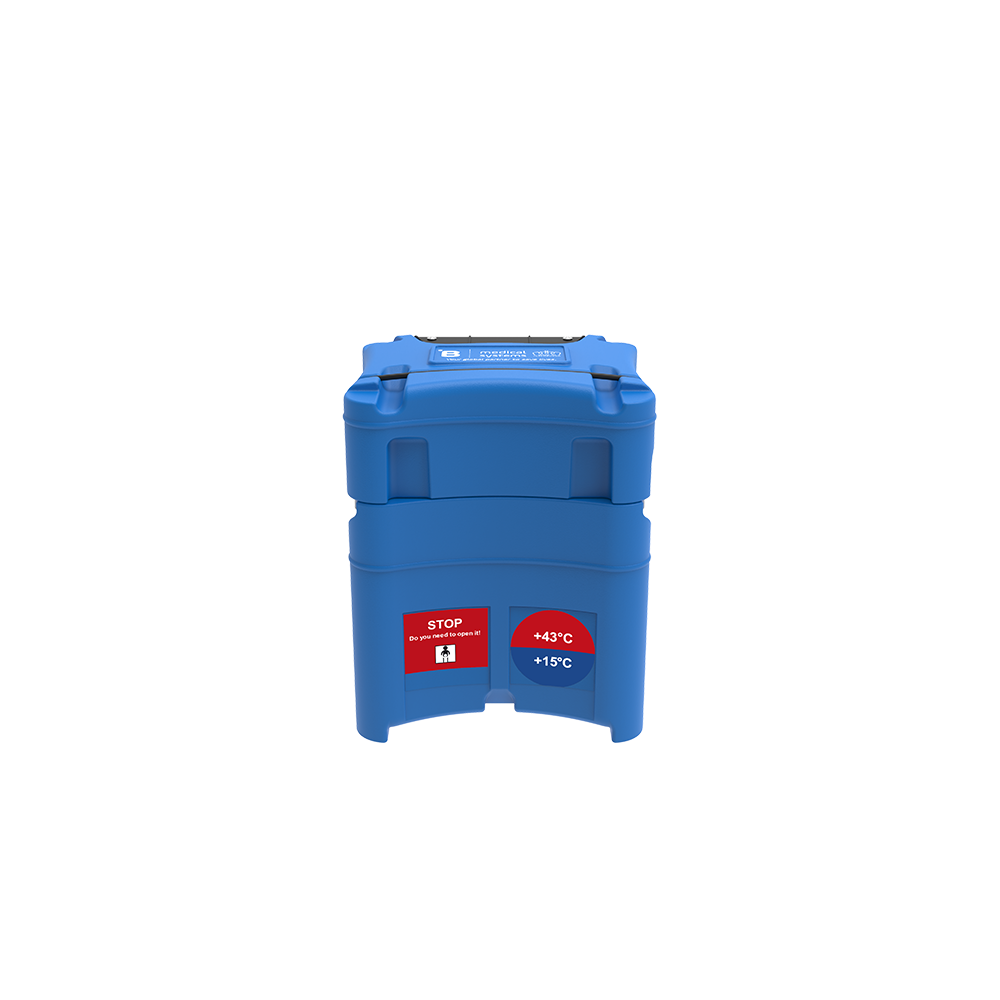

Vaccine Carrier Freeze-Free
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
RCW1
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Vaccine storage capacity (Litre)
1.04
Gross storage volume (Litre)
1.6400
External dimensions length (mm)
347.00
External dimensions height (mm)
430.00
External dimensions width (mm)
281.00
Internal dimensions (length, mm)
223.00
Internal dimensions (height, mm)
208.00
Internal dimensions (width, mm)
139.00
Cold life at +43°C * (hrs:mn)
32:07
Weight empty(Kg)
4.8000
Weight fully loaded (Kg)
7.60
Minimum Rated Ambient Temp (°C)
15.00
Coolant packs
0.6 L
Number coolant packs
3.00
Type coolant packs
Water packs
Model coolant pack
0.6 L
Coolant packs supplied
Yes
Product specifications - Materials & construction
Insulation materials
Polyurethane
Insulation thickness (mm)
51 - 116
Container type
Vaccine carrier
External materials
Polythene & POM
Internal lining materials
Polythene & POM
Lid type fixing
Fixed hinges
Price and shipping
Shipping volume (m3)
0.047
Shipping weight per carton(kg)
7
Pieces per package
1
Minimum order
1.00
Price 1
> 100 units 164€
Year of base price
2025
Incoterms
EXW
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: E004/VC02.1
Applicable PQS VP(s): E004/VC02-VP.1
Applicable PQS VP(s): E004/VC02-VP.1
Subject to Field Validation
N/A
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO-19-002
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
3 waterpacks 0.6L;
1 carrying strap;
1 crystal thermometer;
1 electric thermometer with solar digital display;
3 vaccine vial holders with 6 indentations (to hold open vaccine vials).
Options: Backpack.
Vaccine storage dimensions: 103mm (diameter) x 208mm (height).
