E004-032

SF - Immunization Devices
Download file
Product Details
Product name

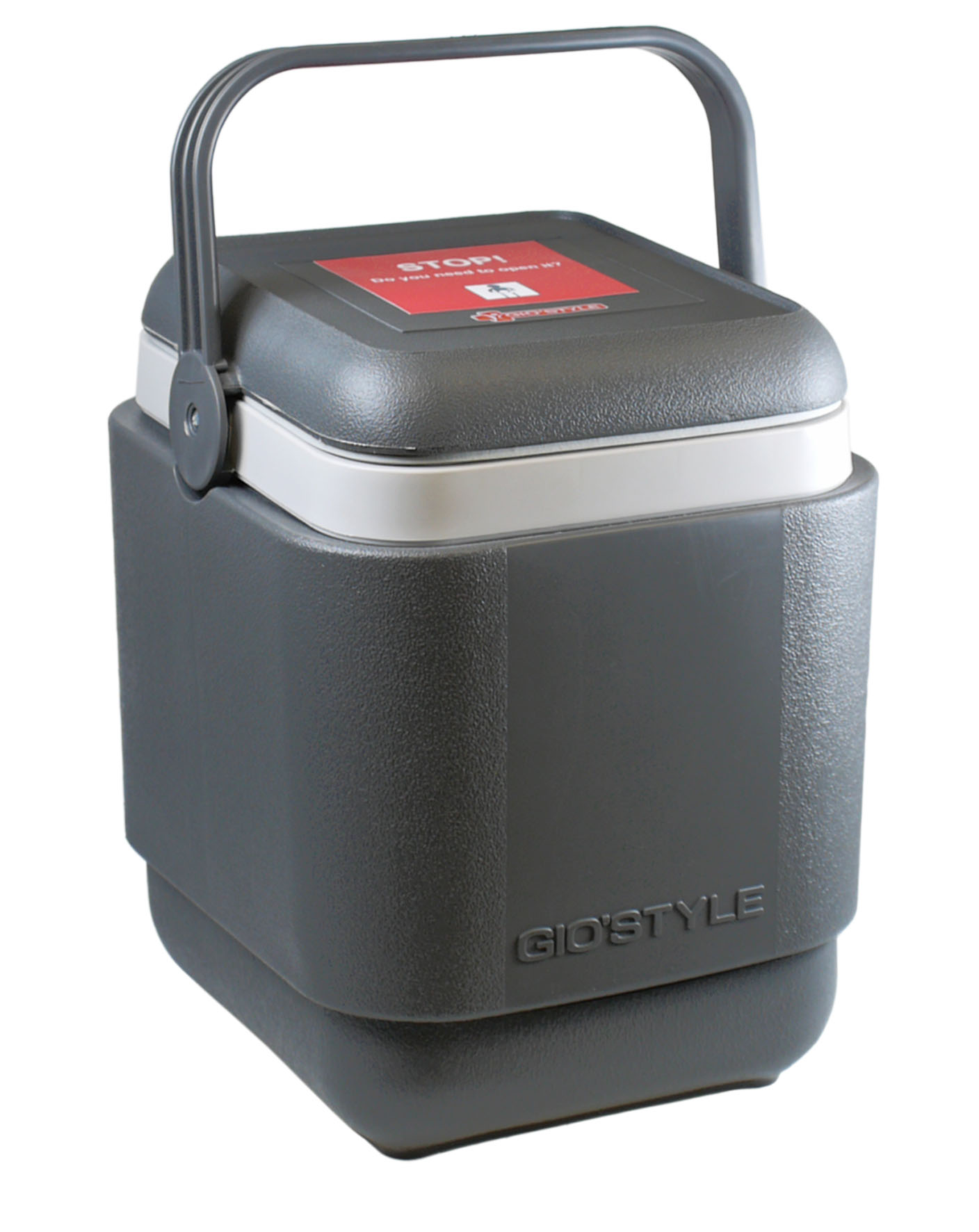

Gio'Style VC 2.6L
IMD-PQS Code
E004-032
Status
Prequalified
Date of acceptance
20 Jan 2011
Appliance type
E004
Product description
Vaccine carrier LR 2.6L
Manufacturer
Giostyle SpA
Manufacturer Reference
Gio'Style VC 2.6L
Country of Manufacture
Italy
Address
Giostyle SpA Via Battaina 393 24059 Urgnano (BG) Italy
Italy
Telephone
+39 035 4188501
Website address
Valid until
31 May 2026
Specifications

Product specifications - Main

Vaccine storage capacity (Litre)
2.60
Gross storage volume (Litre)
2.6700
External dimensions length (mm)
290.00
External dimensions height (mm)
320.00
External dimensions width (mm)
240.00
Internal dimensions (length, mm)
220.00
Internal dimensions (height, mm)
240.00
Internal dimensions (width, mm)
180.00
Cold life at +43°C * (hrs:mn)
41:29
Warm life at - 20°C *(hrs:mn)
11:36
Cool life at +43°C *(hrs:mn)
12:10
Weight empty(Kg)
1.8000
Weight fully loaded (Kg)
6.50
Coolant packs
0.4 L
Number coolant packs
8.00
Type coolant packs
Water packs
Model coolant pack
0.4 L
Coolant packs supplied
Yes

Product specifications - Materials & construction

Insulation materials
Polyurethane
Insulation thickness (mm)
25 - 35 mm
External materials
Polypropylene
Internal lining materials
Polypropylene
Lid type fixing
Removable lid
Comments
Vaccine storage dimensions (cm): 14.5 x 11.5 x 16.0 cm
Range storage capacity: 2 - 5 L

Price and shipping

Shipping volume (m3)
0.18
Shipping weight per carton(kg)
18.5
Pieces per package
8 units
Minimum order
8.00
Price 1
8 or more units: 25.90 US$
Year of base price
2011
Incoterms
EXW

Quality standard

Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification: E004/VC01.2
Applicable PQS VP(s): E004/VC01-VP.2
Subject to Field Validation
N/A

Verification

Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO-10-003
Product Sites
Giostyle SpA
Giostyle SpA Via Battaina 393 24059 Urgnano (BG) Italy
Italy
Document Details
