E004-003

SF - Immunization Devices
Download file
Product Details
Product name
RCW8
IMD-PQS Code
E004-003
Status
Prequalified
Date of acceptance
22 Mar 2010
Appliance type
E004
Product description

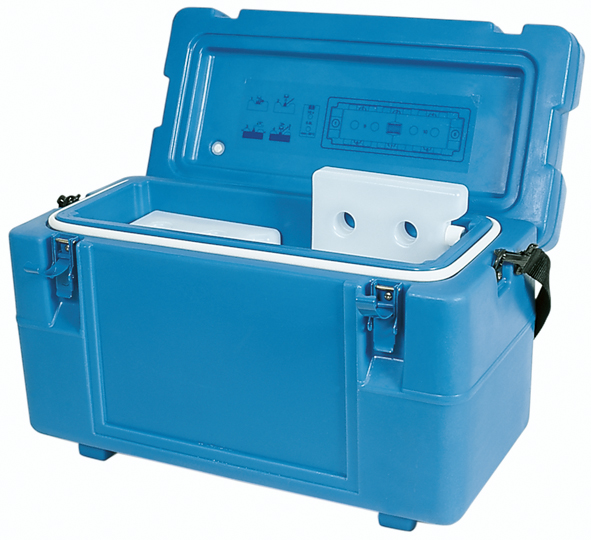

Cold Box SR 6L
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
RCW8
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Website address
Valid until
31 May 2026
Specifications

Product specifications - Main

Vaccine storage capacity (Litre)
6.00
Gross storage volume (Litre)
7.0500
External dimensions length (mm)
588.00
External dimensions height (mm)
437.00
External dimensions width (mm)
288.00
Internal dimensions (length, mm)
460.00
Internal dimensions (height, mm)
245.00
Internal dimensions (width, mm)
180.00
Cold life at +43°C * (hrs:mn)
57:9
Warm life at - 20°C *(hrs:mn)
21:6
Cool life at +43°C *(hrs:mn)
12:00
Weight empty(Kg)
6.8000
Weight fully loaded (Kg)
16.40
Coolant packs
0.3 L and 0.6 L
Number coolant packs
12.00
Type coolant packs
Water packs
Model coolant pack
10 x 06 l + 2 x 03 l
Coolant packs supplied
Yes

Product specifications - Materials & construction

Insulation materials
Polyurethane
Insulation thickness (mm)
50 - 60 mm
Container type
Cold box
External materials
Polyethylene
Internal lining materials
Polyethylene
Lid type fixing
Fixed hinges
Comments
Warm life at - 20°C: 216 hours
Range storage capacity: 5 - 10 L
Title: CB RCW8 6L

Accessories: 10 waterpack of 0.6L; 2 waterpacks of 0.3L; crystal thermometer; inserts (small and large); carrying strap

Price and shipping

Shipping volume (m3)
0.089
Shipping weight per carton(kg)
10
Pieces per package
1 unit
Minimum order
1.00
Price 1
>100 or more units: 346 €
Year of base price
2025
Incoterms
EXW

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: E004/VC1.1
Applicable PQS VP(s): E004/VC1-VP.1
Subject to Field Validation
N/A

Verification

Verification Laboratory
0013X00004Ml8OaQAJ
Verification Report Reference
A65524b
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
