E004-002

SF - Immunization Devices
Download file
Product Details
Product name
RCW4
IMD-PQS Code
E004-002
Status
Prequalified
Date of acceptance
22 Mar 2010
Appliance type
E004
Product description

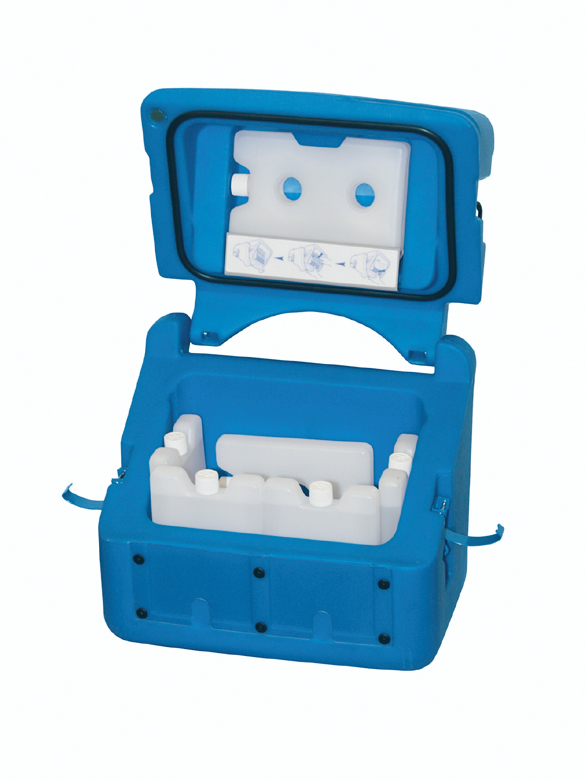

Vaccine Carrier LR 3L
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
RCW4
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Website address
Valid until
31 May 2026
Specifications

Product specifications - Main

Vaccine storage capacity (Litre)
3.00
Gross storage volume (Litre)
3.6100
External dimensions length (mm)
362.00
External dimensions height (mm)
299.00
External dimensions width (mm)
283.00
Internal dimensions (length, mm)
260.00
Internal dimensions (height, mm)
186.00
Internal dimensions (width, mm)
156.00
Cold life at +43°C * (hrs:mn)
30:3
Warm life at - 20°C *(hrs:mn)
12:9
Cool life at +43°C *(hrs:mn)
6:7
Weight empty(Kg)
3.1000
Weight fully loaded (Kg)
7.30
Coolant packs
0.3 L and 0.6 L
Number coolant packs
7.00
Type coolant packs
Water packs
Model coolant pack
6 x 03 l + 1 x 06 l
Coolant packs supplied
Yes

Product specifications - Materials & construction

Insulation materials
Polyurethane
Insulation thickness (mm)
23 - 27 mm
Container type
Vaccine carrier
External materials
Polyethylene
Internal lining materials
Polyethylene
Lid type fixing
Fixed hinges
Comments
Warm life at - 20°C: 129 hours
Range storage capacity: 2 - 5 L
Title: VC 3L RCW4 Dometic

Accessories: 6 waterpacks of 0.3L; 1 waterpack of 0.6L; 1 crystal thermometer; inserts (small and large); carrying strap.

Price and shipping

Shipping volume (m3)
0.036
Shipping weight per carton(kg)
4
Pieces per package
1 unit
Minimum order
1.00
Price 1
>100 units: 296 €
Year of base price
2025
Incoterms
EXW

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Subject to Field Validation
N/A

Verification

Verification Laboratory
0013X00004Ml8OaQAJ
Verification Report Reference
A65524a
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
