Product Details
Product name

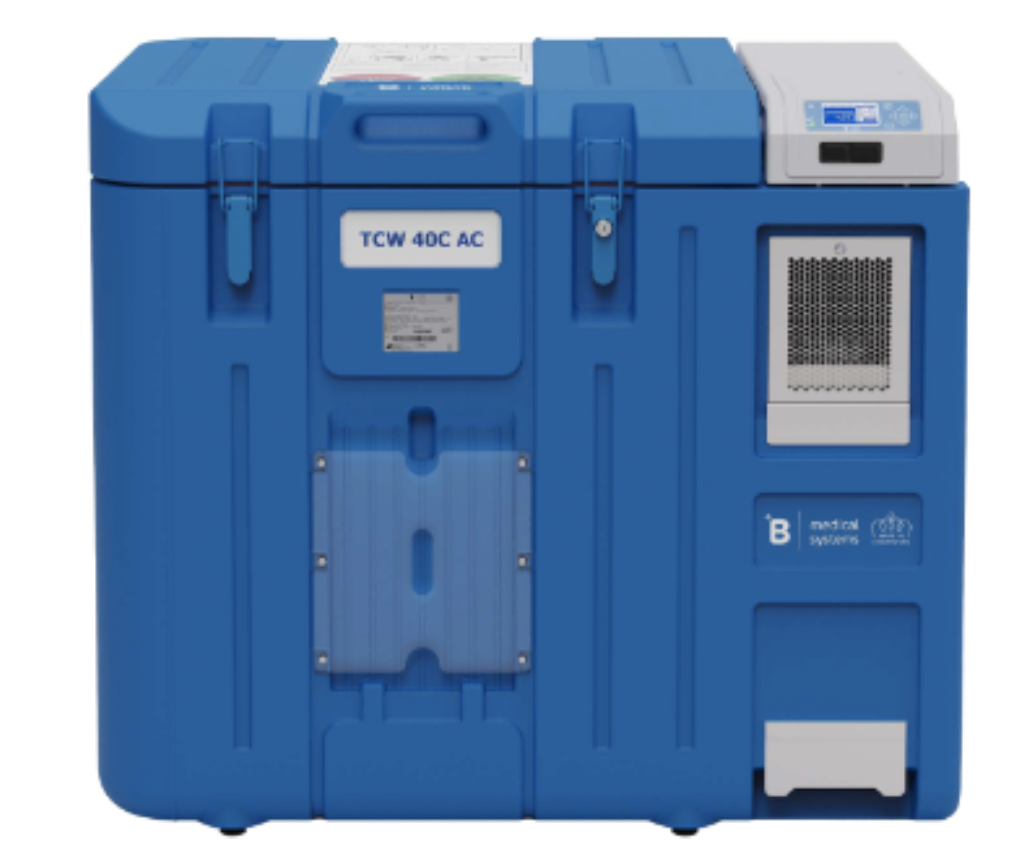

TCW 40C AC
IMD-PQS Code
E003-170
Status
Prequalified
Date of acceptance
09 Jun 2026
Appliance type
E003
Product description
Combined icelined refrigerator/waterpacks freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 40C AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Relative Humidity (Min)
5.00
Relative Humidity (Max)
95.00
Freeze protection
Grade A
Hold over time (hours:mn)
144:00
External dimensions length (mm)
780.00
External dimensions width (mm)
1055.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric - Compression
Energy source
100-240V / 50-60Hz
Lining
Ice
Energy Consumption During Freezing (kWh/24h)
1.3200
Energy Consumption Intermittent Power (kWh/24h)
1.0600
Energy Consumption Cool Down (kWh/24h)
0.9900
Energy Consumption Continuous Power (kWh/24h)
1.1600
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
36.500
Refrigerator's gross volume (Litres)
47.000
Autonomy (hrs:mn)
144:00
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer net volume
4.8
Freezer's gross volume (Litres)
4.80
Waterpack freezing capacity (Kg/24 hrs)
4.80
Waterpack storage capacity (Litres)
4.80
List of accessories
- 2 keys.
- 2 spacers.
- 1 brush.
- 1 travel plug.
- 1 wrench.
- baskets.
- 1 user manual ( user choice of language)
- 1 recycling instructions.
- 8 water-pack holders.
- 8 water-pack 0.6l
- 8 water-pack cap.
- 2 spacers.
- 1 brush.
- 1 travel plug.
- 1 wrench.
- baskets.
- 1 user manual ( user choice of language)
- 1 recycling instructions.
- 8 water-pack holders.
- 8 water-pack 0.6l
- 8 water-pack cap.
List of spare parts, Reference & Price
296.9768.82 VCC COLD CHAIN CONTROLLER
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request to local service provider or B Medical Systems
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request to local service provider or B Medical Systems
Price and shipping
Shipping volume (m3)
0.908
Shipping weight (kg)
130.20
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
For quantities between 1-39 pcs: 5,890 EUR EXW
Price 2
For quantities between 40-99 pcs: 5,596 EUR EXW
Price 3
For quantities above 100pcs: 5,301 EUR EXW
Year of base price
2026
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001 & ISO 13485
Specification Reference
Applicable PQS specification: E003/RF03.7
Applicable PQS VP: E003/RF03-VP.5
Applicable PQS VP: E003/RF03-VP.5
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
CEMAFROID SAS WHO 25-06-Test report_TCW40CAC-corr_1
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
This product also include the latest generation voltage stabilizer with advanced surge protection already compatible with PQS_E007_VS01.6.
A led lighting is also included to allow a proper visibility of the storage compartment at night.
