Product Details

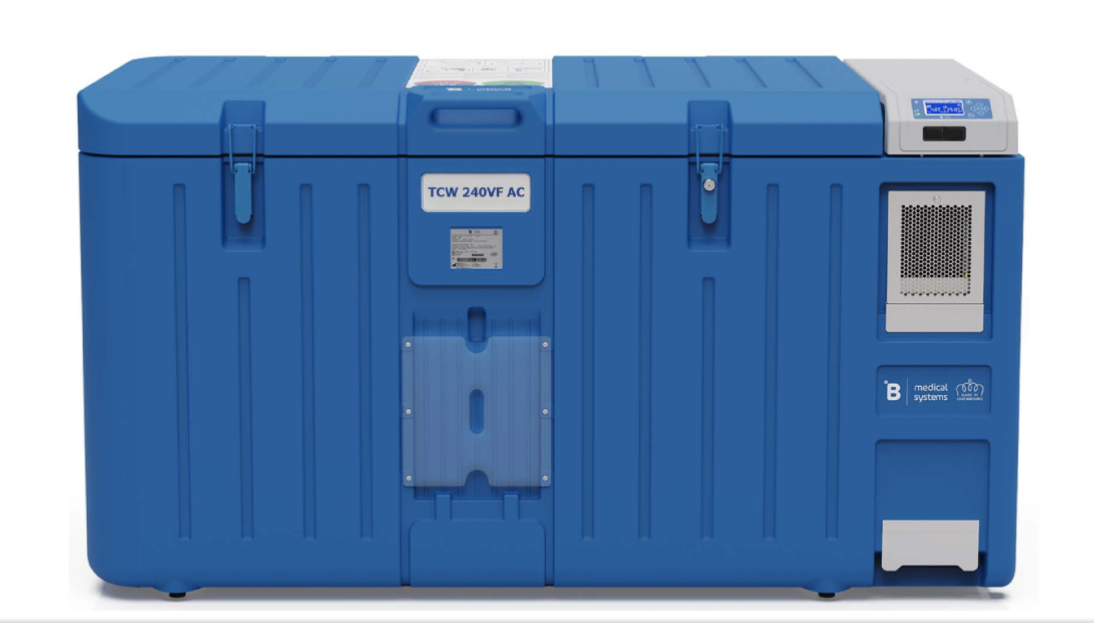

Product name
TCW 240VF AC
IMD-PQS Code
E003-167
Status
Prequalified
Date of acceptance
26 May 2026
Appliance type
E003
Product description
240 liter mains vaccine / water-pack freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 240VF AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Relative Humidity (Min)
5.00
Relative Humidity (Max)
80.00
Hold over time (hours:mn)
17:13
External dimensions length (mm)
1665.00
External dimensions width (mm)
780.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Compression
Energy source
220-240V 50-60 HZ (115V 60Hz as an option)
Lining
Ice
Energy Consumption During Freezing (kWh/24h)
2.7970
Energy Consumption Cool Down (kWh/24h)
2.8140
Product specifications - Additional Refrigerator
Refrigerant type
R290
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
Vaccine / Water-packs
Freezer net volume
240
Freezer's gross volume (Litres)
267.91
List of accessories
2 Keys
2 spacers
4 baskets top
2 baskets bottom
1 wrench
1 brush
1 Travel plug
1 user manual
1 recycling instruction
10 8A Fuses
2 spacers
4 baskets top
2 baskets bottom
1 wrench
1 brush
1 Travel plug
1 user manual
1 recycling instruction
10 8A Fuses
List of spare parts, Reference & Price
296.9768.82 VCC COLD CHAIN CONTROLLER
292.2904.39 - INTERNAL VOLTAGE STABILIZER
292.2904.75 - ECU VOLTAGE STABILIZER
296.9805.13 SENSOR TEMPERATURE REGULATION
296.9805.18 SENSOR HUMIDITY
292.9960.13 FAN
296.9706.79 STARTING CAPACITOR
296.9701.72 COMPRESSOR
296.9706.81 COMPRESSOR MOTOR PROTECTOR
296.9706.80 STARTING RELAY
292.2904.39 - INTERNAL VOLTAGE STABILIZER
292.2904.75 - ECU VOLTAGE STABILIZER
296.9805.13 SENSOR TEMPERATURE REGULATION
296.9805.18 SENSOR HUMIDITY
292.9960.13 FAN
296.9706.79 STARTING CAPACITOR
296.9701.72 COMPRESSOR
296.9706.81 COMPRESSOR MOTOR PROTECTOR
296.9706.80 STARTING RELAY
Price and shipping
Shipping volume (m3)
1.41
Shipping weight (kg)
205.30
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
For quantities between 1-39 pcs: 6,490 EUR EXW
Price 2
For quantities between 40-99 pcs: 6,166 EUR EXW
Price 3
For quantities above 100pcs: 5,841 EUR EXW
Year of base price
2026
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO9001, ISO14001, ISO13485
Specification Reference
E003/FZ01-VP.2
Verification
Verification Laboratory
Re/Gent B.V
Address
Lage Dijk 22
Netherlands
Netherlands
Telephone
+31492 476365
Email
Verification Report Reference
Re/Gent B.V. 25322/BM31/V1
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
This product also include the latest generation voltage stabilizer with advanced surge protection already compatible with PQS_E007_VS01.6.
Available as an option in 115V 60Hz power supply.
