Product Details
Product name

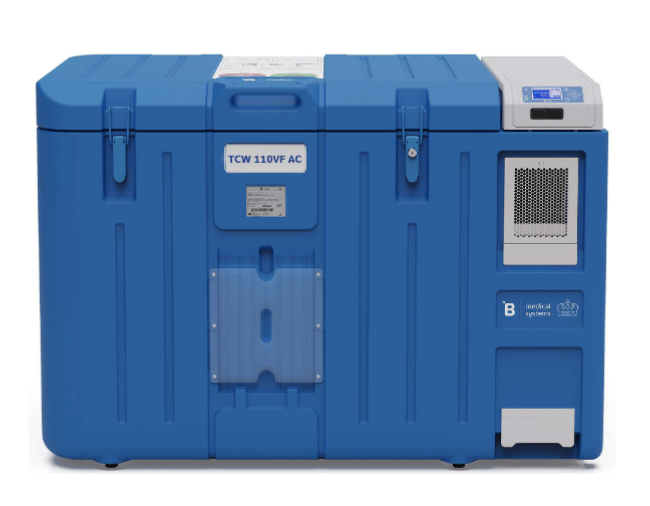

TCW 110VF AC
IMD-PQS Code
E003-166
Status
Prequalified
Date of acceptance
25 May 2026
Appliance type
E003
Product description
Mains-powered vaccine freezer
114 Liter net storage capacity
114 Liter net storage capacity
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 110VF AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Relative Humidity (Min)
5.00
Relative Humidity (Max)
80.00
Hold over time (hours:mn)
16:07
External dimensions length (mm)
1320.00
External dimensions width (mm)
780.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Compression
Energy source
Electric - Mains
Lining
Ice
Energy Consumption Cool Down (kWh/24h)
2.3190
Energy Consumption Continuous Power (kWh/24h)
2.3180
Product specifications - Additional Refrigerator
Refrigerant type
R290
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
Vaccine Freezer
Freezer net volume
114
Freezer's gross volume (Litres)
142.50
List of accessories
Device is supplied with:
2 Keys
2 spacers
2 baskets top
2 baskets bottom
1 wrench
10 8A Fuses
1 Travel plug
1 user manual
1 recycling instruction
1 brush
2 Keys
2 spacers
2 baskets top
2 baskets bottom
1 wrench
10 8A Fuses
1 Travel plug
1 user manual
1 recycling instruction
1 brush
List of spare parts, Reference & Price
296.9768.82 VCC COLD CHAIN CONTROLLER
TBC - INTERNAL VOLTAGE STABILIZER
296.9805.13 SENSOR TEMPERATURE REGULATION
296.9805.18 SENSOR HUMIDITY
292.9960.13 FAN
296.9706.79 STARTING CAPACITOR
296.9701.72 COMPRESSOR
296.9706.81 COMPRESSOR MOTOR PROTECTOR
296.9706.80 STARTING RELAY
Other spare parts available upon request to local service provider or B Medical Systems
TBC - INTERNAL VOLTAGE STABILIZER
296.9805.13 SENSOR TEMPERATURE REGULATION
296.9805.18 SENSOR HUMIDITY
292.9960.13 FAN
296.9706.79 STARTING CAPACITOR
296.9701.72 COMPRESSOR
296.9706.81 COMPRESSOR MOTOR PROTECTOR
296.9706.80 STARTING RELAY
Other spare parts available upon request to local service provider or B Medical Systems
Price and shipping
Shipping volume (m3)
1.128
Shipping weight (kg)
169.10
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
For quantities between 1-39 pcs: 5,690 EUR EXW
Price 2
For quantities between 40-99 pcs: 5,406 EUR EXW
Price 3
For quantities above 100pcs: 5,121 EUR EXW
Year of base price
2026
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001, ISO 13485, ISO 14001
Specification Reference
E003/FZ01-VP.2
Verification
Verification Laboratory
Re/Gent B.V
Address
Lage Dijk 22
Netherlands
Netherlands
Telephone
+31492 476365
Email
Verification Report Reference
Re/Gent B.V. 25321/BM30/V1
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
This product also include the latest generation voltage stabilizer with advanced surge protection already compatible with PQS_E007_VS01.6.
A led lighting is also included to allow a proper visibility of the storage compartment at night.
