Product Details

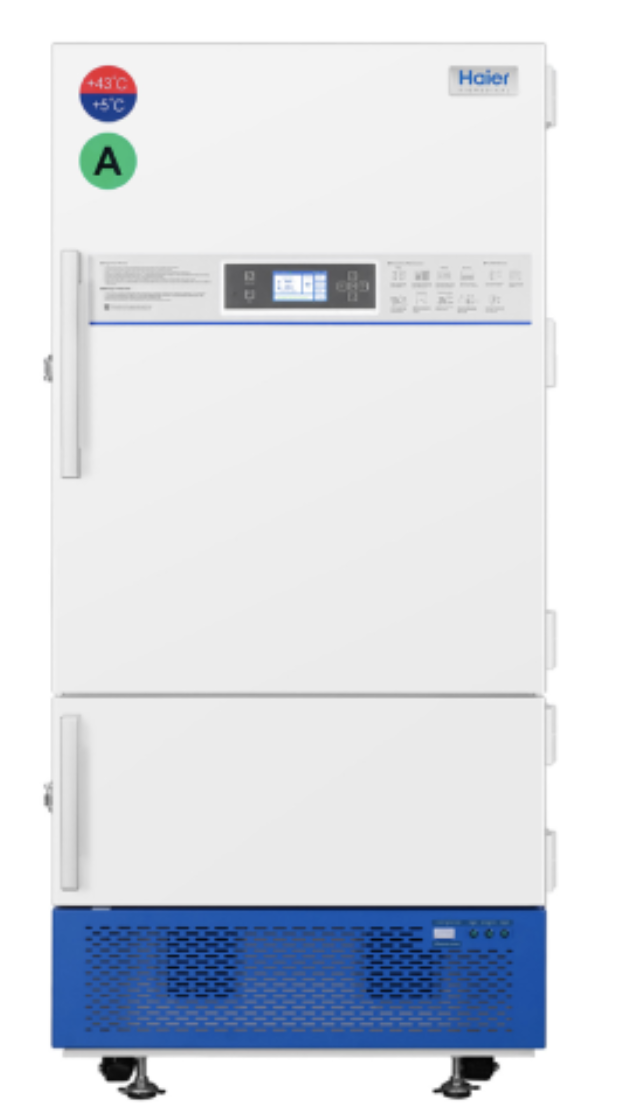

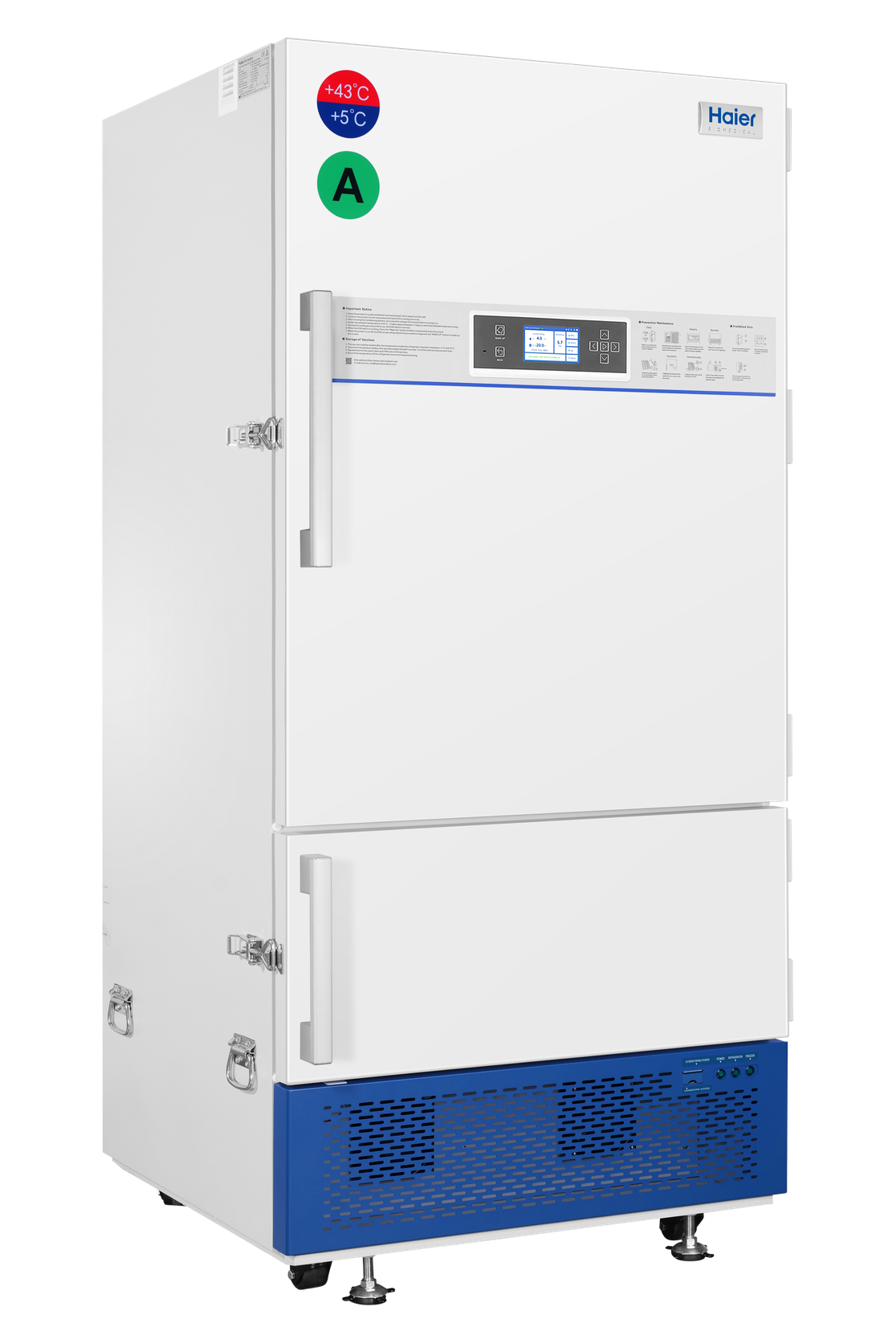

Product name
HBCD-220
IMD-PQS Code
E003-165
Status
Prequalified
Date of acceptance
21 May 2026
Product description
Combined icelined refrigerator/waterpacks freezer
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HBCD-220
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Humidity Control
Other
Humidity Control (Other)
Optional active dehumidification module
Freeze protection
Grade A
Hold over time (hours:mn)
141.7
External dimensions length (mm)
915.00
External dimensions width (mm)
920.00
External dimensions height (mm)
1860.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Energy source
Electric Mains 220-240V 50/60Hz or Electric Mains 115/60Hz optional
Energy Consumption During Freezing (kWh/24h)
1.1000
Energy Consumption Intermittent Power (kWh/24h)
0.7600
Energy Consumption Cool Down (kWh/24h)
0.8900
Energy Consumption Continuous Power (kWh/24h)
1.5000
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
146.000
Refrigerator's gross volume (Litres)
180.000
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
0.00
Product specifications - Additional Freezer
Freezer type
waterpack
Freezer net volume
22.4
Freezer's gross volume (Litres)
40.00
Waterpack freezing capacity (Kg/24 hrs)
3.20
Waterpack storage capacity (Litres)
22.40
Price and shipping
Shipping volume (m3)
1.86
Shipping weight (kg)
234.00
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Year of base price
2025
Quality standard
Quality Standard
ISO 9001: 2000
Verification
Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
China
Telephone
+86 1063162443
Email
Verification Report Reference
WB-25-0098
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
