SF - Immunization Devices
Download file
Product Details
Product name
HTCD-220
IMD-PQS Code
E003-162
Status
Prequalified
Date of acceptance
20 May 2026
Appliance type
E003
Product description

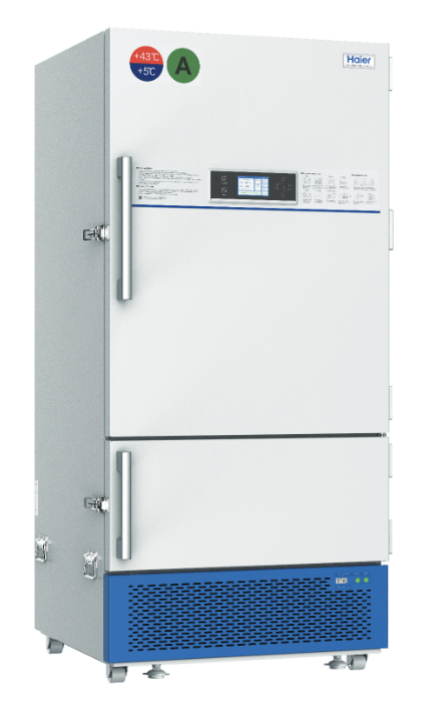

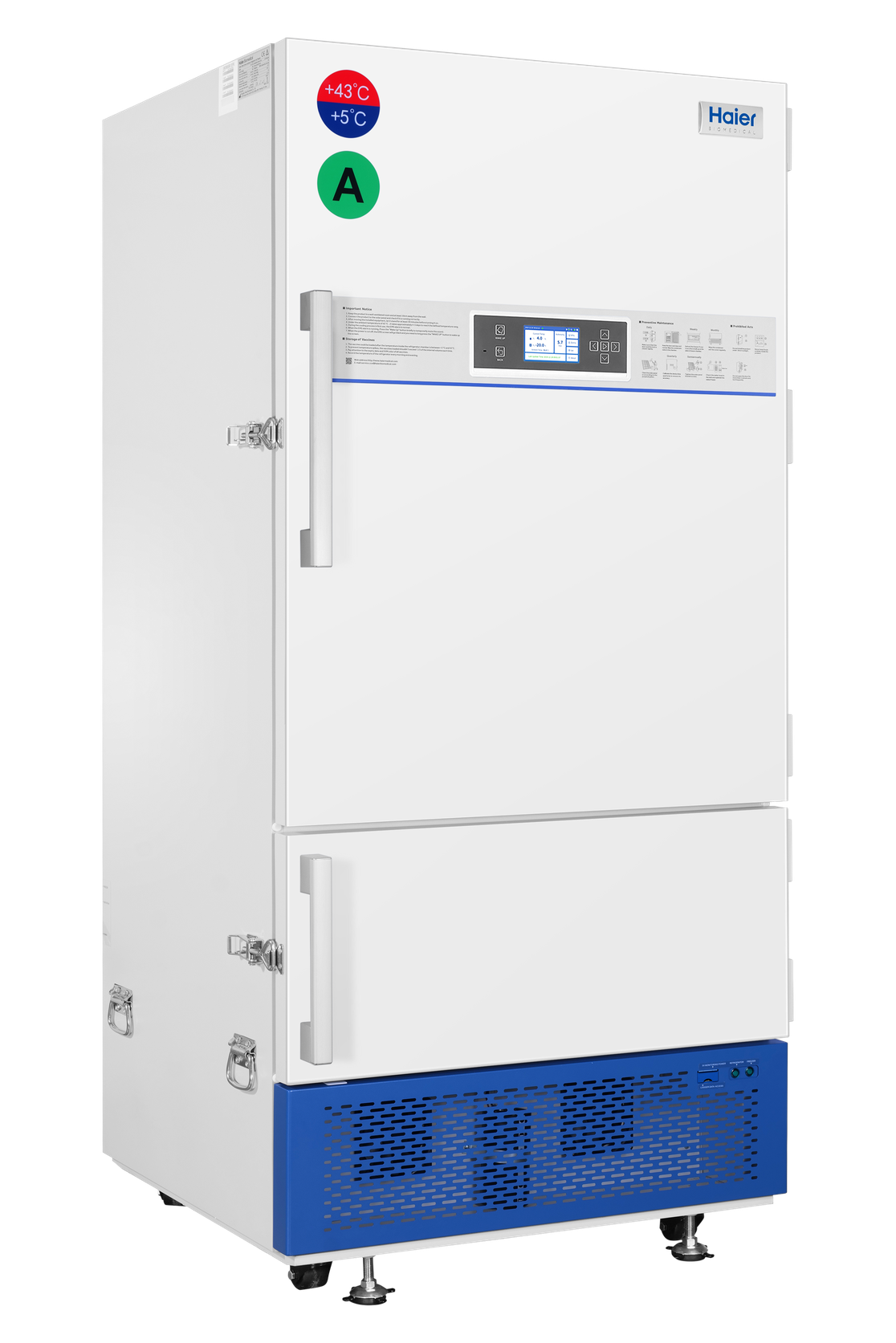

Solar direct drive combined refrigerator/freezer
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HTCD-220
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Humidity Control
Other
Humidity Control (Other)
Optional active dehumidification module
Freeze protection
Grade A
External dimensions length (mm)
920.00
External dimensions width (mm)
915.00
External dimensions height (mm)
1860.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Energy source
Solar Power
Energy Consumption During Freezing (kWh/24h)
1.2000
Energy Consumption Intermittent Power (kWh/24h)
0.8500
Energy Consumption Cool Down (kWh/24h)
1.1000
Energy Consumption Continuous Power (kWh/24h)
0.9000
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
146.000
Refrigerator's gross volume (Litres)
180.000
Autonomy (hrs:mn)
128:16
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
waterpack
Freezer net volume
22.4
Freezer's gross volume (Litres)
40.00
Waterpack freezing capacity (Kg/24 hrs)
2.40
Waterpack storage capacity (Litres)
22.40
Price and shipping
Shipping volume (m3)
1.86
Shipping weight (kg)
234.00
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
7123.2
Year of base price
2025
Quality standard
Quality Standard
ISO 9001: 2000
Verification
Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
China
Telephone
+86 1063162443
Email
Verification Report Reference
WB-25-0125
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
Document Details
