Product Details
Product name

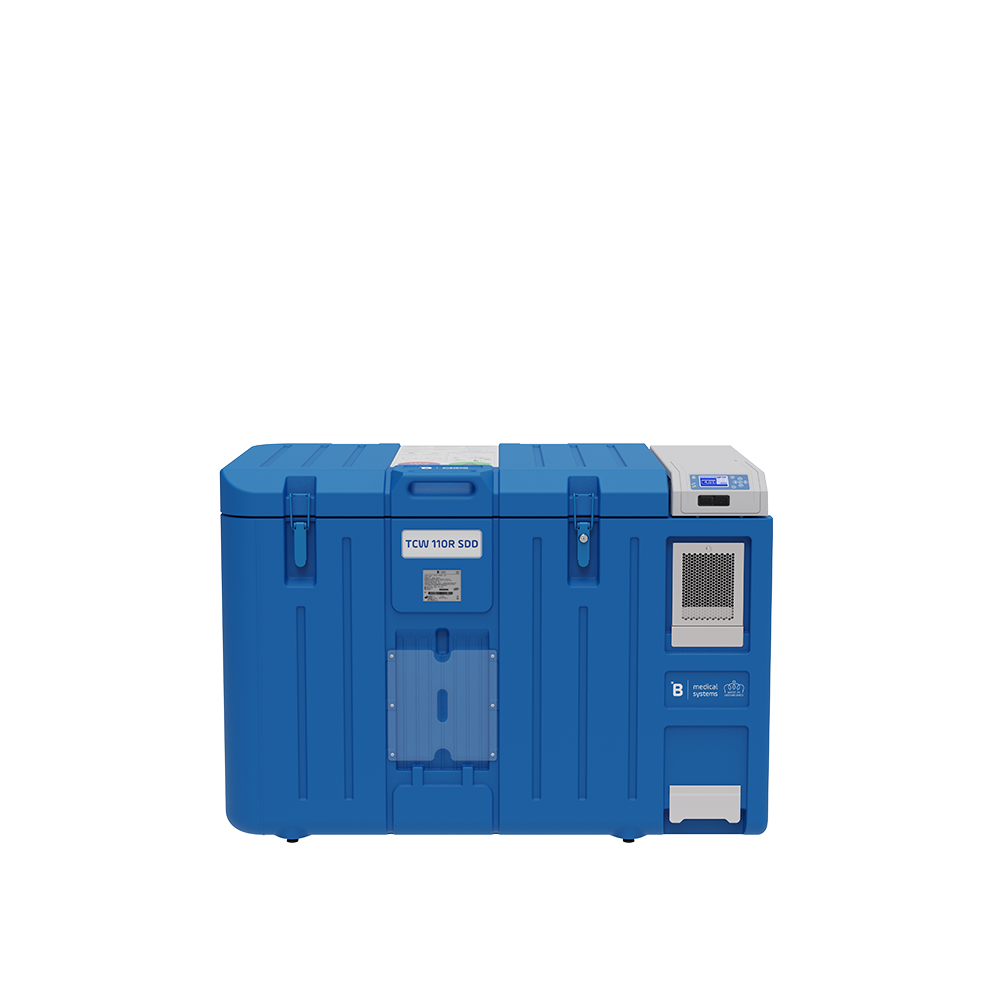

TCW 110R SDD
IMD-PQS Code
E003-156
Status
Prequalified
Date of acceptance
23 Apr 2026
Appliance type
E003
Product description

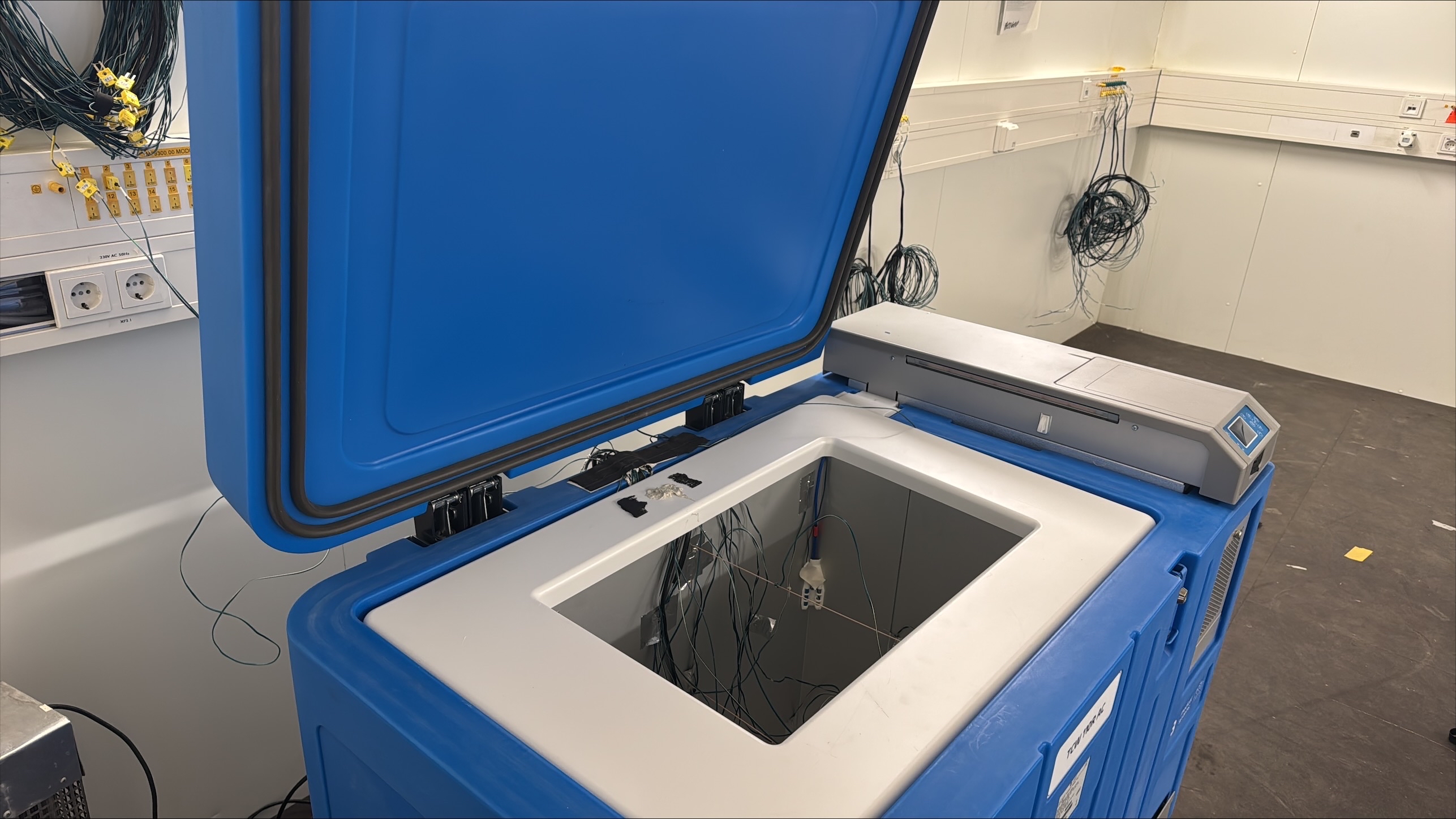

Solar direct drive refrigerator
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 110R SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Relative Humidity (Min)
5.00
Relative Humidity (Max)
95.00
Freeze protection
Grade A
Hold over time (hours:mn)
102:24
External dimensions length (mm)
780.00
External dimensions width (mm)
1320.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar Direct Drive
Lining
Ice
Energy Consumption Intermittent Power (kWh/24h)
0.5800
Energy Consumption Cool Down (kWh/24h)
0.8480
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
114.000
Refrigerator's gross volume (Litres)
142.000
Autonomy (hrs:mn)
102:24
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
List of accessories
- 2 keys.
- 2 spacers.
- Baskets.
- 1 wrench.
- 1 compass.
- 1 user manual ( language of choice).
- 1 recycling instruction
- 1 brush.
- 2 spacers.
- Baskets.
- 1 wrench.
- 1 compass.
- 1 user manual ( language of choice).
- 1 recycling instruction
- 1 brush.
List of spare parts, Reference & Price
296.9768.82 VCC COLD CHAIN CONTROLLER
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request to local service provider or B Medical Systems
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request to local service provider or B Medical Systems
Price and shipping
Shipping volume (m3)
1.128
Shipping weight (kg)
161.70
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
For quantities between 1-39 pcs: 8,390 EUR EXW
Price 2
For quantities between 40-99 pcs: 7,971 EUR EXW
Price 3
For quantities above 100pcs: 7,751 EUR EXW
Year of base price
2026
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001 & ISO 13485
Verification
Verification Laboratory
Re/Gent B.V
Address
Lage Dijk 22
Netherlands
Netherlands
Telephone
+31492 476365
Email
Verification Report Reference
Re/Gent B.V. 25324/BM32/V1
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
This product also include the latest generation of solar generator SG490 RGA designed for this product.
A led lighting is also included to allow a proper visibility of the storage compartment at night.
