Product Details
Product name
TCW 40C SDD
IMD-PQS Code
E003-153
Status
Prequalified
Date of acceptance
20 Apr 2026
Appliance type
E003
Product description

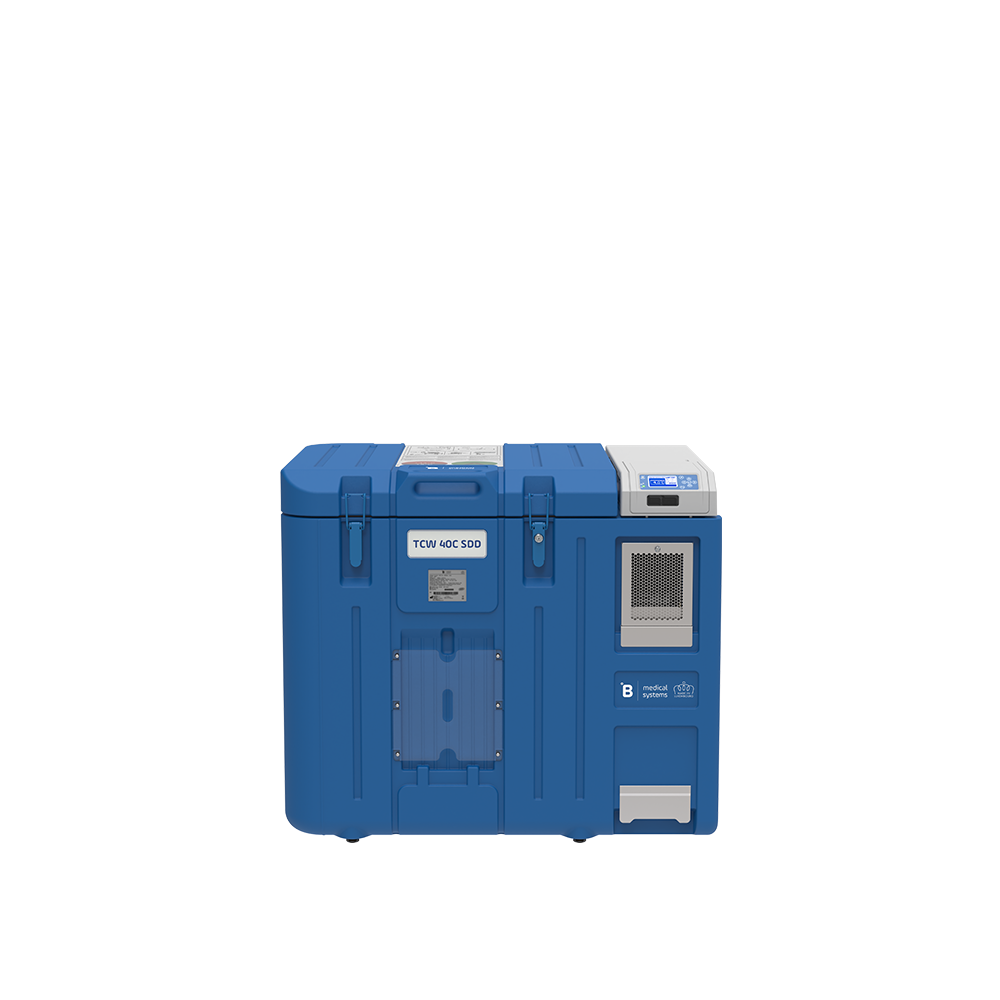

Solar direct drive combined refrigerator/freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 40C SDD
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Relative Humidity (Min)
5.00
Relative Humidity (Max)
95.00
Freeze protection
Grade A
Hold over time (hours:mn)
104:00
External dimensions length (mm)
780.00
External dimensions width (mm)
1055.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric - Compression
Energy source
Solar Direct Drive
Lining
Ice
Energy Consumption During Freezing (kWh/24h)
0.7700
Energy Consumption Intermittent Power (kWh/24h)
0.6800
Energy Consumption Cool Down (kWh/24h)
0.7100
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
36.000
Refrigerator's gross volume (Litres)
47.000
Autonomy (hrs:mn)
104
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
Waterpack freezer
Freezer net volume
4.8
Freezer's gross volume (Litres)
4.80
Waterpack freezing capacity (Kg/24 hrs)
4.80
Waterpack storage capacity (Litres)
4.80
List of accessories
- 2 keys.
- 2 spacers.
- baskets.
- 1 wrench.
- 1 compass.
- 1 user manual ( language of choice).
- 1 recycling instruction
- 1 brush.
- 8 water-pack holders.
- 8 water-packs 0.6l.
- 8 water-pack cap
- 2 spacers.
- baskets.
- 1 wrench.
- 1 compass.
- 1 user manual ( language of choice).
- 1 recycling instruction
- 1 brush.
- 8 water-pack holders.
- 8 water-packs 0.6l.
- 8 water-pack cap
List of spare parts, Reference & Price
296.9768.82 VCC COLD CHAIN CONTROLLER
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request to local service provider or B Medical Systems
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request to local service provider or B Medical Systems
Price and shipping
Shipping volume (m3)
0.908
Shipping weight (kg)
129.60
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
For quantities between 1-39 pcs: 8,590 EUR EXW
Price 2
For quantities between 40-99 pcs: 8,161 EUR EXW
Price 3
For quantities above 100pcs: 7,731 EUR EXW
Year of base price
2026
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001 & ISO 13485
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO_25-03_TCW40CSDD_Cor1
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
This product also include the latest generation of solar generator SG490 RGA designed for this product.
Waterpack freezing capacity: 4.8 kg/day = 8 waterpacks per day
