Product Details
Product name
TCW 120C AC
IMD-PQS Code
E003-152
Status
Prequalified
Date of acceptance
20 Apr 2026
Appliance type
E003
Product description

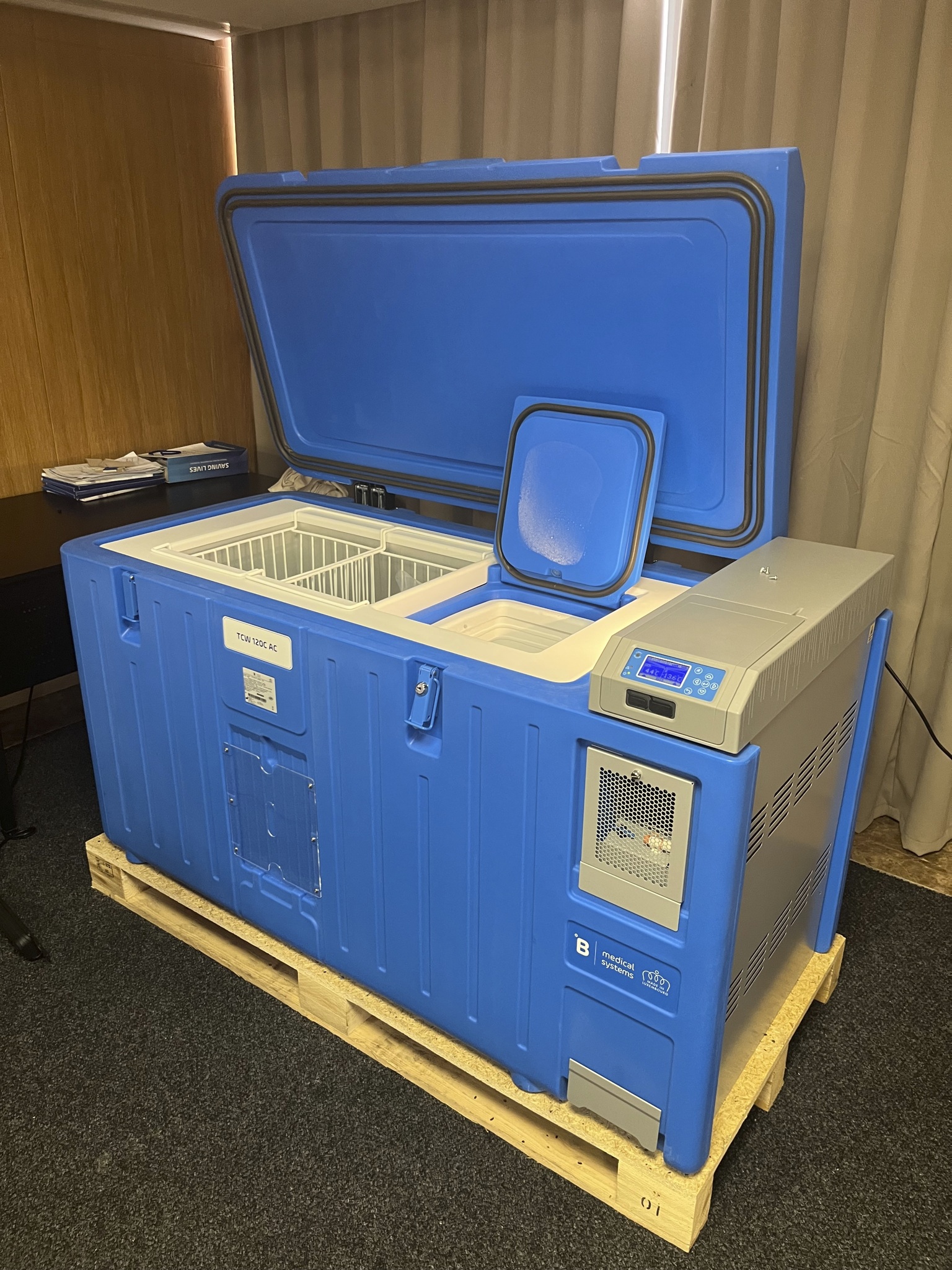

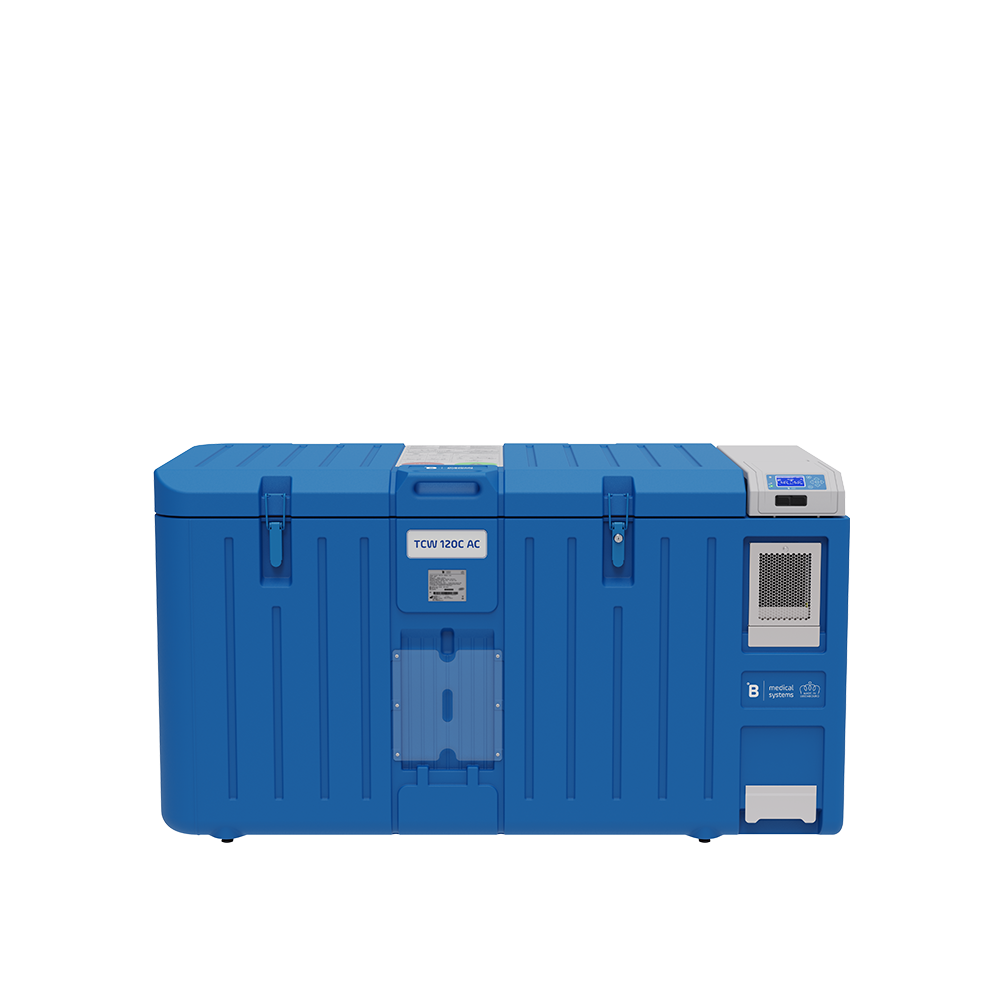

Combined icelined refrigerator/waterpacks freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 120C AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Relative Humidity (Min)
30.00
Relative Humidity (Max)
85.00
Freeze protection
Grade A
Hold over time (hours:mn)
127:55
External dimensions length (mm)
780.00
External dimensions width (mm)
1665.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric - Compression
Energy source
100-240V/50-60Hz
Lining
Ice
Energy Consumption During Freezing (kWh/24h)
1.6200
Energy Consumption Intermittent Power (kWh/24h)
1.2500
Energy Consumption Cool Down (kWh/24h)
1.2500
Energy Consumption Continuous Power (kWh/24h)
1.3800
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
120.000
Refrigerator's gross volume (Litres)
165.900
Autonomy (hrs:mn)
127:55
Refrigerant type
R600a
Product specifications - Additional Freezer
Freezer type
Water-pack freezer
Freezer net volume
14.4
Freezer's gross volume (Litres)
14.40
Waterpack freezing capacity (Kg/24 hrs)
4.80
Waterpack storage capacity (Litres)
14.40
List of accessories
Accessories supplied with the device include:
- 2 keys.
- 2 spacers.
- 1 brush.
- 1 travel plug.
- 1 wrench.
- baskets.
- 1 user manual ( user choice of language)
- 1 recycling instructions.
- 24 water-pack holders.
- 24 water-pack 0.6l
- 24 water-pack cap
- 10 x 8A fuses.
- 2 keys.
- 2 spacers.
- 1 brush.
- 1 travel plug.
- 1 wrench.
- baskets.
- 1 user manual ( user choice of language)
- 1 recycling instructions.
- 24 water-pack holders.
- 24 water-pack 0.6l
- 24 water-pack cap
- 10 x 8A fuses.
List of spare parts, Reference & Price
296.9768.82 VCC COLD CHAIN CONTROLLER
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request to B Medical Systems or Local Service Provider
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request to B Medical Systems or Local Service Provider
Price and shipping
Shipping volume (m3)
1.41
Shipping weight (kg)
177.00
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
For 1-39 pcs: 6,990 EUR EXW
Price 2
For 40-99 pcs: 6,641 EUR EXW
Price 3
For 100pcs and above: 6021 EUR EXW
Year of base price
2026
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001 & ISO 13485
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO_25-07_TCW120CAC
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
This product also include the latest generation voltage stabilizer with advanced surge protection already compatible with PQS_E007_VS01.6.
A led lighting is also included to allow a proper visibility of the storage compartment at night.
