Product Details
Product name

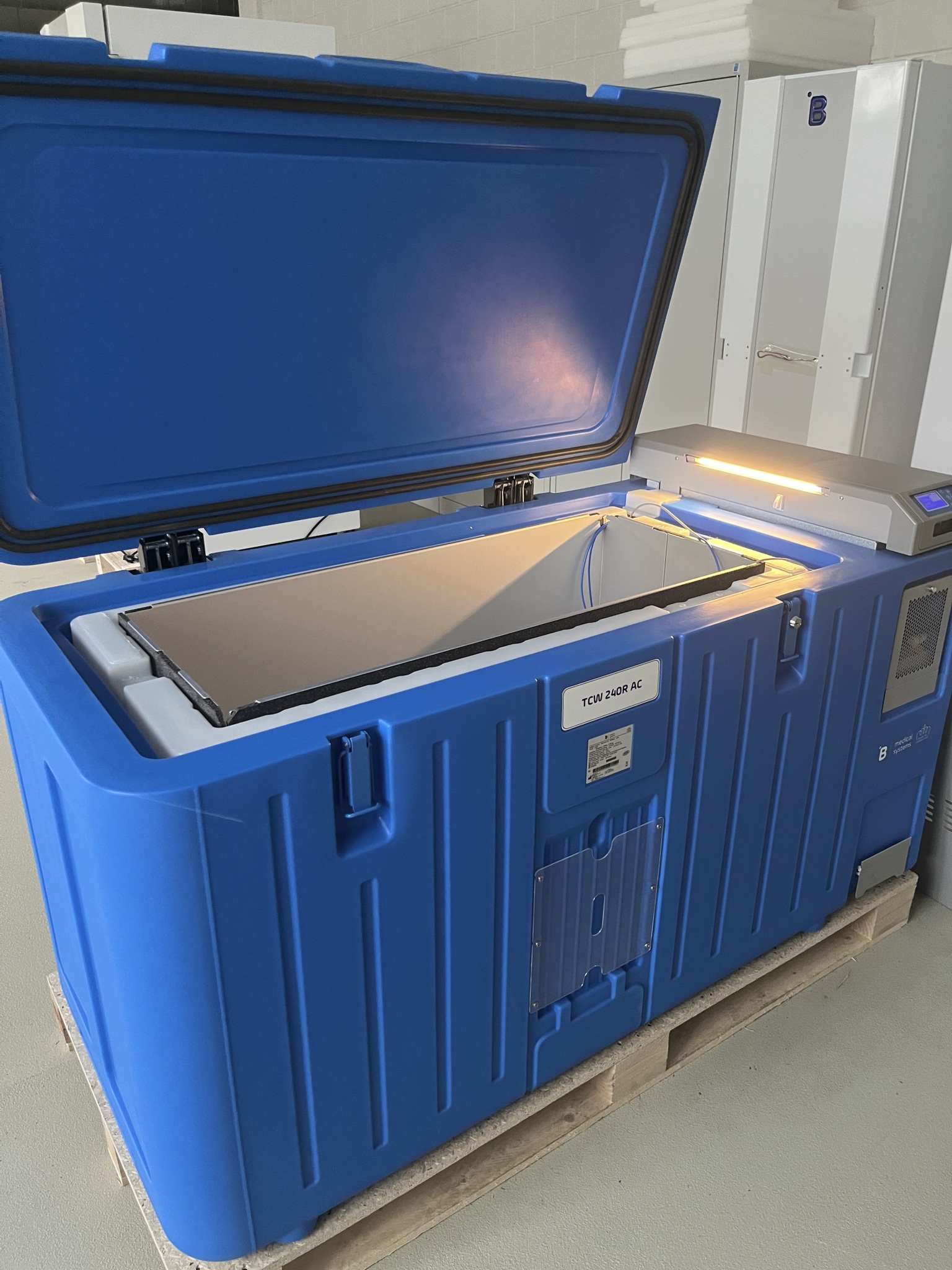

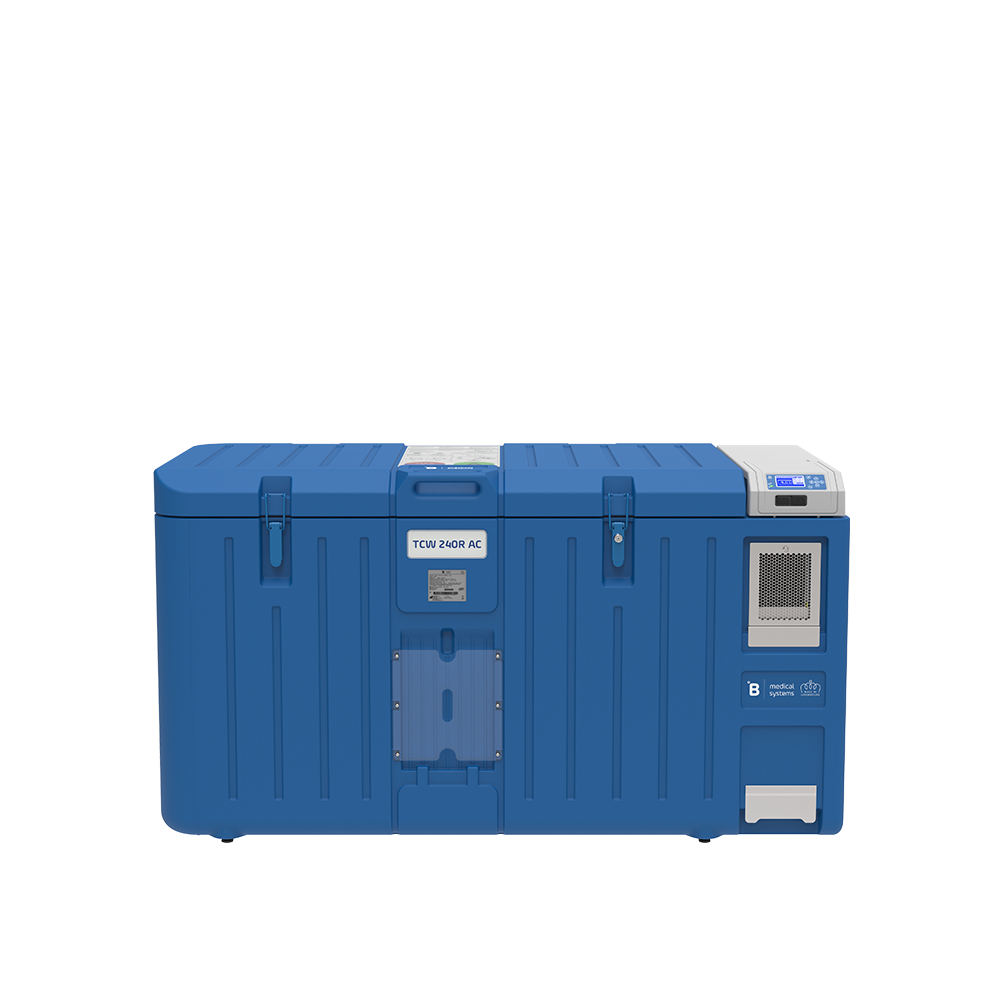

TCW 240R AC
IMD-PQS Code
E003-151
Status
Prequalified
Date of acceptance
20 Apr 2026
Appliance type
E003
Product description
Icelined refrigerator
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW 240R AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Relative Humidity (Min)
30.00
Relative Humidity (Max)
85.00
Freeze protection
Grade A
Hold over time (hours:mn)
115:19
External dimensions length (mm)
780.00
External dimensions width (mm)
1665.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 100-240V/50-60Hz
Lining
Ice
Energy Consumption Intermittent Power (kWh/24h)
0.7900
Energy Consumption Cool Down (kWh/24h)
0.8500
Energy Consumption Continuous Power (kWh/24h)
1.1500
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
240.000
Refrigerator's gross volume (Litres)
267.900
Autonomy (hrs:mn)
115:19
Refrigerant type
R600a
List of accessories
2 Keys
2 spacers
4 baskets top
2 baskets bottom
1 wrench
1 brush
1 Travel plug
1 user manual
1 recycling instruction
10 8A Fuses
2 spacers
4 baskets top
2 baskets bottom
1 wrench
1 brush
1 Travel plug
1 user manual
1 recycling instruction
10 8A Fuses
List of spare parts, Reference & Price
296.9768.82 VCC COLD CHAIN CONTROLLER
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request
296.9705.37 POWER MANAGEMENT MODULE
296.9805.13 SENSOR TEMP REGULATION
296.9805.18 SENSOR HUMIDITY REFRIGERATOR
296.9705.38 EBOX
292.9960.13 FAN
296.9702.17 COMPRESSOR
Other spare parts available upon request
Price and shipping
Shipping volume (m3)
1.41
Shipping weight (kg)
168.00
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
For 1-39pcs: 6,690 EUR EXW
Price 2
For 40-99pcs: 6,356 EUR EXW
Price 3
For 100pcs+: 6,021 EUR EXW
Year of base price
2026
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO9001 & ISO13485
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO 25-02
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
This product also include the latest generation voltage stabilizer with advanced surge protection already compatible with PQS_E007_VS01.6.
A led lighting is also included to allow a proper visibility of the storage compartment at night.
