Product Details
Product name
MDFU-19
IMD-PQS Code
E003-147
Status
Prequalified
Date of acceptance
16 Feb 2026
Appliance type
E003

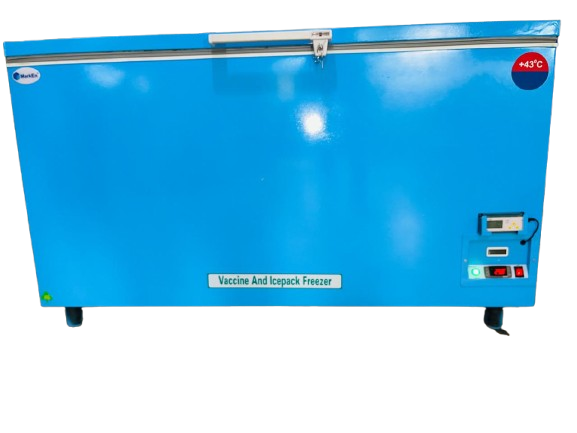

Product description
Waterpacks freezer
Manufacturer
Mark Enterprises
Manufacturer Reference
MDFU-19
Country of Manufacture
India
Address
Shed No.1, Plot No.93/2, Street No.17, City: MIDC Satpur, Nashik, Maharashtra
Nashik
Maharashtra
India
Nashik
Maharashtra
India
Telephone
+91 7276009009
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
-10.00
Relative Humidity (Min)
5.00
Relative Humidity (Max)
95.00
Hold over time (hours:mn)
05:00
External dimensions length (mm)
1565.00
External dimensions width (mm)
700.00
External dimensions height (mm)
925.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric, Compression Cycle, R600a refrigerant
Energy source
Electric (Mains Power 220–240 V, 50/60 Hz)
Lining
Corrosion-resistant, UV-protected internal and external cabinet (DIN 8985 compliant)
Energy Consumption During Freezing (kWh/24h)
1.8500
Energy Consumption Cool Down (kWh/24h)
1.8500
Energy Consumption Continuous Power (kWh/24h)
1.8110
Product specifications - Additional Refrigerator
Solar radiation ref period (kWh/m2/day)
0.00
Product specifications - Additional Freezer
Freezer type
Vaccine /Waterpacks freezer
Freezer net volume
280
Freezer's gross volume (Litres)
300.00
Waterpack freezing capacity (Kg/24 hrs)
25.80
List of accessories
1 kVA / 1 Phase Voltage Stabilizer – WHO PQS approved (PQS Code: E007/07)
Externally readable cabinet-mounted electronic thermometer – WHO PQS approved (PQS Code: E006/081)
Two keys
User manual
Vaccine loading and storage instruction labels affixed to the cabinet
Externally readable cabinet-mounted electronic thermometer – WHO PQS approved (PQS Code: E006/081)
Two keys
User manual
Vaccine loading and storage instruction labels affixed to the cabinet
List of spare parts, Reference & Price
AC Compressor : HXK12AT R600a - ME/STR/VF19/001
WOT Condenser - ME/STR/VF19/002
Drier Filter - ME/STR/VF19/003
Starting Capacitor : 4 uF - ME/STR/VF19/004
AC Fan Motor - ME/STR/VF19/005
Control Panel - ME/STR/VF19/006
Temperature Sensors : NTC - ME/STR/VF19/007
Temperature Controller : Dixell XR30CX - ME/STR/VF19/008
Thermometer : Solar Operated - ME/STR/VF19/009
ON/OFF Switch - ME/STR/VF19/010
Mains Indicator Lamp : Red - ME/STR/VF19/011
Compressor Indicator Lamp : Green - ME/STR/VF19/012
Electrical Wiring : 1 sq mm - ME/STR/VF19/013
Temperature Monitoring Data Logger : PQS Code E006/081 - ME/STR/VF19/014
Mains Cord : 3 Core 1 sq mm - ME/STR/VF19/015
Voltage Stabilizer : PQS Code E007/007 - ME/STR/VF19/016
Door Handle - ME/STR/VF19/017
Key, Set : 2 pc - ME/STR/VF19/018
Door Hinges with PVC Cover - ME/STR/VF19/019
Basket with Handles : 9 Nos. SS304 Material - ME/STR/VF19/020
Foot with Bolts (Adjustable Foot) - ME/STR/VF19/021
Complete Base Plate Fitting - ME/STR/VF19/022
Drain Plug : Ø6 - ME/STR/VF19/023
WOT Condenser - ME/STR/VF19/002
Drier Filter - ME/STR/VF19/003
Starting Capacitor : 4 uF - ME/STR/VF19/004
AC Fan Motor - ME/STR/VF19/005
Control Panel - ME/STR/VF19/006
Temperature Sensors : NTC - ME/STR/VF19/007
Temperature Controller : Dixell XR30CX - ME/STR/VF19/008
Thermometer : Solar Operated - ME/STR/VF19/009
ON/OFF Switch - ME/STR/VF19/010
Mains Indicator Lamp : Red - ME/STR/VF19/011
Compressor Indicator Lamp : Green - ME/STR/VF19/012
Electrical Wiring : 1 sq mm - ME/STR/VF19/013
Temperature Monitoring Data Logger : PQS Code E006/081 - ME/STR/VF19/014
Mains Cord : 3 Core 1 sq mm - ME/STR/VF19/015
Voltage Stabilizer : PQS Code E007/007 - ME/STR/VF19/016
Door Handle - ME/STR/VF19/017
Key, Set : 2 pc - ME/STR/VF19/018
Door Hinges with PVC Cover - ME/STR/VF19/019
Basket with Handles : 9 Nos. SS304 Material - ME/STR/VF19/020
Foot with Bolts (Adjustable Foot) - ME/STR/VF19/021
Complete Base Plate Fitting - ME/STR/VF19/022
Drain Plug : Ø6 - ME/STR/VF19/023
Price and shipping
Shipping volume (m3)
1.01
Shipping weight (kg)
110.00
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
per unit is 3500 USD
Price 2
per 10 units is 34,125 USD
Price 3
per 100 units is 332,500 USD
Year of base price
2025
Quality standard
Quality Standard
ISO 9001: 2000
Specification Reference
Applicable PQS specification: E003/FZ01.2
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
0013X00004Ml8OnQAJ
Verification Report Reference
4791197699 -04-OTHER-S1-A1, dated 2 May 2024
Product Sites
Mark Enterprises
Shed No.1, Plot No.93/2, Street No.17, City: MIDC Satpur
Nashik,
Maharashtra
422007
India
