Product Details
Product name
MDFU-18
IMD-PQS Code
E003-146
Status
Prequalified
Date of acceptance
16 Feb 2026
Appliance type
E003
Product description

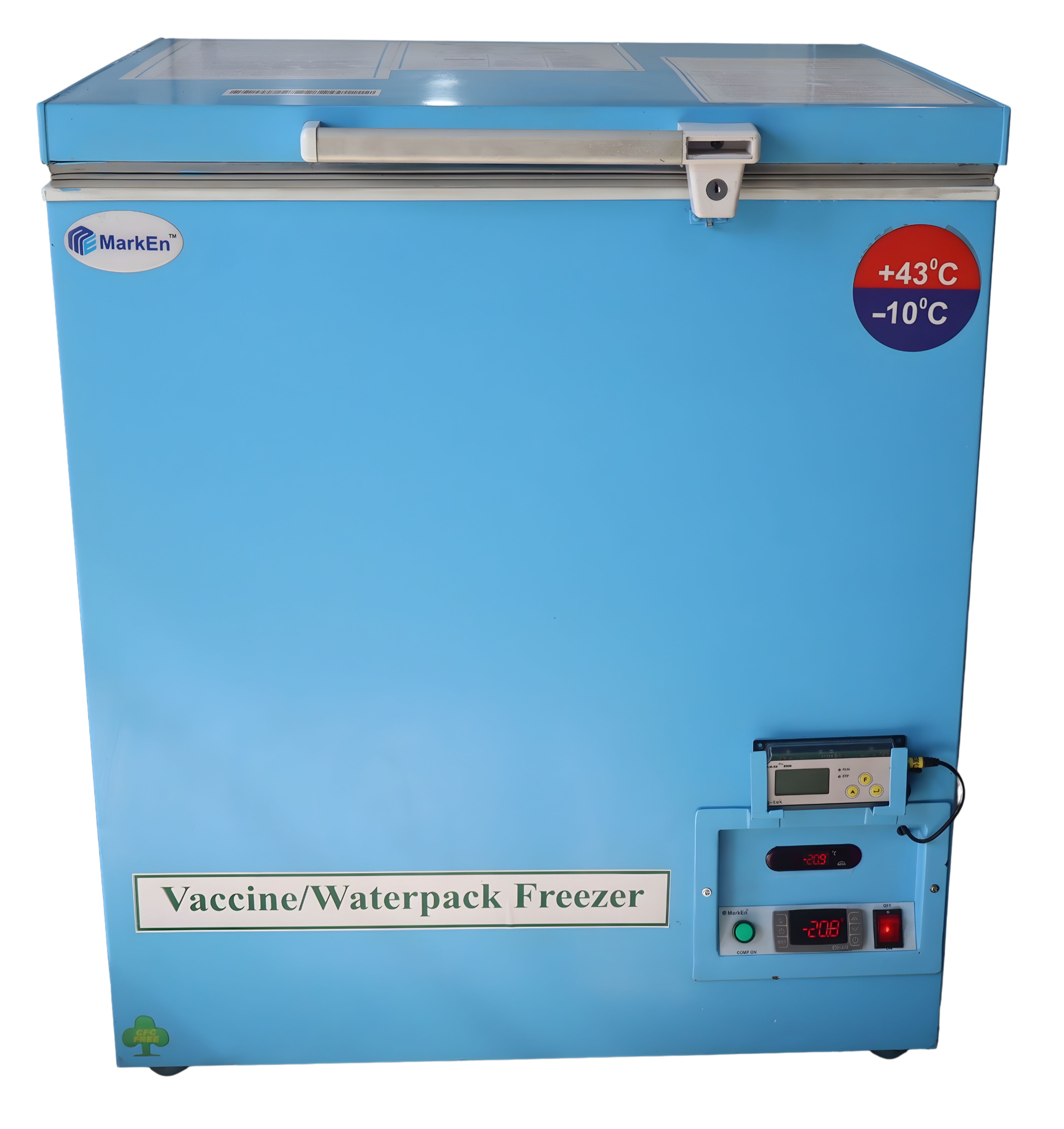

Waterpacks freezer
Manufacturer
Mark Enterprises
Manufacturer Reference
MDFU-18
Country of Manufacture
India
Address
Shed No.1, Plot No.93/2, Street No.17, City: MIDC Satpur, Nashik, Maharashtra
Nashik
Maharashtra
India
Nashik
Maharashtra
India
Telephone
+91 7276009009
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
-10.00
Relative Humidity (Min)
5.00
Relative Humidity (Max)
95.00
Hold over time (hours:mn)
04:47
External dimensions length (mm)
725.00
External dimensions width (mm)
670.00
External dimensions height (mm)
850.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric, Compression Cycle, R600a refrigerant
Energy source
Electric (Mains Power 220–240 V, 50/60 Hz)
Lining
Corrosion-resistant, UV-protected internal and external cabinet (DIN 8985 compliant)
Energy Consumption During Freezing (kWh/24h)
1.3370
Energy Consumption Cool Down (kWh/24h)
1.1580
Product specifications - Additional Refrigerator
Solar radiation ref period (kWh/m2/day)
0.00
Product specifications - Additional Freezer
Freezer type
Vaccine /Waterpacks freezer
Freezer net volume
98
Freezer's gross volume (Litres)
106.00
List of accessories
Single-phase voltage stabilizer (WHO PQS E007 approved)
External electronic thermometer/display
Lock with 2 keys
Vaccine loading and waterpack placement instruction sheets (Figures 11 & 12 in report)
External electronic thermometer/display
Lock with 2 keys
Vaccine loading and waterpack placement instruction sheets (Figures 11 & 12 in report)
List of spare parts, Reference & Price
AC Compressor-NLE 9KTK R600a
WOT Condenser
Drier Filter
Starting Capacitor
AC Fan motor
Control Panel
Temperature sensors
Temperature Controller – Dixell XR30CX
Thermometer- solar operated
ON/OFF switch
Mains Indicator Lamp
Compressor indicator lamp – Green
Electrical wiring 1sq mm
Temperature monitoring data logger - PQS Code E006/081
Mains Cord – 3 core 1sq mm
Voltage Stabilizer - PQS Code E007/007
Door Handle
key, set - 2pc.
Door Hinges with PVC cover
Basket with Handles – 5 Nos. SS304 Material
Foot with bolts(Adjustable foot)
complete Base plate Fitting
Drain plug - Ø6
WOT Condenser
Drier Filter
Starting Capacitor
AC Fan motor
Control Panel
Temperature sensors
Temperature Controller – Dixell XR30CX
Thermometer- solar operated
ON/OFF switch
Mains Indicator Lamp
Compressor indicator lamp – Green
Electrical wiring 1sq mm
Temperature monitoring data logger - PQS Code E006/081
Mains Cord – 3 core 1sq mm
Voltage Stabilizer - PQS Code E007/007
Door Handle
key, set - 2pc.
Door Hinges with PVC cover
Basket with Handles – 5 Nos. SS304 Material
Foot with bolts(Adjustable foot)
complete Base plate Fitting
Drain plug - Ø6
Price and shipping
Shipping volume (m3)
0.544
Shipping weight (kg)
88.00
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
Per unit is 2500 USD
Price 2
10 units is 24,375 USD
Price 3
100 units is 237,500 USD
Year of base price
2025
Quality standard
Quality Standard
ISO 9001: 2000
Specification Reference
Applicable PQS specification: E003/FZ01.2
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
0013X00004Ml8OnQAJ
Verification Report Reference
UL India Pvt. Ltd., Report No. 4791197699-02-OTHER-S1-A1, dated 10 March 2025
Product Sites
Mark Enterprises
Shed No.1, Plot No.93/2, Street No.17, City: MIDC Satpur
Nashik,
Maharashtra
422007
India
