Product Details
Product name
TCD -188
IMD-PQS Code
E003-145
Status
Prequalified
Date of acceptance
10 Feb 2026
Appliance type
E003
Product description

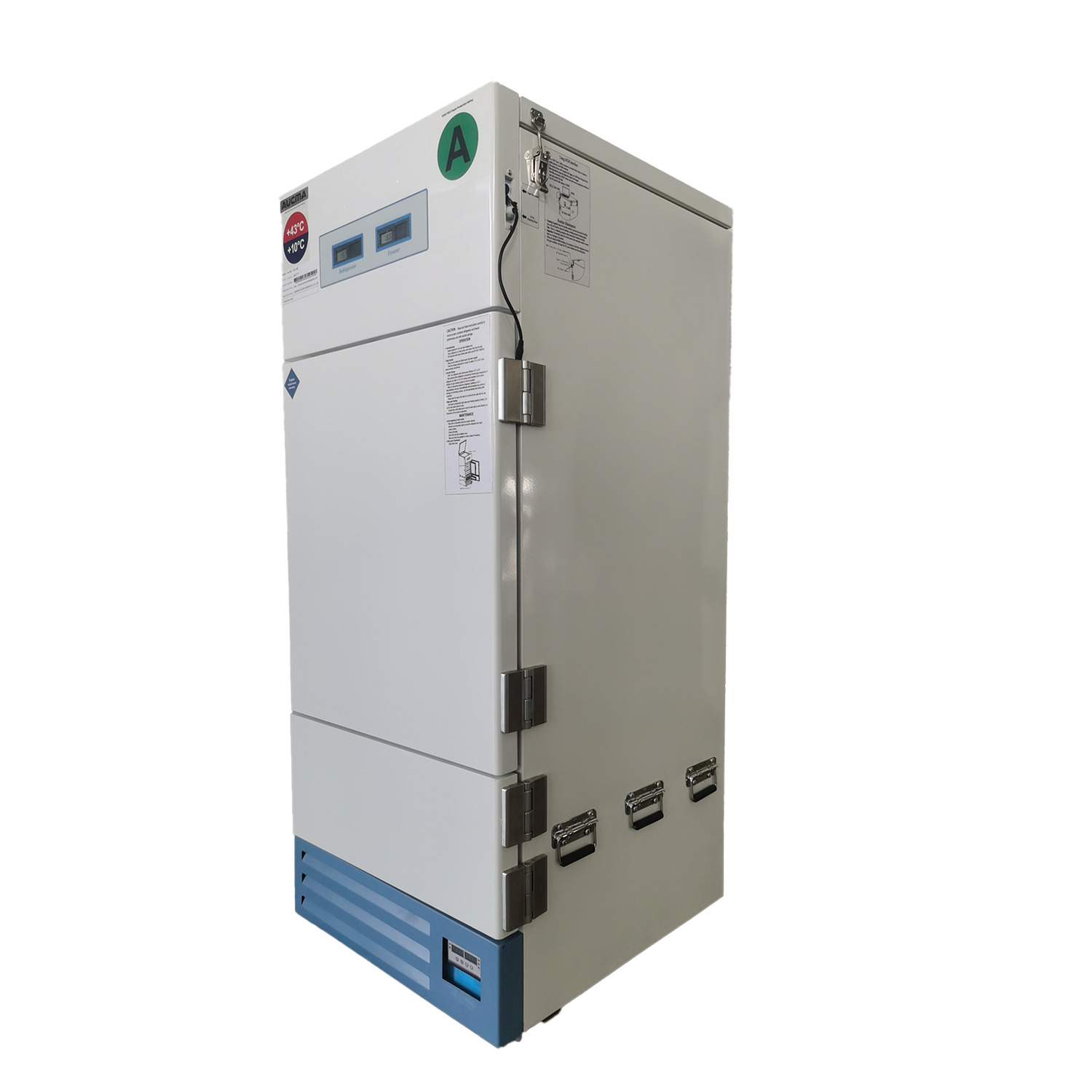

Solar direct drive combined refrigerator/freezer
Manufacturer
Qingdao Aucma Global Medical Co.,Ltd.
Manufacturer Reference
TCD -188
Country of Manufacture
China
Address
315 Qianwangang Road, Economic &Technological Development Zone,
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86 532 86763602
Email
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Multizone
Minimum rated ambient temperature (°C)
10.00
Relative Humidity (Min)
0.00
Relative Humidity (Max)
95.00
Humidity Control
Active
Freeze protection
Grade A
Hold over time (hours:mn)
124
External dimensions length (mm)
660.00
External dimensions width (mm)
710.00
External dimensions height (mm)
1575.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive and Electric Mains 100-240V 50/60Hz
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
2.3220
Energy Consumption Cool Down (kWh/24h)
1.8330
Energy Consumption Continuous Power (kWh/24h)
1.9220
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
120.000
Refrigerator's gross volume (Litres)
150.000
Autonomy (hrs:mn)
124
Refrigerant type
R290
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer type
Direct cooling
Freezer net volume
38
Freezer's gross volume (Litres)
38.00
Waterpack freezing capacity (Kg/24 hrs)
2.20
Waterpack storage capacity (Litres)
11.00
List of accessories
1.2 shelves.
2.2 plastic vaccine trays (additional trays can be ordered).
3.1 funnel and 1 bucket.
4.1 User manual and 1 technician manual.
5.2 locks and keys
2.2 plastic vaccine trays (additional trays can be ordered).
3.1 funnel and 1 bucket.
4.1 User manual and 1 technician manual.
5.2 locks and keys
List of spare parts, Reference & Price
3000002494 1 No. Compressor
3001001020 1 No. Electronic control unit
3001000822 1 No. Thermostat
3000001653 1 No. Fan
3001001020 1 No. Electronic control unit
3001000822 1 No. Thermostat
3000001653 1 No. Fan
Price and shipping
Shipping volume (m3)
2.23
Shipping weight (kg)
500.00
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Year of base price
2026
Quality standard
Quality Standard
ISO 9001: 2000;ISO 13485
Specification Reference
Applicable PQS specification: E003/RF05.6
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Report Reference
WB-23-0208
Product Sites
Qingdao Aucma Global Medical Co.,Ltd.
315 Qianwangang Road, Economic &Technological Development Zone,
Qingdao,
Shandong
266510
China
Document Details
1.Support simultaneous access of both mains and solar power supply.
2.Independent dehumidification system.
3.Comes standard with two shelves and two plastic vaccine trays, 1 funnel and 1 bucket for filling the water tank of the TCD-188.
4.TCD-188 has a level 2 EMS, which includes a recorder and its M2M interface, as well as a local display screen.
