Product Details

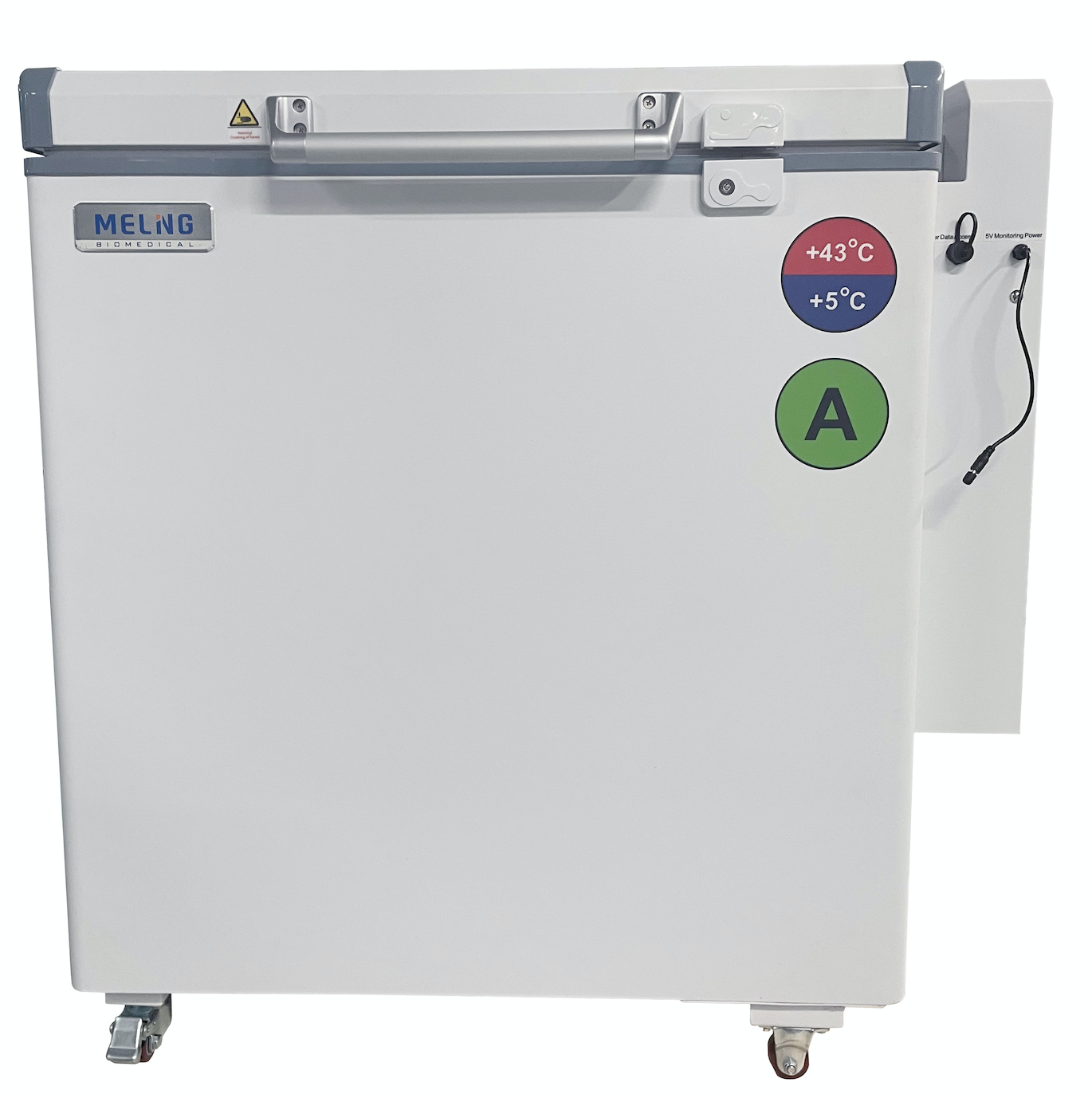

Product name
TC-125WSDD
IMD-PQS Code
E003-144
Status
Prequalified
Date of acceptance
24 Oct 2025
Appliance type
E003
Manufacturer
Zhongke Meiling Cryogenics Company Limited
Manufacturer Reference
TC-125WSDD
Country of Manufacture
China
Address
No. 1862 Zishi Road
Hefei
Anhui
China
Hefei
Anhui
China
Telephone
+86 551 6431 7378
Email
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Relative Humidity (Min)
5.00
Relative Humidity (Max)
95.00
Humidity Control
Passive
Freeze protection
Grade A
External dimensions length (mm)
929.00
External dimensions width (mm)
834.00
External dimensions height (mm)
966.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Ambient temperature during testing (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Icelined
Energy Consumption Intermittent Power (kWh/24h)
1.0700
Energy Consumption Cool Down (kWh/24h)
1.0810
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
95.000
Refrigerator's gross volume (Litres)
125.000
Autonomy (hrs:mn)
92:27
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
List of accessories
1.Operation manual 2.Key 3.Spare fuse 4.Certificate card
List of spare parts, Reference & Price
"Included in the UNICEF Supply Division spare parts kit:
2 NO. Condenser-Part NO. 890379860 ;
2 NO. Fan Motor-Part NO. 890279770 ;
1 NO. Power switch-Part NO. 890370233 ;
2 NO. DC to DC module-Part NO. 890383680 ;
1 NO. Control panel-Part NO. 890260742 ;
1 NO. Display panel-Part NO. 890188313 ;
1 NO. Solar display screen-Part NO. 890383792 ;
2 NO. Indicator light(green)-Part NO. 890384362 ;
1 NO. Fuse seat-Part NO. 890473151 ;
2 NO. Compressor-Part NO. 890354825 ;
2 NO. The filter-Part NO. 890348235 ;
1 NO. Equiplog Data Logger-Part NO. 890467888 ;
1 NO. Indicator light(red)-Part NO. 890473150 ;
Other parts are available as spares on request.
Unit price of spare parts:
1 NO. Fan Motor-Part NO. 890279770 (USD 9.8)
1 NO. DC to DC module-Part NO. 890383680 (USD 76)
1 NO. Control panel-Part NO. 890260742 (USD 50.5)
1 NO. Display panel-Part NO. 890188313 (USD 14.8)
1 NO. Compressor-Part NO. 890354825 (USD 359.3)
1 NO. The filter-Part NO. 890348235 (USD 0.9)
Other parts are available as spares on request."
2 NO. Condenser-Part NO. 890379860 ;
2 NO. Fan Motor-Part NO. 890279770 ;
1 NO. Power switch-Part NO. 890370233 ;
2 NO. DC to DC module-Part NO. 890383680 ;
1 NO. Control panel-Part NO. 890260742 ;
1 NO. Display panel-Part NO. 890188313 ;
1 NO. Solar display screen-Part NO. 890383792 ;
2 NO. Indicator light(green)-Part NO. 890384362 ;
1 NO. Fuse seat-Part NO. 890473151 ;
2 NO. Compressor-Part NO. 890354825 ;
2 NO. The filter-Part NO. 890348235 ;
1 NO. Equiplog Data Logger-Part NO. 890467888 ;
1 NO. Indicator light(red)-Part NO. 890473150 ;
Other parts are available as spares on request.
Unit price of spare parts:
1 NO. Fan Motor-Part NO. 890279770 (USD 9.8)
1 NO. DC to DC module-Part NO. 890383680 (USD 76)
1 NO. Control panel-Part NO. 890260742 (USD 50.5)
1 NO. Display panel-Part NO. 890188313 (USD 14.8)
1 NO. Compressor-Part NO. 890354825 (USD 359.3)
1 NO. The filter-Part NO. 890348235 (USD 0.9)
Other parts are available as spares on request."
Price and shipping
Shipping volume (m3)
1.009
Shipping weight (kg)
162.00
Minimum order
1.00
Units per package
1.00
Incoterms
EXW
Price 1
1-10 UNITS: 3000 USD
Price 2
11-100 UNITS: 2950 USD
Price 3
＞100 UNITS: on request to manufacturer
Year of base price
2025
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
- ISO 9001:2015 - ISO 14001:2015 - ISO 45001:2018 -
Specification Reference
E003/RF05.8
Verification
Verification Laboratory
CHEARI
Address
#29 Xia Jie Street, Xuan Wu district Beijing 100053 R. P. de Chine
China
China
Telephone
+86 1063162443
Email
Verification Report Reference
WB-24-0184
Product Sites
Zhongke Meiling Cryogenics Company Limited
No. 1862 Zishi Road
Hefei,
Anhui
230601
China
Document Details
2. Standard with 2 universal castors with brakes and 2 fixed castors, convenient for movement and fixation.
3 .Standard with 5 baskets for store vaccines/samples.
4. Cool storage unit do not need to inject or replenish water, more convenient to use.
5. Dual cooling system, dual reliability.
6. The appliance has a Equiplog Data Logger that complies with ""WHO/PQS/E006/DL01"" and ""WHO/PQS/E006/DS01"".
7. The appliance has 5V/1A interface and Type C interface.
8. RS485 2 wire port to connect with any MODBUS compliant slave.
9. Freeze protection: Grade A .
10. Optional: Humidity control plate."
