Product Details

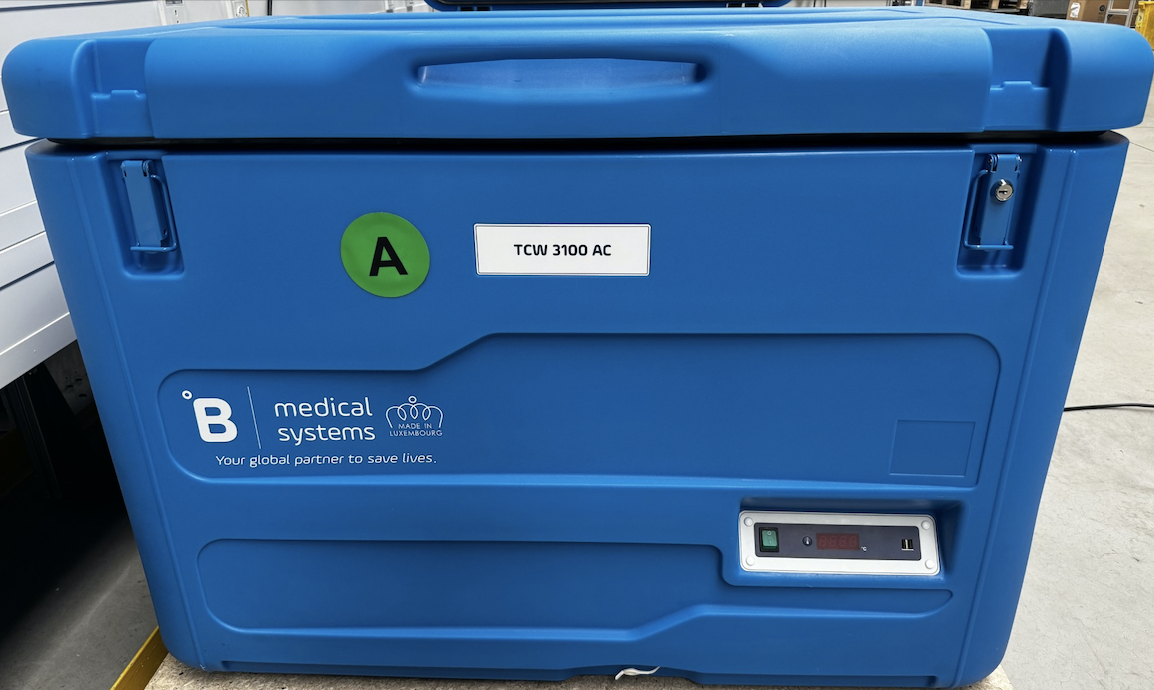

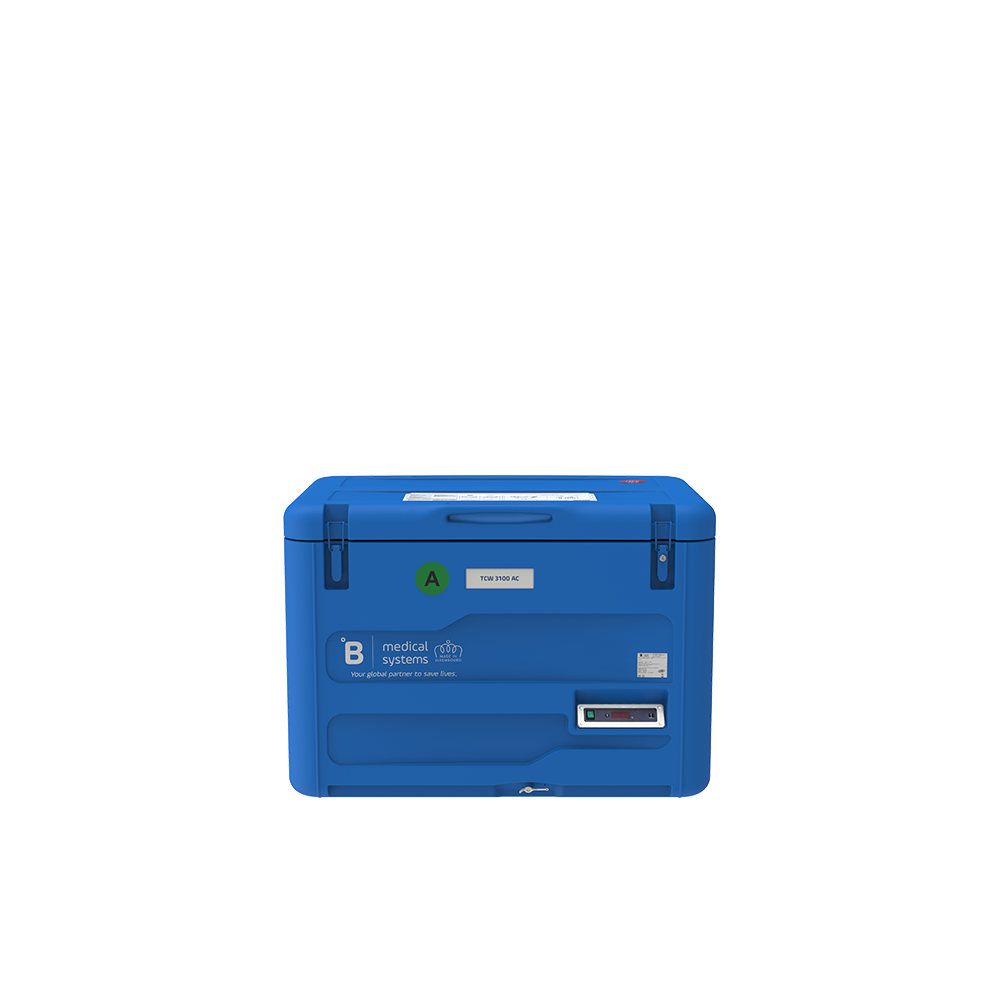

Product name
TCW3100AC
IMD-PQS Code
E003-143
Status
Prequalified
Date of acceptance
29 Sep 2025
Appliance type
E003
Product description
Vaccine freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW3100AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei
Hosingen
Luxemburg
Luxembourg
Hosingen
Luxemburg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Hold over time (hours:mn)
14:53
External dimensions length (mm)
780.00
External dimensions width (mm)
1280.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V50/60Hz or 100-127V/60Hz with optionally integrated transformer
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
3.0900
Product specifications - Additional Refrigerator
Refrigerant type
R290
Product specifications - Additional Freezer
Freezer type
Vaccine
Freezer's gross volume (Litres)
168.00
Waterpack freezing capacity (Kg/24 hrs)
18.00
Waterpack storage capacity (Litres)
168.00
List of accessories
5 baskets, 2 keys, documentation
List of spare parts, Reference & Price
Part Number / Description / QTY / Price
294.2959.90 Condenser Fan 1 € 104,09
296.9701.72 Compressor 1 € 303,05
296.0945.04 Filter dryer 1 € 3,66
296.9804.67 Sensor 1 € 15,68
396.9769.99 Cold Chain Controller 1 € 308,38
296.9769.91 DISPLAY BOARD 1 € 70,54
294.2959.90 Condenser Fan 1 € 104,09
296.9701.72 Compressor 1 € 303,05
296.0945.04 Filter dryer 1 € 3,66
296.9804.67 Sensor 1 € 15,68
396.9769.99 Cold Chain Controller 1 € 308,38
296.9769.91 DISPLAY BOARD 1 € 70,54
Price and shipping
Shipping volume (m3)
1.07
Shipping weight (kg)
168.00
Incoterms
EXW
Price 1
Qty 1-39 = 3640 EUR
Price 2
Qty 40-99 = 3458 EUR
Price 3
Qty 100 and + = 3285 EUR
Year of base price
2025
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015, ISO 14001:2015
Verification
Verification Laboratory
Intertek India
Address
Intertek India Private Limited E-20, Block B1, Mohan Cooperative Industrial Estate Mathura Road New Delhi -110044 India
India
India
Telephone
+91-9820213510
Email
Verification Report Reference
CE-JOB-NDA-23-002589-001
Product Sites
B Medical Systems Sarl
17 Op der Hei
Hosingen,
Luxemburg
L-9809
Luxembourg
Document Details
Optionally available: the B Medical Systems RTMD with worldwide communication, real time alarms
messages for temperature and open door alerts via SMS / EMAIL, GPS position using Google
Maps, access to the webserver performance monitoring; compliant to all requirements of the WHO
PQS E006/TR03.2 except for the LCD display (however the freezer has a digital display). This
RTMD is exclusively bundled to B Medical Systems freezers. Includes warranty for 3
years. For more information and further conditions of warranty, please contact B Medical Systems.
Optionally available in 115V/60Hz
Optionally available with Voltage Stabilizer Extended range.
Waterpack freezing capacity 18.96 kg / 24 hours
