E003-138

SF - Immunization Devices
Download file
E003-138.pdf
E003-138.json
Product Details
Product name

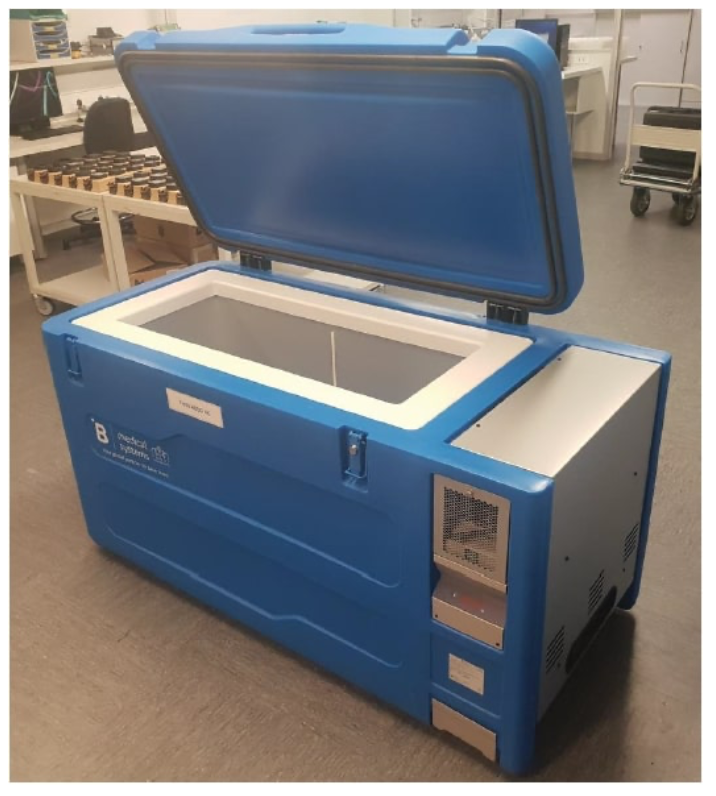

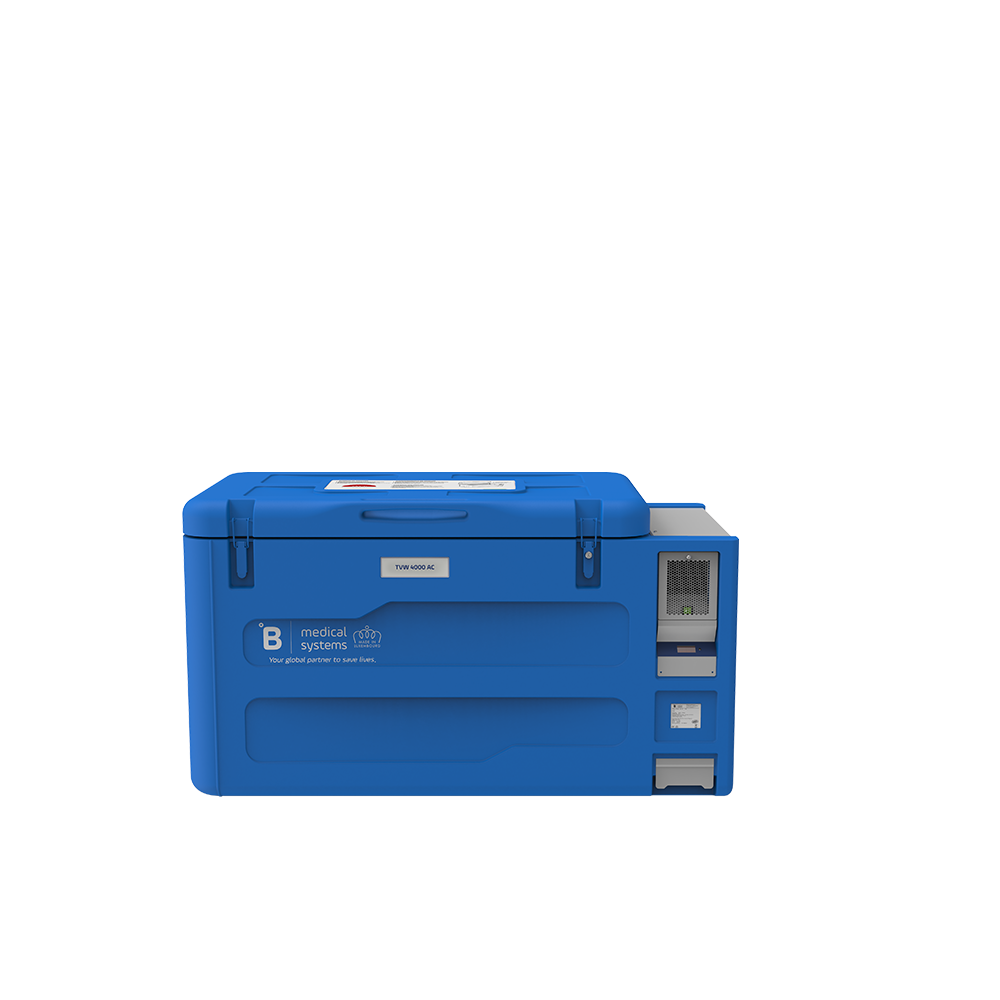

TVW4000AC
IMD-PQS Code
E003-138
Status
Prequalified
Date of acceptance
16 Jan 2024
Appliance type
E003
Product description
Vaccine/waterpacks freeze
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TVW4000AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
info@bmedicalsystems.com
Website address
www.bmedicalsystems.com
Valid until
31 May 2026
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Hold over time (hours:mn)
50:09
External dimensions length (mm)
780.00
External dimensions width (mm)
915.00
External dimensions height (mm)
1600.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz
Energy Consumption During Freezing (kWh/24h)
4.4500
Energy Consumption Cool Down (kWh/24h)
4.0600
Energy Consumption Continuous Power (kWh/24h)
4.4500

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
240.000
Refrigerator's gross volume (Litres)
249.000
Refrigerant type
R290

Product specifications - Additional Freezer

Waterpack storage capacity (Litres)
252.00
Comments
Optionally available: the B Medical Systems RTMD with worldwide communication, real time alarms messages for temperature and open door alerts via SMS / EMAIL, GPS position using Google Maps, access to the webserver performance monitoring; compliant to all requirements of the WHO PQS E006/TR03.2 except for the LCD display (however the refrigerator has a digital display). This RTMD is exclusively bundled to B Medical Systems refrigerators / freezers. Includes warranty for 3 years. For more information and further conditions of warranty, please contact B Medical Systems. Optionally available in 115V/60Hz

Waterpack freezing capacity 24KG / 15HRS
List of accessories
6 baskets, 2 keys, condenser cleaning brush, documentation
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:

1 Controller TVW 4000 AC296.9769.93
1 Run Capacitor 296.9706.63
1 Fan 292.9960.18
1 Compressor 220-240V 296.9701.63
1 Sensor 296.9805.06
1 Starting Relay 296.9706.62

Other parts are available as spares on request.

Price and shipping

Shipping volume (m3)
1.39
Shipping weight (kg)
124.00
Incoterms
EXW
Price 1
4377 Euros
Year of base price
2025

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 140021:2015

Verification

Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
Telephone
+33 1 49 84 84 84
Email
gerald.cavalier@cemafroid.fr
Verification Report Reference
WHO23-02
