Product Details
Product name
Emvolio Plus
IMD-PQS Code
E003-134
Status
Prequalified
Date of acceptance
26 Sep 2023
Appliance type
E003
Product description
Transportable, powered vaccine storage appliances
Manufacturer
BlackFrog Technologies Private Limited
Manufacturer Reference
Emvolio Plus
Country of Manufacture
India
Address
#4, 4th Floor, Advanced Research Center, Behind MMMC, Madhav Nagar, Manipal, Karnataka, India - 576104
India
India
Telephone
+918202572478
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
10.00
Freeze protection
Grade A
Hold over time (hours:mn)
12
External dimensions length (mm)
300.00
External dimensions width (mm)
200.00
External dimensions height (mm)
410.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric- Thermoelectric
Energy source
110-240V 50/60Hz
Energy Consumption Cool Down (kWh/24h)
0.9000
Energy Consumption Continuous Power (kWh/24h)
0.8400
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
1.550
Refrigerator's gross volume (Litres)
1.800
Refrigerant type
Cable
List of accessories
Included in price:
- Multipurpose Backpack.
- User Manual with warranty terms.
- Reset Pin.
- 150 W Charger/Adaptor.
- Power cord.
Optional(Charged extra):
- Silicon vial-holder multi-stage (slot size to be determined by the user).
- Multipurpose Backpack.
- User Manual with warranty terms.
- Reset Pin.
- 150 W Charger/Adaptor.
- Power cord.
Optional(Charged extra):
- Silicon vial-holder multi-stage (slot size to be determined by the user).
List of spare parts, Reference & Price
- Latch.
- Latch Hook.
- Hinge Right side.
- Hinge Left side.
- M3*6.
- M3*12.
- M4*8.
- M3*8.
- Charging Port.
- Rechargeable Li-Ion Battery.
- Silicon Gasket
- Latch Hook.
- Hinge Right side.
- Hinge Left side.
- M3*6.
- M3*12.
- M4*8.
- M3*8.
- Charging Port.
- Rechargeable Li-Ion Battery.
- Silicon Gasket
Price and shipping
Shipping volume (m3)
0.719
Shipping weight (kg)
11.00
Incoterms
EXW
Price 1
USD 2500 for 1-100 units
Price 2
USD 2400 for 101-500 units
Price 3
USD 2250 for 500+ units
Year of base price
2023
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015
Verification
Verification Laboratory
0013X00004Ml8OaQAJ
Verification Report Reference
CE-JOB-NDA-22-000949-001
Product Sites
BlackFrog Technologies Private Limited
#4, 4th Floor, Advanced Research Center, Behind MMMC, Madhav Nagar, Manipal, Karnataka, India - 576104
India
Document Details

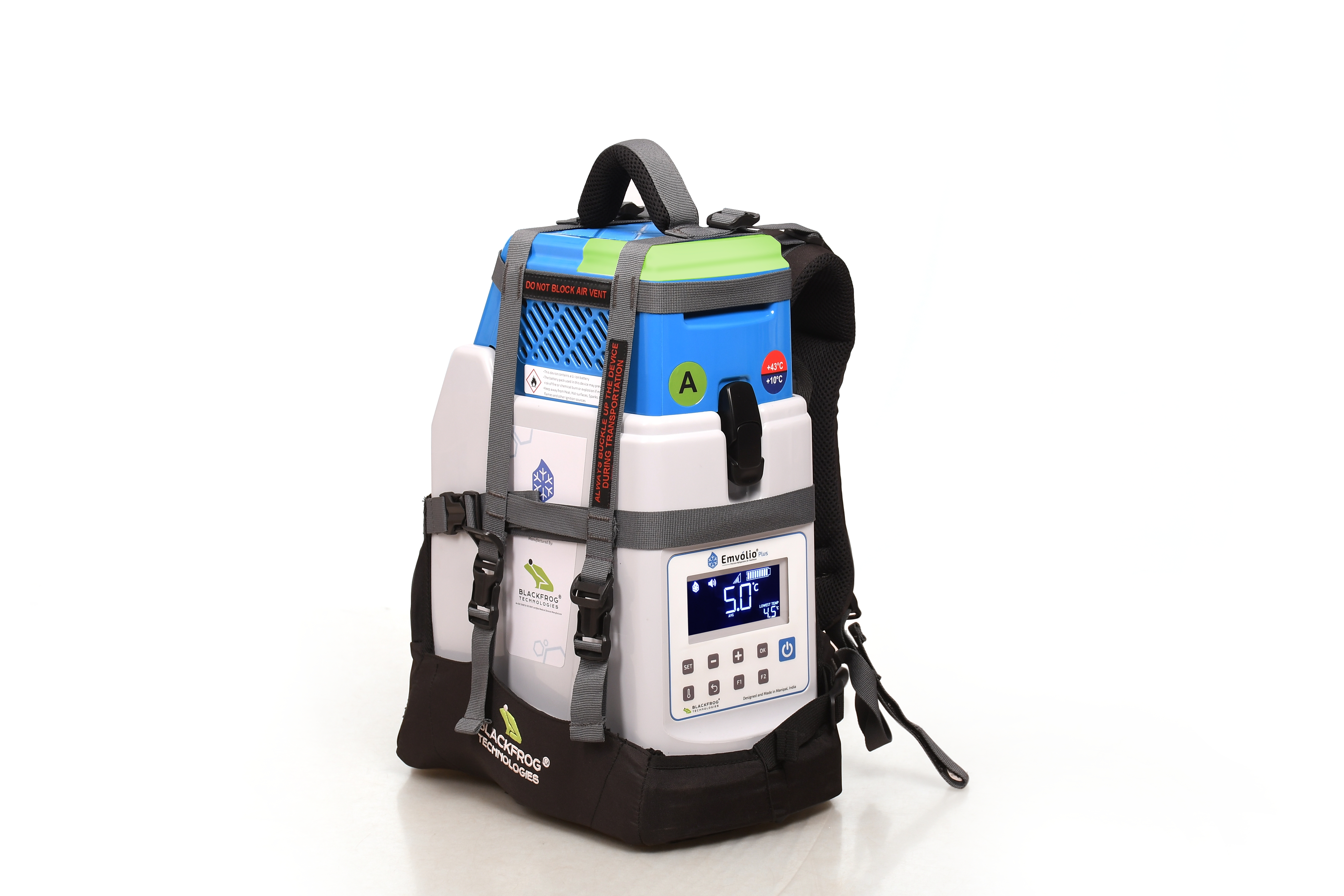

Emvolio is a portable battery-powered active cooled vaccine carrier with an in-built temperature control and regulation. The system is able to store and carry vaccines to remote locations with temperature accountability to retain vaccine effectiveness.
a.) The refrigerator comes with a custom-designed backpack that can be easily worn by a health worker or even motorcycle mounted.
b.) The refrigerator has an in-built GSM-based IoT system that tracks live vital statistics like temperatures (multiple sensors inside, ambient), location and door opening. This is available for access via an online dashboard that is provided free for the first year’s use with the product, following which a yearly subscription charge will be levied for use. Customer supplies SIM card and SMS gateway services.
c.) Battery Independence time: 12 HRS 18min
