SF - Immunization Devices
Download file
Product Details
Product name
HBD265
IMD-PQS Code
E003-131
Status
Prequalified
Date of acceptance
23 Mar 2023
Appliance type
E003
Product description

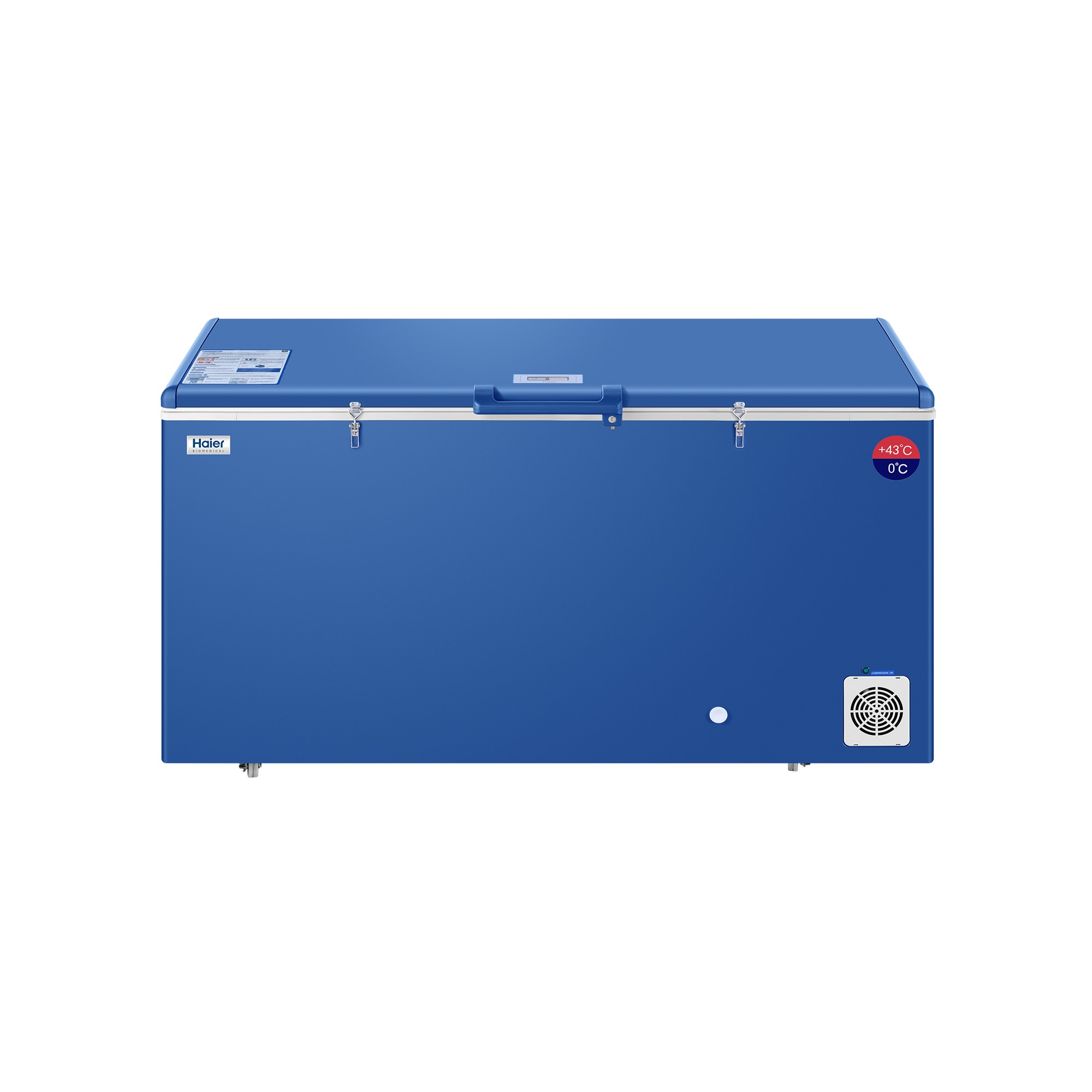

Combined icelined refrigerator/waterpacks freezer
Manufacturer
Qingdao Haier Biomedical Co., Ltd
Manufacturer Reference
HBD265
Country of Manufacture
China
Address
No.280 Fengyuan Road High-tech Zone
Qingdao
Shandong
China
Qingdao
Shandong
China
Telephone
+86-15066227057
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
0.00
Hold over time (hours:mn)
11:25
External dimensions length (mm)
940.00
External dimensions width (mm)
717.00
External dimensions height (mm)
1647.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50/60Hz
Energy Consumption During Freezing (kWh/24h)
1.4000
Energy Consumption Continuous Power (kWh/24h)
1.4200
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
211.000
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer's gross volume (Litres)
265.00
List of accessories
1. Instructions 2. Key 3. Handle component 4. Basket 5. Alcohol thermometer 6. 30 days temperature logger
List of spare parts, Reference & Price
"1 No. Dry filter Part-0074180001
2 No. overload protector 0274300008B
1 No. Switch 0075050003
1 No. Thermo sensor-0274000357A
1 No. Thermostat with sensor 0274000352A
1 No. Compressor-0060705994A
1 No. Fan 0074000172
2 No. Indicator 0075050018
2 No. Displayer 0274000357
1 No. Sticker-0270501015B"
2 No. overload protector 0274300008B
1 No. Switch 0075050003
1 No. Thermo sensor-0274000357A
1 No. Thermostat with sensor 0274000352A
1 No. Compressor-0060705994A
1 No. Fan 0074000172
2 No. Indicator 0075050018
2 No. Displayer 0274000357
1 No. Sticker-0270501015B"
Price and shipping
Shipping volume (m3)
1.4
Shipping weight (kg)
160.00
Price 1
USD 1313
Year of base price
2023
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008
Specification Reference
Applicable PQS specification:
Applicable PQS VP(s):
Applicable PQS VP(s):
Verification
Verification Laboratory
0013X00004Ml8OhQAJ
Verification Report Reference
WB-22-0203
Product Sites
Qingdao Haier Biomedical Co., Ltd
No.280 Fengyuan Road High-tech Zone
Qingdao,
Shandong
266109
China
Document Details
1. Display: Solar LED Temperature Display
2. Low power consumption
