SF - Immunization Devices
Download file
Product Details
Product name

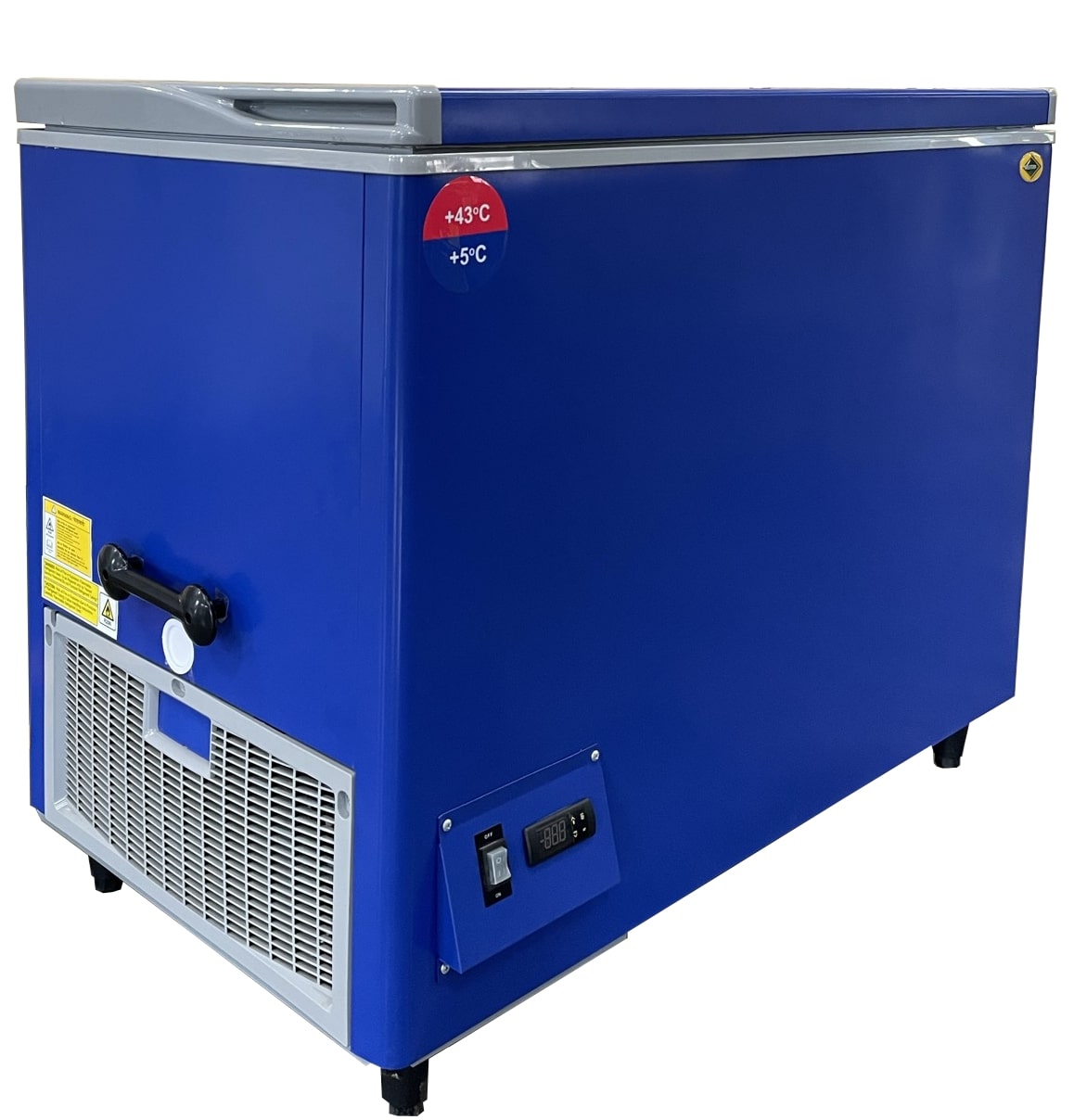

VFW310H-HC
IMD-PQS Code
E003-128
Status
Prequalified
Date of acceptance
07 Jul 2022
Appliance type
E003
Product description
Vaccine/Waterpacks Freezer
Manufacturer
Western Refrigeration Private Limited
Manufacturer Reference
VFW310H-HC
Country of Manufacture
India
Address
7/B, Pannalal Silk Mill Compound, L.B.S. Marg, Bhandup (West), Mumbai 400078. India
India
India
Telephone
+91 22 - 67161200
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Hold over time (hours:mn)
4:00
External dimensions length (mm)
720.00
External dimensions width (mm)
1230.00
External dimensions height (mm)
965.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Electric Mains 220-240V 50Hz
Lining
Regular
Energy Consumption Cool Down (kWh/24h)
2.3200
Energy Consumption Continuous Power (kWh/24h)
2.2700
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
166.000
Refrigerant type
R290
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer type
Low energy compression
Freezer's gross volume (Litres)
317.00
Waterpack freezing capacity (Kg/24 hrs)
28.20
Waterpack storage capacity (Litres)
203.00
Comments
Holdover time: 4 hours
List of accessories
8 Baskets, keys, Steam Alcohol Thermometer (Optional), Instruction Manual
List of spare parts, Reference & Price
1 No Compressor, 1 Condensor motor, 1 No Digital Controller, 1 No Battery for Digital controller, 1 No Transformer for Digital controller, 1 No 2 Pole ON/ OFF switch, 1 No Steam Alcohol Thermometer, 1 No Application Sensor, 1 No Drier and Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.03
Shipping weight (kg)
91.00
Incoterms
EXW
Price 1
1 to 99 Units - 775 USD
Price 2
100 to 200 Units- 685 USD
Year of base price
2022
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2015
Specification Reference
Applicable PQS specification: E003/FZ01.2
Applicable PQS VP(s): E003/FZ01-VP.2
Applicable PQS VP(s): E003/FZ01-VP.2
Verification
Verification Laboratory
UL India Private Limited
Address
A-12, Infocity-1, Sector-34, Gurgaon (Haryana)-122001
India
India
Telephone
+91-8130427334
Email
Verification Report Reference
4789971136-01-OTHERS-S2-R1
Product Sites
Western Refrigeration Private Limited
Survey No 633, 635, 636, 647, 654, 707, 726, 732, 741, 747, 748, and 752 At. Village Tadgam, Tal. Umbergaon, Dist. Valsad, Gujrat, 396135 .
India
