Product Details
Product name
U201
IMD-PQS Code
E003-125
Status
Prequalified
Date of acceptance
25 Feb 2022
Appliance type
E003
Product description

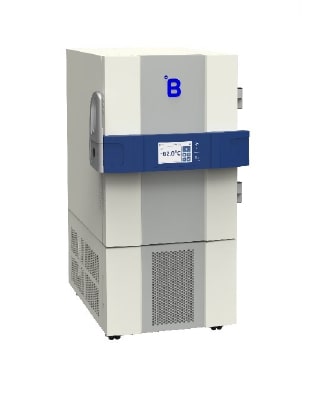

Vaccine Freezer - Ultralow Temperature Storage
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
U201
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
10.00
Hold over time (hours:mn)
1:48
External dimensions length (mm)
1039.00
External dimensions width (mm)
699.00
External dimensions height (mm)
1293.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - absorption
Energy source
230V 50Hz (Option 220V 60Hz)
Energy Consumption Cool Down (kWh/24h)
27.6000
Energy Consumption Continuous Power (kWh/24h)
13.5000
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
143.000
Refrigerator's gross volume (Litres)
214.000
Refrigerant type
R290/R170
Solar radiation ref period (kWh/m2/day)
1.00
Product specifications - Additional Freezer
Freezer net volume
110-200
Freezer's gross volume (Litres)
232.00
Waterpack freezing capacity (Kg/24 hrs)
0.00
Waterpack storage capacity (Litres)
0.00
List of accessories
1 Separate interior door
1 ST-shelf
4 Smooth castors with stabilizers
1 RTMD (Integrated remote temperature-monitoring device)
°B Connected Monitoring Software
1 ST-shelf
4 Smooth castors with stabilizers
1 RTMD (Integrated remote temperature-monitoring device)
°B Connected Monitoring Software
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. GASKET KIT – Part No. 294.3300.07;
1 No. DRIER – Part No. 296.0945.05;
1 No. COMPRESSOR NT2210U AC 230V/50HZ – Part No. 296.9701.58;
1 No. FAN MOTOR EBM – Part No. 296.9759.29;
1 No. PRESSOSTAT KP7EW – Part No. 296.9762.05;
1 No. CLIP-BOX SPARE PART COMPRESSOR – Part No. 292.8003.31
Other parts are available as spares on request.
1 No. GASKET KIT – Part No. 294.3300.07;
1 No. DRIER – Part No. 296.0945.05;
1 No. COMPRESSOR NT2210U AC 230V/50HZ – Part No. 296.9701.58;
1 No. FAN MOTOR EBM – Part No. 296.9759.29;
1 No. PRESSOSTAT KP7EW – Part No. 296.9762.05;
1 No. CLIP-BOX SPARE PART COMPRESSOR – Part No. 292.8003.31
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.2
Shipping weight (kg)
252.00
Incoterms
EXW
Price 1
12,114 €
Year of base price
2024
Quality standard
Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015; ISO 14001:2015
Specification Reference
Applicable PQS specification: E003/ULT01.1
Applicable PQS VP(s): E003/ULT01-VP.1
Applicable PQS VP(s): E003/ULT01-VP.1
Verification
Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
France
Telephone
+33 1 49 84 84 84
Verification Report Reference
WHO 21-04
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Document Details
RTMD with worldwide communication, real time alarms messages for temperature and open door
alerts via SMS / EMAIL, GPS position using Google Maps, access to the webserver performance
monitoring; compliant to WHO PQS E006/TR03.2 with one deviation as this RTMD has no
integrated display (however the freezer has a digital display). This RTMD is exclusively bundled
to B Medical Systems refrigerators / freezers. Includes warranty for 3 years. For more information and further conditions of warranty, please contact B Medical Systems.
Holdover time: 1h0mins from -82°C to -60°C
Freezer vaccine storage capacity: 202 L
