E003-123

SF - Immunization Devices
Download file
E003-123.pdf
E003-123.json
Product Details
Product name

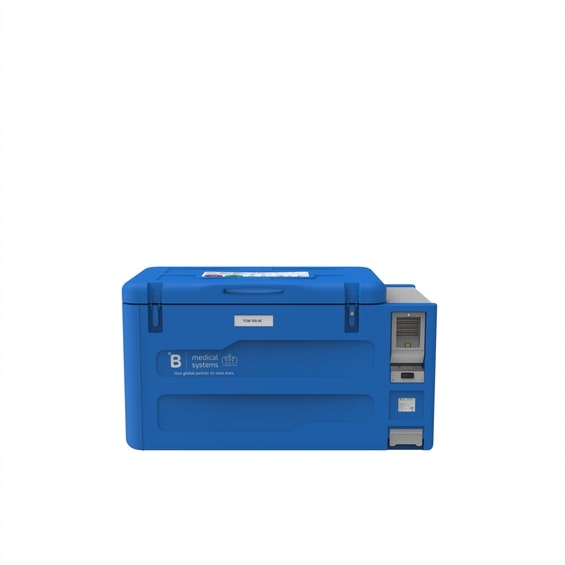

TCW120AC
IMD-PQS Code
E003-123
Status
Prequalified
Date of acceptance
12 Jun 2021
Appliance type
E003
Product description
Combined Vaccine Refrigerator / Waterpack Freezer
Manufacturer
B Medical Systems Sarl
Manufacturer Reference
TCW120AC
Country of Manufacture
Luxembourg
Address
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
Telephone
+ 35 2 92 07 311
Email
info@bmedicalsystems.com
Website address
www.bmedicalsystems.com
Valid until
31 Dec 2025
Specifications

Product specifications - Main

Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
73:54
External dimensions length (mm)
790.00
External dimensions width (mm)
1620.00
External dimensions height (mm)
910.00
Appliance tested at (°C)
43.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
110-240V 50/60Hz
Lining
Ice-lined
Energy Consumption During Freezing (kWh/24h)
1.4100
Energy Consumption Cool Down (kWh/24h)
1.0700
Energy Consumption Continuous Power (kWh/24h)
1.5500

Product specifications - Additional Refrigerator

Refrigerator vaccine storage capacity(L)
120.000
Refrigerator's gross volume (Litres)
153.000
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
1.00

Product specifications - Additional Freezer

Freezer net volume
<50L
Freezer's gross volume (Litres)
28.00
Waterpack freezing capacity (Kg/24 hrs)
1.60
Waterpack storage capacity (Litres)
13.20
Comments
Includes for the duration of the warranty period contractually agreed: the B Medical Systems RTMD with worldwide communication, real time alarms messages for temperature and open door alerts via SMS / EMAIL, GPS position using Google Maps, access to the webserver performance monitoring; compliant to WHO PQS E006/TR03.2 with one deviation as this RTMD has no integrated display (however the refrigerator has a digital display). This RTMD is exclusively bundled to B Medical Systems refrigerators / freezers. Includes warranty for 5 years. For more information and further conditions of warranty, please contact B Medical Systems. Bmedical fully integrated automatic voltage stabilization solution, which operates the ILR for any voltage in between 90VAC and 290VAC. It protects the ILR from over and under voltage as well as from surges and spikes required by PQS for AVS.

Freezing capacity range: < 5 kg/24h
Range vaccine storage capacity: 90L - 150L
Waterpack storage capacity: 22 x 0,6L
List of accessories
4 vaccine storage baskets
lockable lid
2 spacers
22 waterpacks of 0.6L
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:

1 No. Compressor BD35K - Part No. 296.9702.09
1 No. E-BOX BD35K Solar - Part No. 296.9705.32
1 No. Electronic Thermostat Controller - Part No. 296.9768.68
1 No. Fan (12V, 4.3W) - Part No. 292.9960.13
1 No. Drier - Part No. 296.0945.04
1 No. Controller Display Board - Part No. 296.9769.91
1 No. Sensor - Part No. 296.9805.06

Other parts available as spares on request.

Price and shipping

Shipping volume (m3)
1.39
Shipping weight (kg)
188.00
Incoterms
EXW
Price 1
>100 pcs : 4339 Euros
Year of base price
2025

Quality standard

Quality Standard
ISO 13485;Other
Quality standard (Other)
ISO 9001:2015, ISO 14001:2015
Specification Reference
Applicable PQS specification: E003/RF03.4
Applicable PQS VP(s):

Verification

Verification Laboratory
CEMAFROID SAS
Address
5 Avenue des Pres CS 20029 F94 266 Fresnes Cedex France
France
Telephone
+33 1 49 84 84 84
Email
gerald.cavalier@cemafroid.fr
Verification Report Reference
WHO 21-02
Product Sites
B Medical Systems Sarl
17 Op der Hei L-9809 Hosingen Luxembourg
Luxembourg
