Product Details

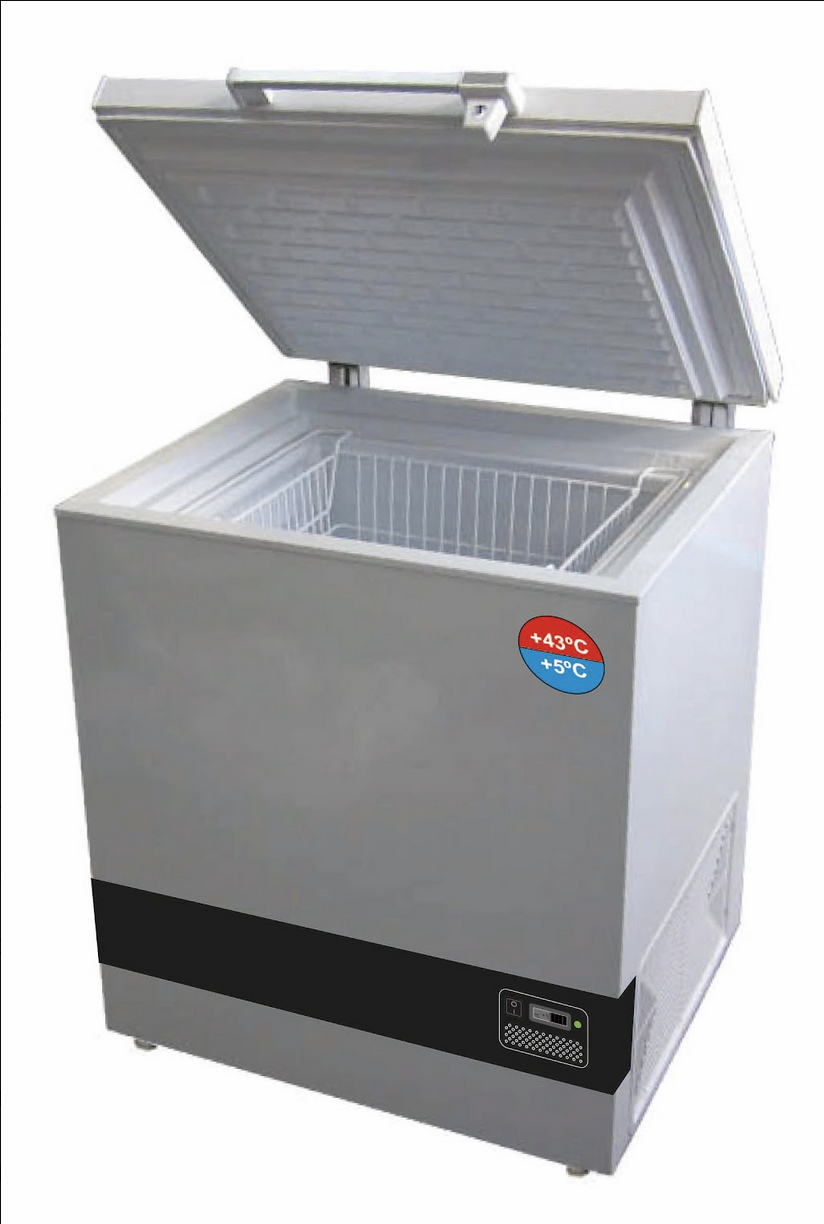

Product name
VLS 054Ae SDD
IMD-PQS Code
E003-106e
Status
Prequalified
Date of acceptance
10 Feb 2019
Appliance type
E003
Product description
Solar direct drive refrigerator EMS Level 2
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VLS 054Ae SDD
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 May 2027
Specifications
Product specifications - Main
Climate zone
Hot
Minimum rated ambient temperature (°C)
5.00
Freeze protection
Grade A
Hold over time (hours:mn)
89:32
External dimensions length (mm)
600.00
External dimensions width (mm)
720.00
External dimensions height (mm)
850.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Energy source
Solar direct drive
Lining
Ice-lined
Energy Consumption Cool Down (kWh/24h)
0.6900
Energy Consumption Continuous Power (kWh/24h)
0.3500
Product specifications - Additional Refrigerator
Refrigerator vaccine storage capacity(L)
55.500
Refrigerator's gross volume (Litres)
108.000
Autonomy (hrs:mn)
89:32
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
List of accessories
Vaccine storage top basket; Bottom grating; 30 day electronic temperature logger; Self-regulating temperature control; Electronic temperature reading; 2 x Keys; Instruction manual in 6 UN languages; Technical manual in 6 UN languages; Plywood packing/crate
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor (BD 35K) Complete R600a Incl. ECU - Part No. 8-036510223
1 No. Thermostat - Part No. 702090044
1 No. Fan Set (KD1208PTB3) 12 V DC Part No. 7090486
1 No. Thermometer, solar, Part No.7020382-03
1 No. Compressor (BD 35K) Complete R600a Incl. ECU - Part No. 8-036510223
1 No. Thermostat - Part No. 702090044
1 No. Fan Set (KD1208PTB3) 12 V DC Part No. 7090486
1 No. Thermometer, solar, Part No.7020382-03
Price and shipping
Shipping volume (m3)
0.65
Shipping weight (kg)
85.00
Incoterms
FCA
Price 1
1-99 units: 3,107 €
Price 2
100-199 units: 2.882 €
Year of base price
2016
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008;ISO 14001;DS/OHSAS 18001:2008
Specification Reference
Applicable PQS specification: E003/RF05.5
Applicable PQS VP(s): E003/RF05-VP.4
Applicable PQS VP(s): E003/RF05-VP.4
Verification
Verification Report Reference
100918190MKS-001 issue 2
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details
Prices include Vestfrost Solutions SDD PV energy kit comprising of PV panels, roof adjustable bracket system, plug & play installation.
Unit equipped with unique QR code that can be used with Vestfrost Solutions Unit tracker APP, containing various installation/service features.
As an option the appliance can be supplied with Vestfrost in-built RTMD; with following features:
1: 5” touch display 2: 3X internal temp. sensors 3: ambient temp. 4: compressor sensor 5: humidity sensor 6: lid opening alarm 7: GPS coordinates via Google maps 8: 1X USB 5V solar harvesting port. All data collected/logged is automatic via GPRS uploaded to Vestfrost RTMD performance data-portal, and/or can be accessed onsite from the touch screen menu.
Range of holdover time: 51 - 100 hours
Range vaccine storage capacity: 25L - 60L
