SF - Immunization Devices
Download file
Product Details
Product name
VFS 048 SDD
IMD-PQS Code
E003-099
Status
Prequalified
Date of acceptance
23 Nov 2018
Appliance type
E003
Product description

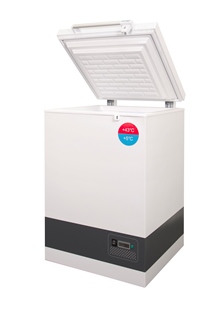

Solar Direct Drive Waterpacks Freezer
Manufacturer
Vestfrost Solutions
Manufacturer Reference
VFS 048 SDD
Country of Manufacture
Denmark
Address
A/S Vestfrost Falkevej 12
Esbjerg Ø
Syddanmark
Denmark
Esbjerg Ø
Syddanmark
Denmark
Telephone
+45 7914 2527
Website address
Valid until
31 May 2026
Specifications
Product specifications - Main
Minimum rated ambient temperature (°C)
5.00
External dimensions length (mm)
650.00
External dimensions width (mm)
555.00
External dimensions height (mm)
850.00
Performance at" (°C)
43.00
Fuel and refrigeration cycle
Electric - compression
Product specifications - Additional Refrigerator
Refrigerant type
R600a
Solar radiation ref period (kWh/m2/day)
3.50
Product specifications - Additional Freezer
Freezer's gross volume (Litres)
34.30
Waterpack freezing capacity (Kg/24 hrs)
1.60
Waterpack storage capacity (Litres)
17.40
List of accessories
Self-regulating temperature control.
Electronic temperature reading. Locking lid + keys. Manual in 6 languages.
Plywood packing
Electronic temperature reading. Locking lid + keys. Manual in 6 languages.
Plywood packing
List of spare parts, Reference & Price
Included in the UNICEF Supply Division spare parts kit:
1 No. Compressor -1 10-45 V - Part No. 8-036510223
1 No. Thermostat (K-54-L2021 Ranco) - Part No. 6520038
1 No Electronic control unit - Part No. 6520845 (incl. in compressor)
1 No. Fan - Part No. 7030823
1 No. Thermometer - Part No. 7020287-03
Other parts are available as spares on request.
1 No. Compressor -1 10-45 V - Part No. 8-036510223
1 No. Thermostat (K-54-L2021 Ranco) - Part No. 6520038
1 No Electronic control unit - Part No. 6520845 (incl. in compressor)
1 No. Fan - Part No. 7030823
1 No. Thermometer - Part No. 7020287-03
Other parts are available as spares on request.
Price and shipping
Shipping volume (m3)
1.42
Shipping weight (kg)
167.00
Incoterms
EXW
Price 1
1-99 units: 2.635€
Year of base price
2018
Quality standard
Quality Standard
Other
Quality standard (Other)
ISO 9001:2008;ISO 14001
Specification Reference
Applicable PQS specification: E003/FZ03.1
Applicable PQS VP(s): E003/FZ03-VP.1
Applicable PQS VP(s): E003/FZ03-VP.1
Verification
Verification Laboratory
Danish Technological Institute
Address
Gregersensvej DK-2630 Taastrup Danemark
Denmark
Denmark
Telephone
+45 72202472
Verification Report Reference
300-KLAB-17-118
Product Sites
Vestfrost Solutions
A/S Vestfrost Falkevej 12
Esbjerg Ø,
Syddanmark
DK-6705
Denmark
Document Details

Energy requirements: 12V DC solar electric array. 360W radiation reference period
3.5kWh/m2/day.
Stated shipping volume and weight, incl. complete Solar Energy System
Freezer net volume: < 50 L
Range waterpack storage capacity: 20 - 100L
Waterpack freezing capacity: 1.6 kg/24 h
Waterpack storage capacity: 29 X0.6 L
